Electrics Electrics
Harness Data
Harness Data
Section C Section C
9803/3280 Issue 2*
153 - 2
153 - 2

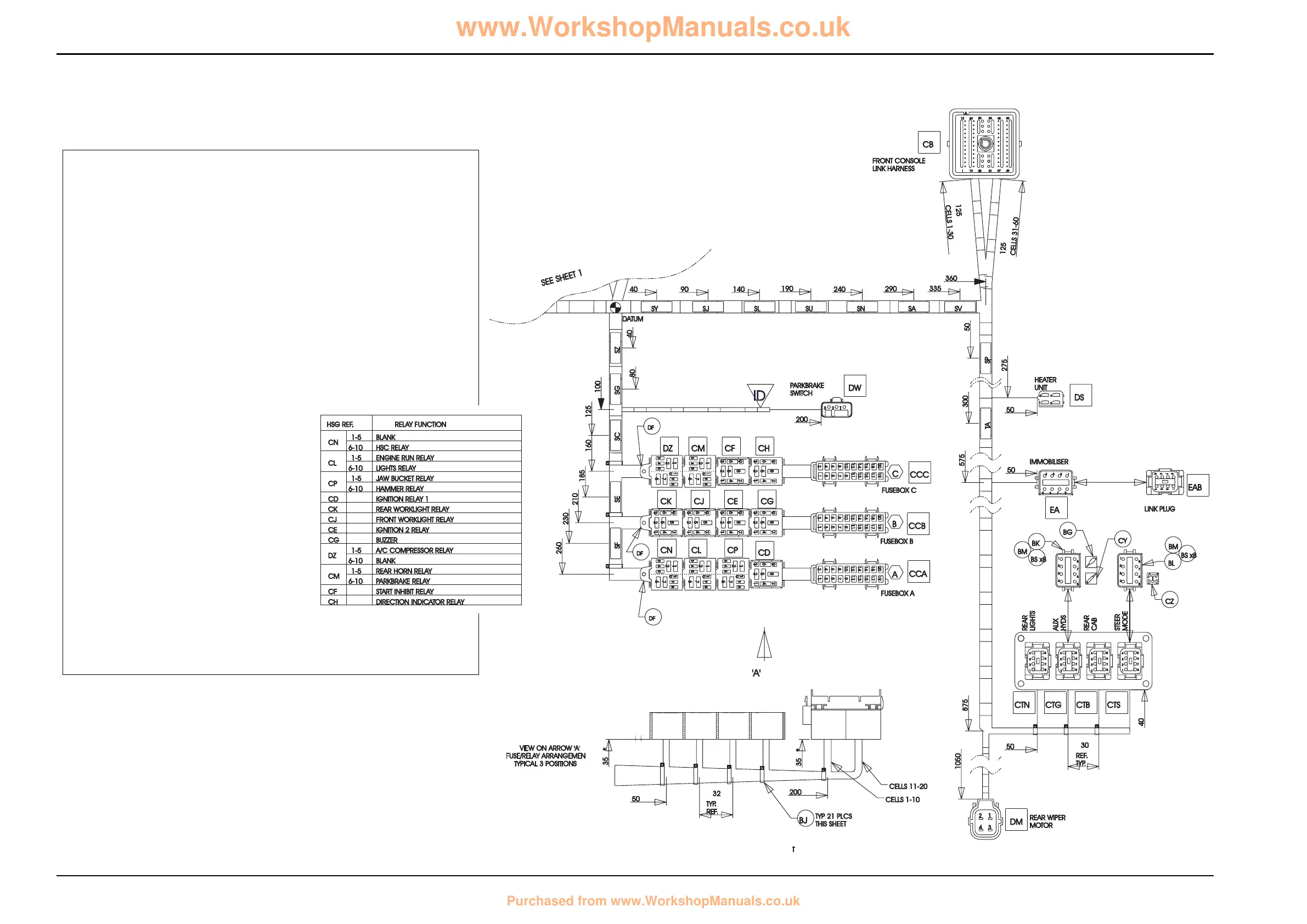

Harness Drawing - Side Console, page 2 of 4* - CAD 721/10936 Issue 1
(Machines up to serial no. 933756)
Key to Connectors:
CA Mainframe Plug
CB Cab Link
CCA Fuse Box A
CCB Fuse Box B
CCC Fuse Box C
CD Ignition 1
CE Ignition 2
CF Start Inhibit
CG Buzzer
CH Direct Relay
CJ Front Worklingt Relay
CK Rear Worklight Relay
CL Engine Run Relay
Lights
CM Rear Horn
Park Brake Relay
CN Blank
HSC Relay
CP Jaw Bucket Relay
Hammer
CR Cab Roof
CS Headliner
CT Rear Cab Bulkhead
CU Ignition Switch
CV Instrument Panel
CW Fuel Gauge
CWA Fuel Gauge Illumination
CX Water Temperature Gauge
CXA Water Temperature Illumination
CY Tachometer
CYA Tachometer Illumination
CYB Tachometer Illumination
CZ Radio Cassette
DA Radio Speaker
DB Heater Controls
DBA Heater Jumper
DC Front Worklight Switch
DD Beacon Switch
DE HSE Switch
DF SRS Switch
DG Shovel Reset
DH Rear Worklight Switch
DJ Rear Wash/Wipe Switch
DK Auxiliary Hydraulic Switch
DL Hydraclamp Switch
DM Rear Wiper
DN Worklight Diode
DP Worklight Connector
DPA Worklight Connector
DR Earth Ring
DS Heater Unit
DT Diode Gate
DV PSS Buzzer
DW Park Brake
DX Cigar Lighter
DY Dallas Key
DZ A/C Compressor Relay
Blank
EA Immobiliser
EAB Link
To Next Page
