Transmission
9803/3280 Issue 2*
27-2 27-2
Systems Description
Section F Section F
Synchro Shuttle Gearbox
2/4 Wheel Drive Clutch Operation
- Pressure ON/Spring OFF Type (cont’d)

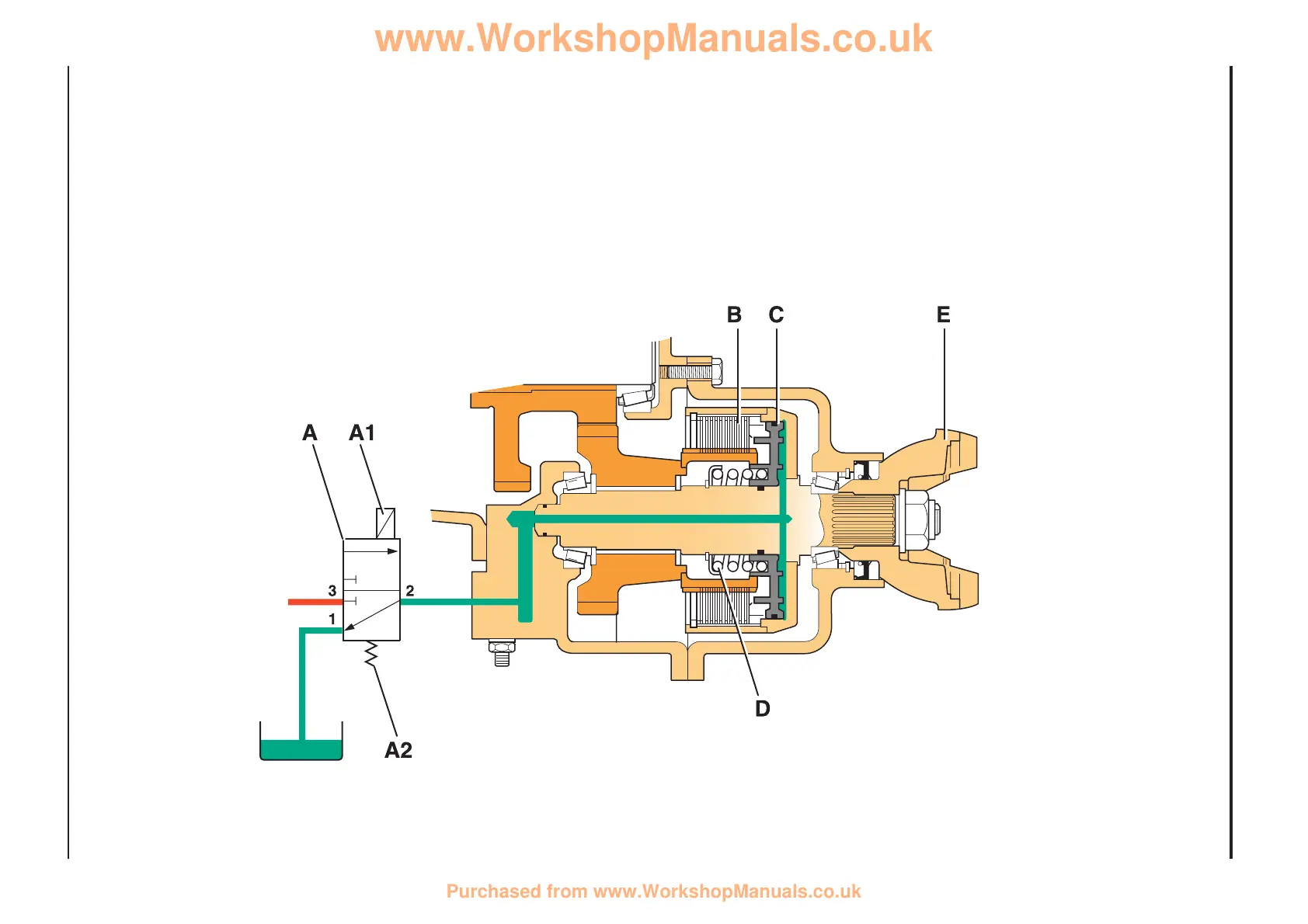

2 Wheel Drive Operation
When the switch is in the 2 wheel drive position,
solenoid valve A is de-energised. With the solenoid
A1 de-energised, the valve spool moves under the
force of the spring A2. The oil supply to the piston
C is blocked (shown at port 3). At the same time oil
vents from the back of piston C to the sump via
ports 1 and 2.
Because there is no pressure behind piston C,the
friction/counter plates of clutch pack B now freely
rotate on the output shaft, thus disengaging drive
to the front axle.
