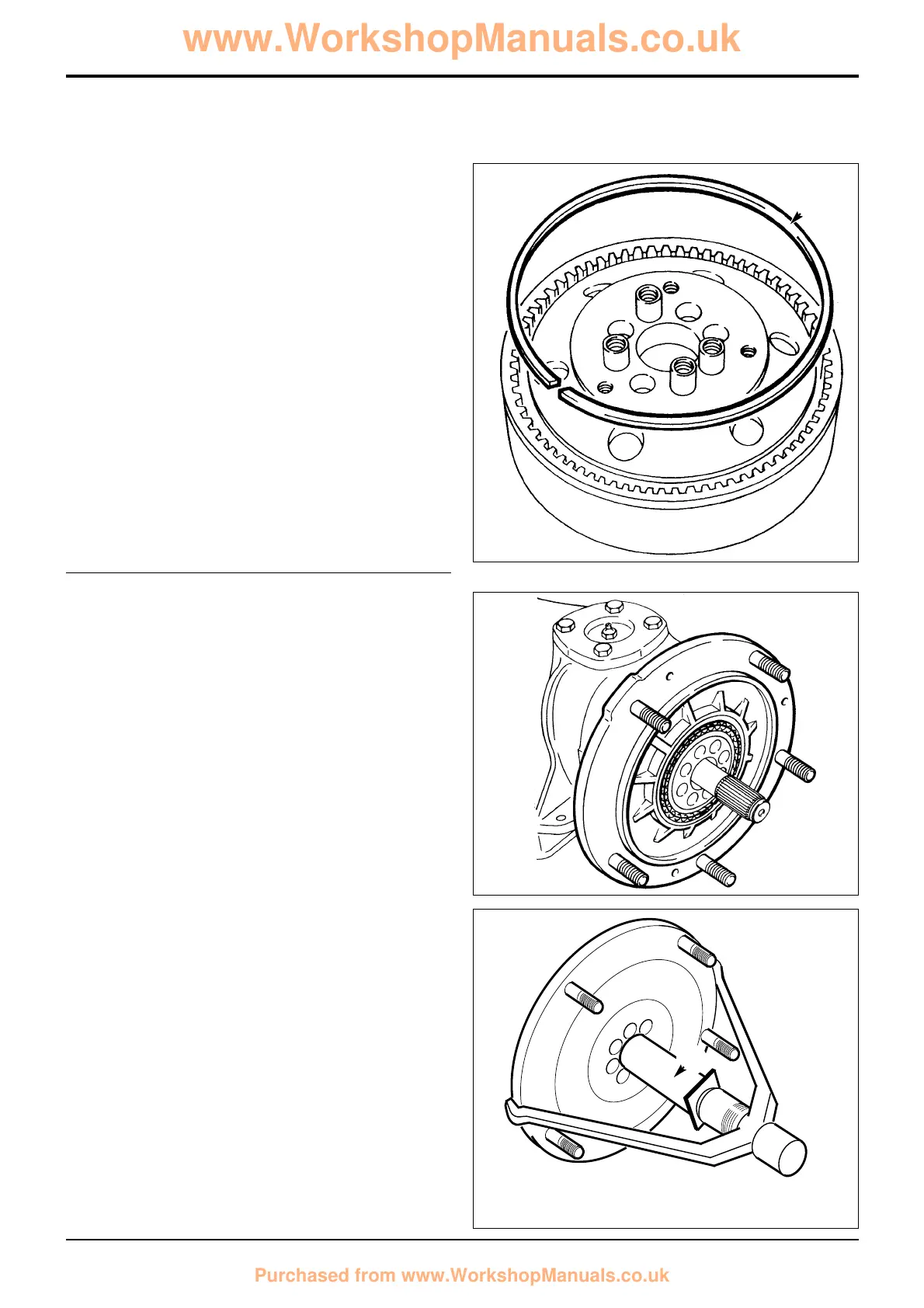

12 Remove circlip G to separate the annulus ring from the
annulus carrier.
13 Pull off the bearing carrier together with the outer
bearing cone and its bearing cup. Withdraw the inner
bearing cup from the inboard side of the carrier.
Note: To prevent damaging the axle case inner seal, do not
lever against the half shaft. Place a tube over the half shaft
and lever against the tube, as shown at X.
Hub and Driveshaft - Dismantling (cont'd)
81 - 3
Section F Transmission
9803/3280
Section F
81 - 3
Issue 1
Front Axle - SD55, SD70
S248910
S248920
A258390
G
X
