Service Tools (continued)
SECTION E - HYDRAULICS
Slew Motor Unit - JS130

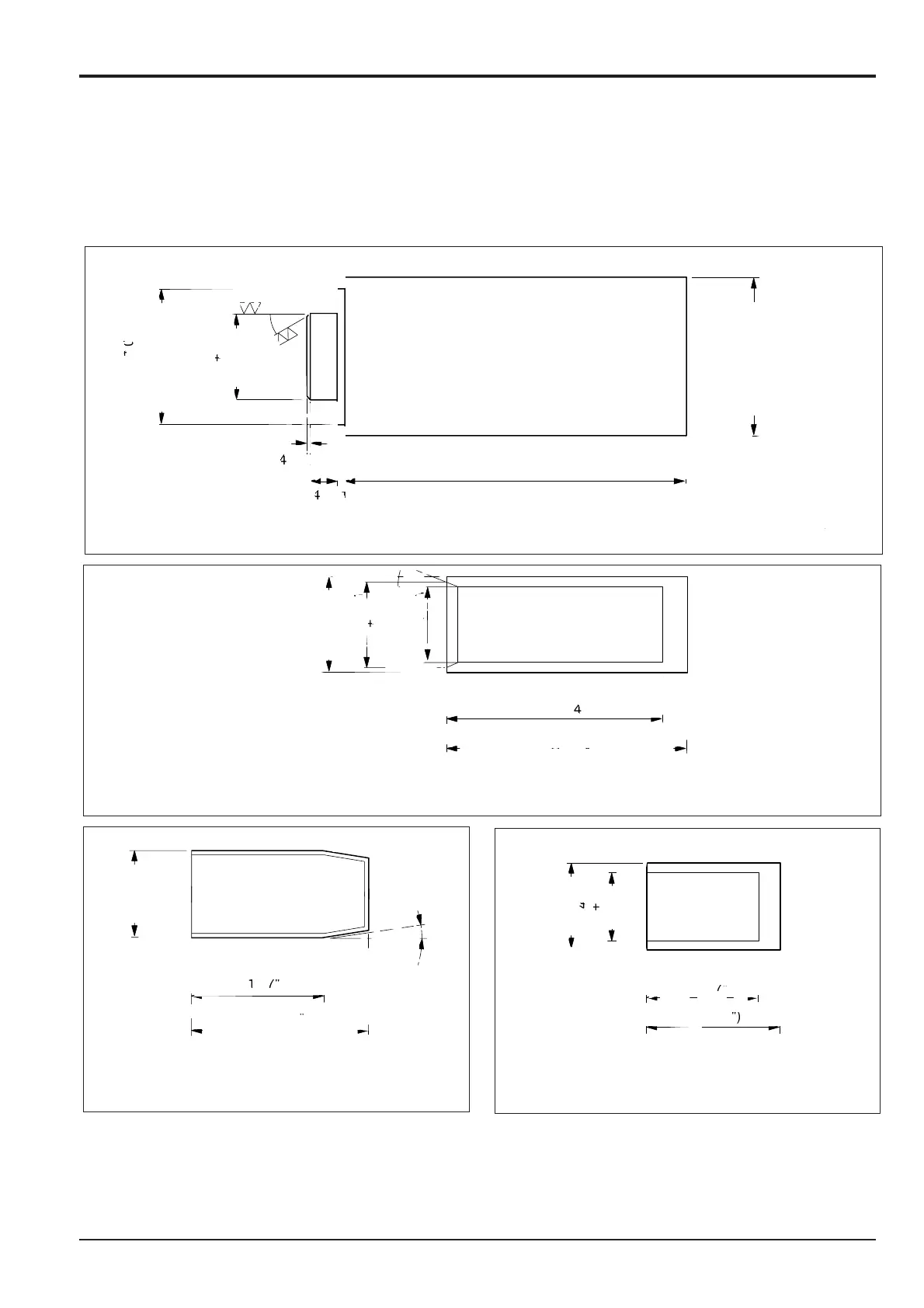

Seal Fitting Tool (Oil Seal 2)
JS07110
30
o
155 (6.10")
2 (0.079")
14 (0.55")
4 (0.16")
¿38. 0.2
(1.50" 0.008)
+
-
+
-
¿61. 0.2
(2.40" 0.008)
+
-
+
-
¿70 (2.76")
Fitting Tool for Inner Ring of Taper Roller Bearing 3
¿42 (1.65")
JS07120
100 (3.94")
110 (4.33")
¿32.2. 0.1
(¿1.27 0.004)
+
-
+
-
¿35.5. 0.1
(¿1.40 0.004)
+
-
+
-
Seal Protector
Heat polyvinyl tube in hot water and form to required shape.
¿38 (1.50")
50 (1.97")
80 (3.15")
5
o
JS07130
Fitting Tool for Inner Ring 1
¿40 (1.57")
JS07140
¿31.4 0.1
(1.24" 0.004)
+
-
+
-
50 (1.97")
60 (2.36")
