41 - 3
Section E Hydraulics
9803/6410
Section E
41 - 3
Issue 1
Remote Control Valve (Services)
Dismantling and Assembly (cont’d)
Assembly
The numerical sequence given previously is a guide to
dismantling. For assembly the sequence should be reversed
noting the following details:

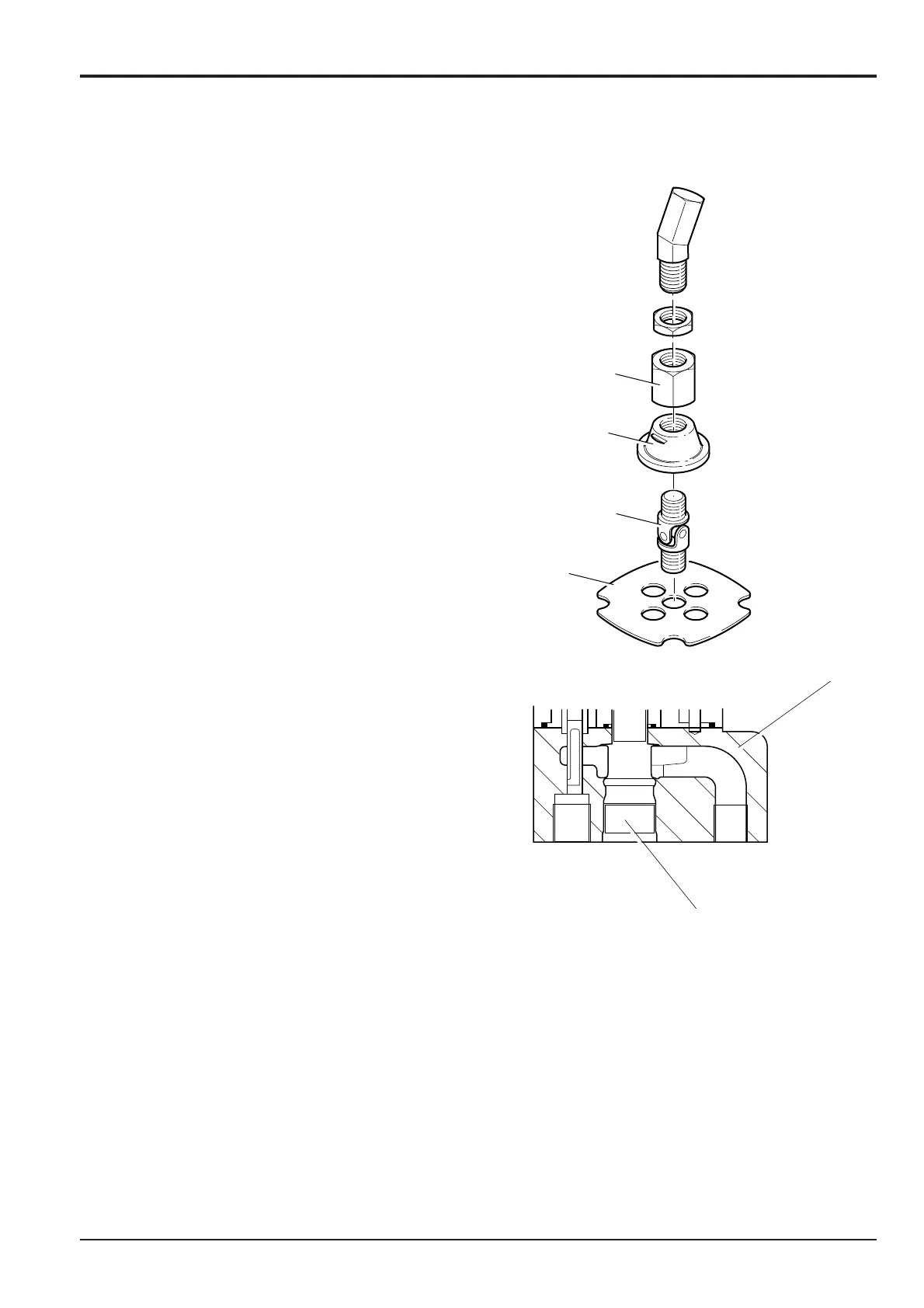

1 Locate retaining plate 18 onto plunger guides 8 and
using the jig, screw knuckle joint into position. Torque
tighten to 30 Nm (3 kgf m, 22 lbf ft).
2 Locate rocker plate 25 and torque tighten to 30 Nm (3
kgf m, 22 lbf ft), until it makes contact with the plungers
11. Ensure the plungers are not depressed at this stage.
3 Holding the rocker plate 25 in its position, screw down
joint nut 24. Torque tighten to 30 Nm (3 kgf m, 22 lbf ft).
4 When fitting the body assembly screw 6 torque tighten
to 40 Nm (4 kgf m, 29.5 lbf ft).
