Dipper Ram - Removal (cont’d)

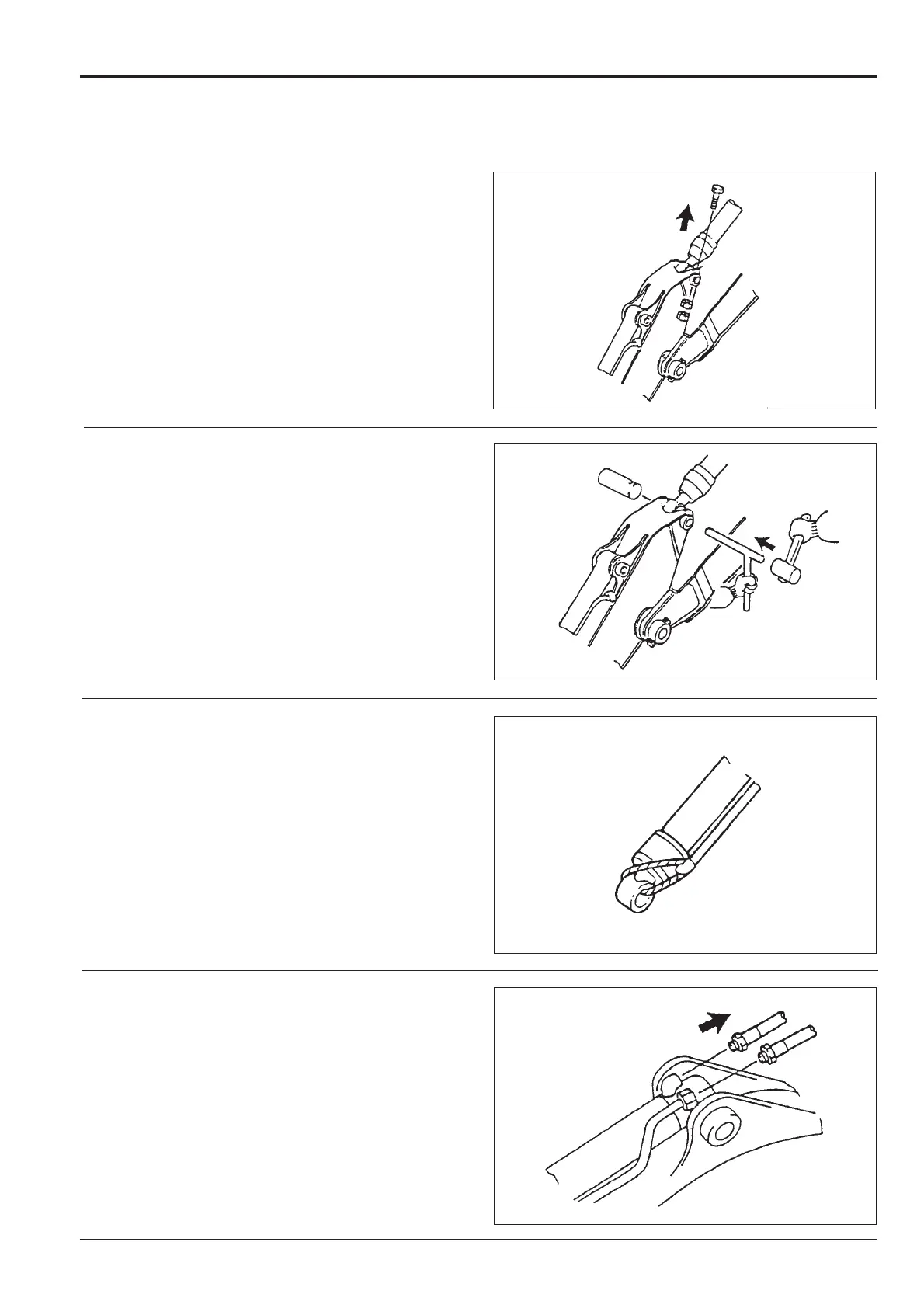

4 Remove the nuts and bolts from the rod end of the ram.
5 Push out the pin, using a bar and hammer.
!!
WARNING
Metal Splinters
You can be injured by flying metal splinters when driving
metal pins in or out. Use a soft faced hammer or drift to
remove and fit metal pins. Always wear safety glasses.
INT-3-1-3
6 Restrain the eye end of the ram piston rod to the ram
cylinder to prevent the piston rod from extending.
7 Remove the ram hoses, and install plugs or caps to
prevent contamination.
73 - 2
Section E Hydraulics
9803/6410
