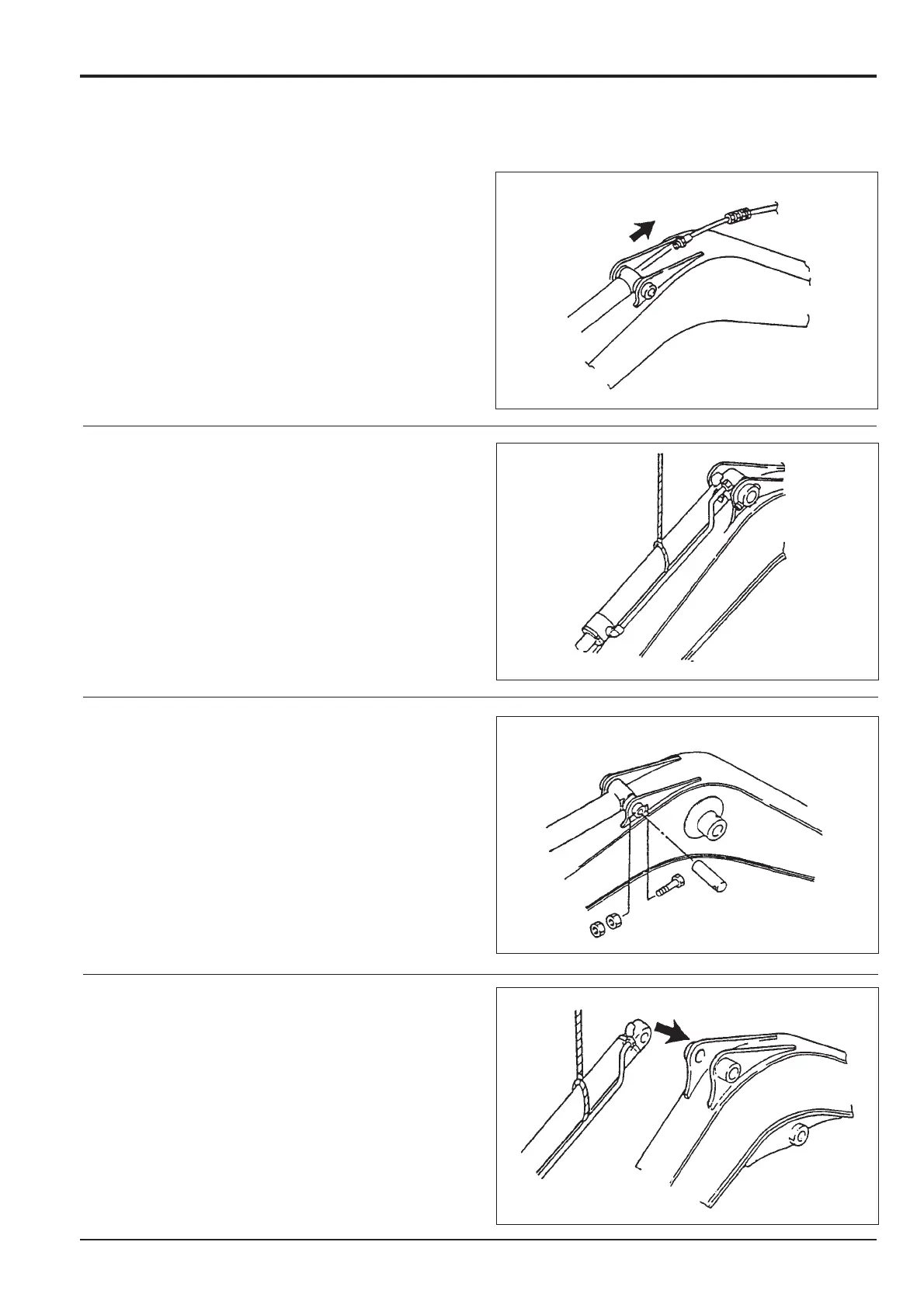

Dipper Ram - Removal (cont’d)
8 Remove the grease tube.
9 Attach a sling to support the ram.
10 Remove the nuts and bolts from the cylinder end of the
ram, push out the pin using a bar and hammer. Lift the
ram clear.
!!
WARNING
Metal Splinters
You can be injured by flying metal splinters when driving
metal pins in or out. Use a soft faced hammer or drift to
remove and fit metal pins. Always wear safety glasses.
INT-3-1-3
Dipper Ram - Replacement
1 Attach a sling and lift the ram onto the boom.
73 - 3
Section E Hydraulics
9803/6410
Section E
73 - 3
Issue 1
Hydraulic Rams
