Boom Ram - Removal (cont’d)

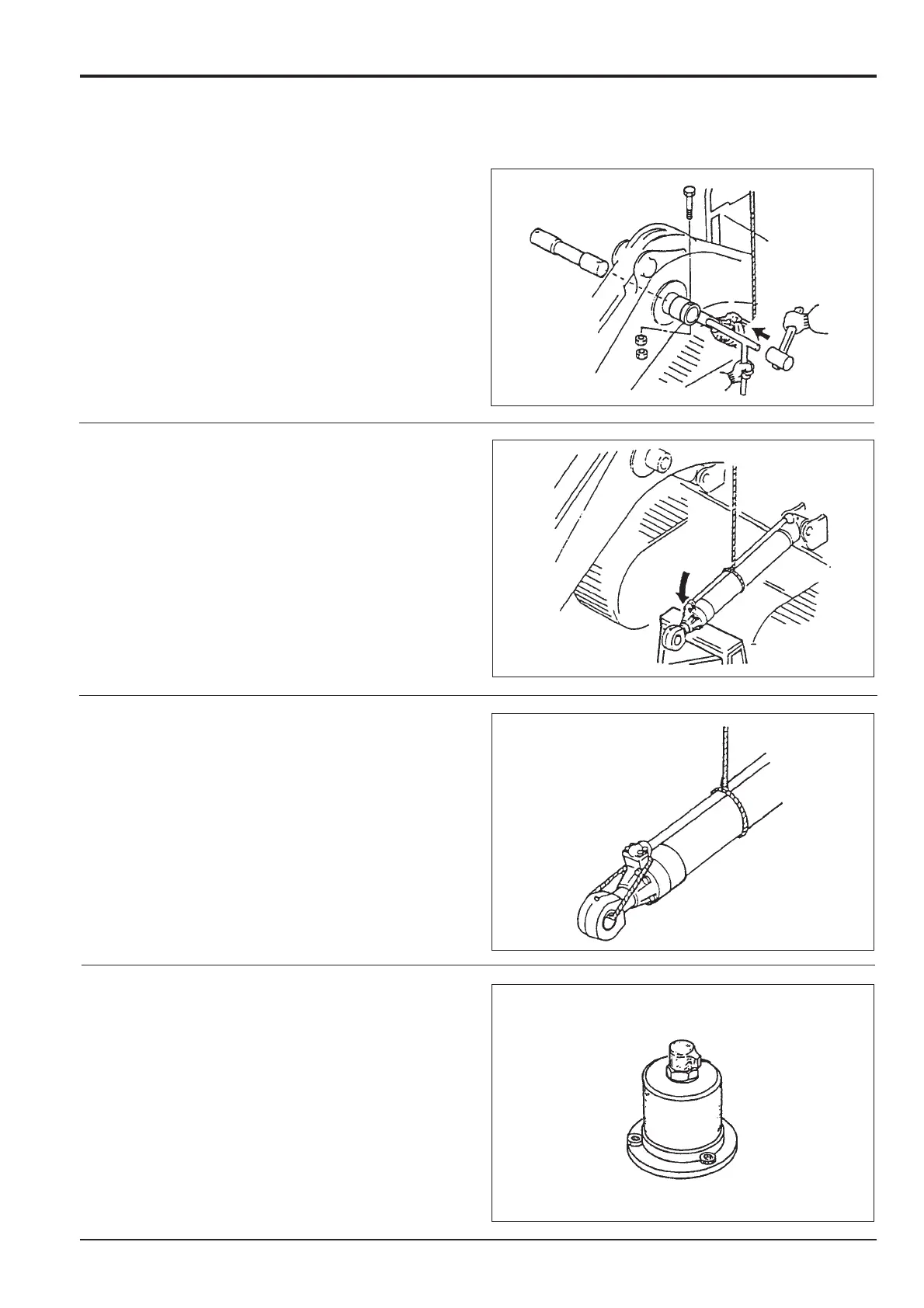

4aRemove the nuts, bolt and collar.
b Push out the pin, using a bar and hammer.
!!
WARNING
Metal Splinters
You can be injured by flying metal splinters when driving
metal pins in or out. Use a soft faced hammer or drift to
remove and fit metal pins. Always wear safety glasses.
INT-3-1-3
5 Lower the ram and place it on a stand.
6 Restrain the eye end of the piston rod to the ram
cylinder, to prevent movement of the rod.
7. Release the tank pressure (see Releasing the Tank
Pressure).
74 - 2
Section E Hydraulics
9803/6410
Section E
74 - 2
Issue 1
Hydraulic Rams
To Next Page
