Boom Ram - Removal (cont’d)

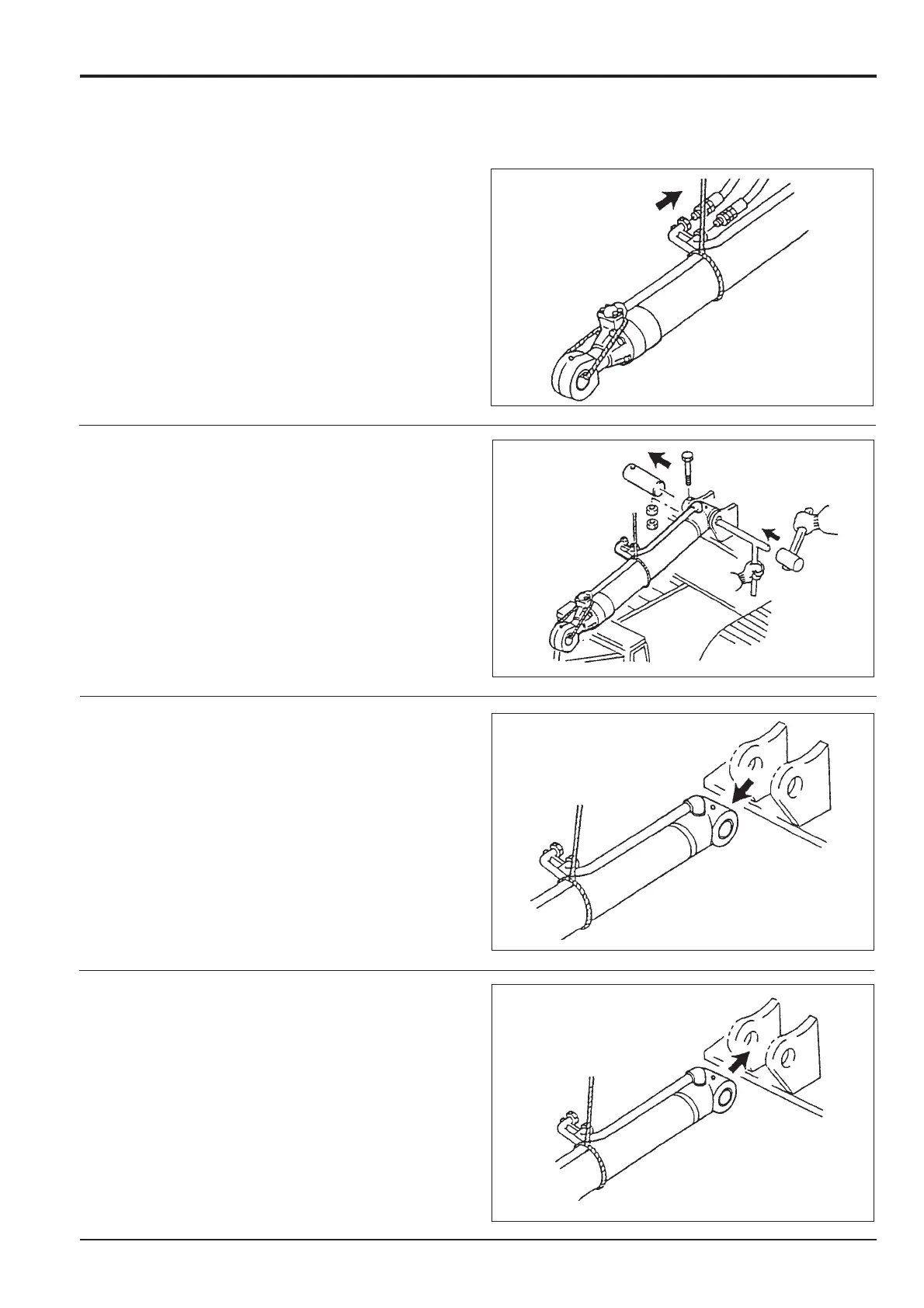

8 Remove the hoses, and install plugs or caps to prevent
contamination.
9 Remove the nut and bolt and push out the pin with a
hammer and bar.
!!
WARNING
Metal Splinters
You can be injured by flying metal splinters when driving
metal pins in or out. Use a soft faced hammer or drift to
remove and fit metal pins. Always wear safety glasses.
INT-3-1-3
10 Lift the ram away from the unit.
Boom Ram - Replacement
1 Attach a sling to the ram.
Align the ram to its installation position.
74 - 3
Section E Hydraulics
9803/6410
Section E
74 - 3
Issue 1
Hydraulic Rams
