Boom Ram - Replacement (cont’d)

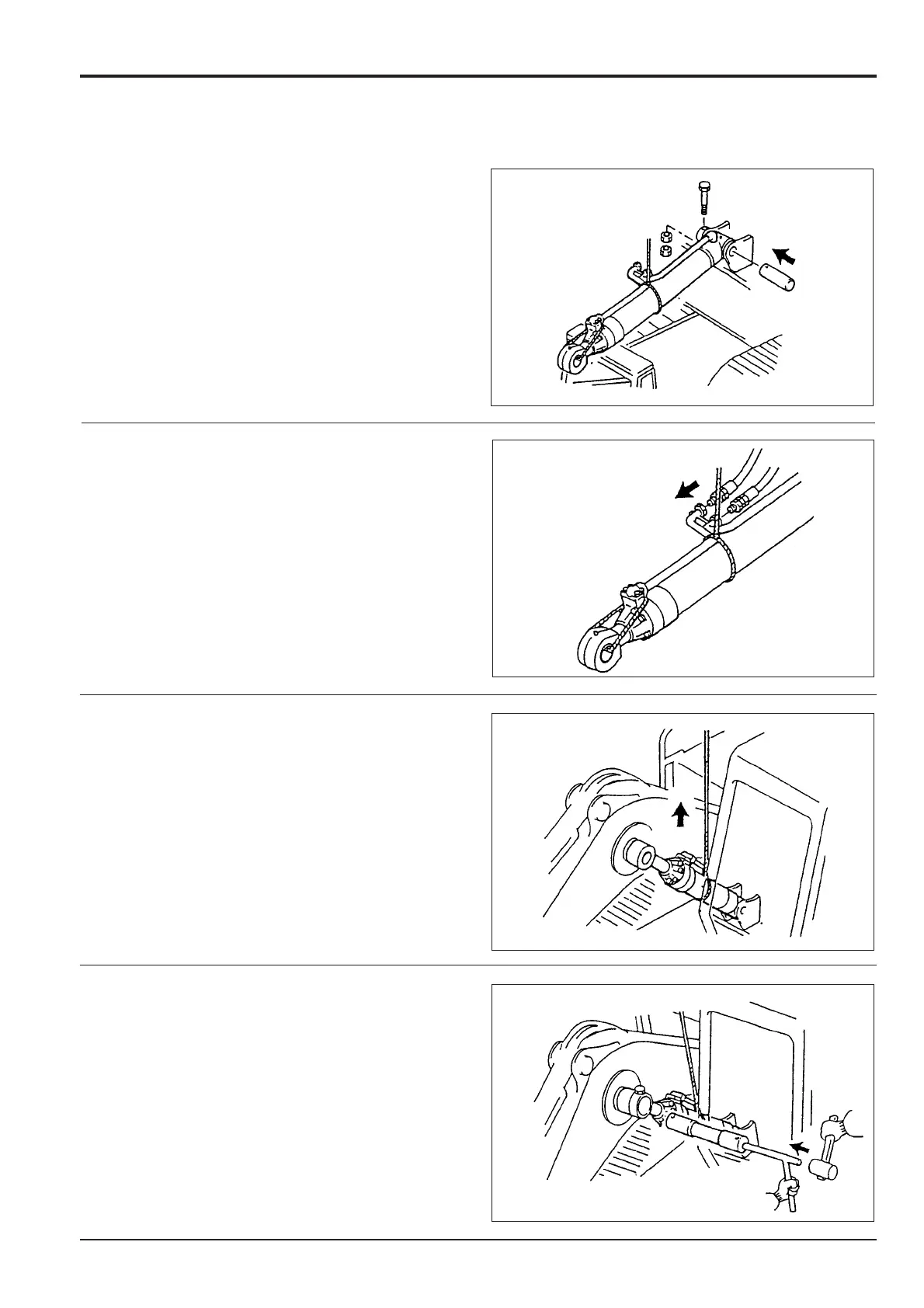

2 Install the pin and then the bolt and nuts.
!!
WARNING
Metal Splinters
You can be injured by flying metal splinters when driving
metal pins in or out. Use a soft faced hammer or drift to
remove and fit metal pins. Always wear safety glasses.
INT-3-1-3
3 Install the hoses.
4 Lift the ram and align the rod eye end with the pin
position.
5 Install the pin with a bar and hammer.
!!
WARNING
Metal Splinters
You can be injured by flying metal splinters when driving
metal pins in or out. Use a soft faced hammer or drift to
remove and fit metal pins. Always wear safety glasses.
INT-3-1-3
74 - 4
Section E Hydraulics
9803/6410
Section E
74 - 4
Issue 1
Hydraulic Rams
