77 - 12
Section E Hydraulics
9803/6410
Section E
77 - 12
Issue 1
Hydraulic Rams
Reconditioning (cont’d)
Cylinder Head Assembly
Handle the piston rod with care to prevent damage to its
outer surface.
Position the piston rod so that the threaded part is facing
you.
Ensure that the piston rod thread and shaft are free from
damage by dust or other foreign matter.

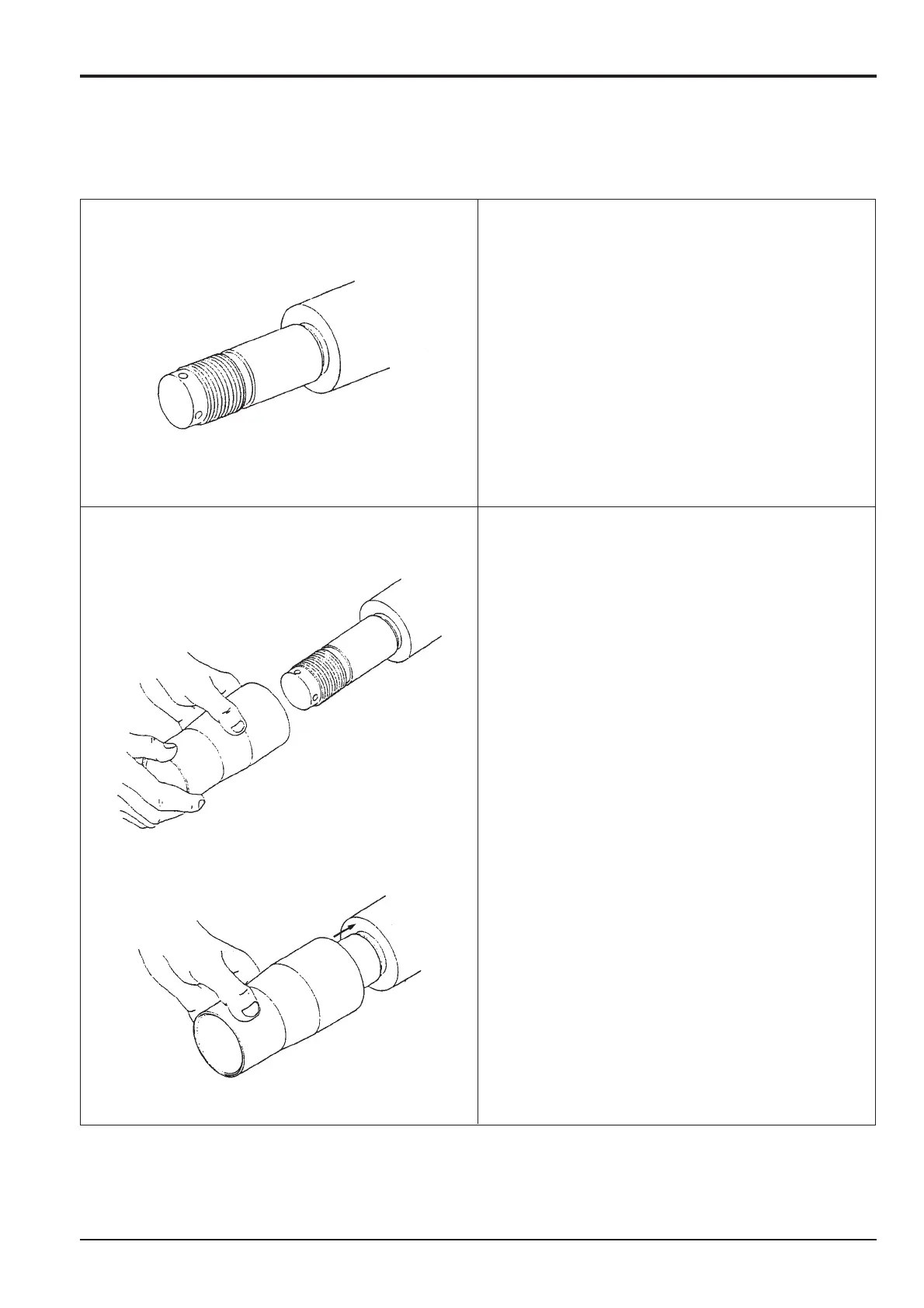

Locate the guide onto the piston rod, to the end of the
shaft as shown. Take care not to damage the piston
thread.
1 Fixing the piston rod
2 Attaching guide
JS02290
To Next Page
