Reconditioning (cont’d)
Wiper Ring Assembly (cont’d)
77 - 11
Section E Hydraulics
9803/6410
Section E
77 - 11
Issue 1
Hydraulic Rams

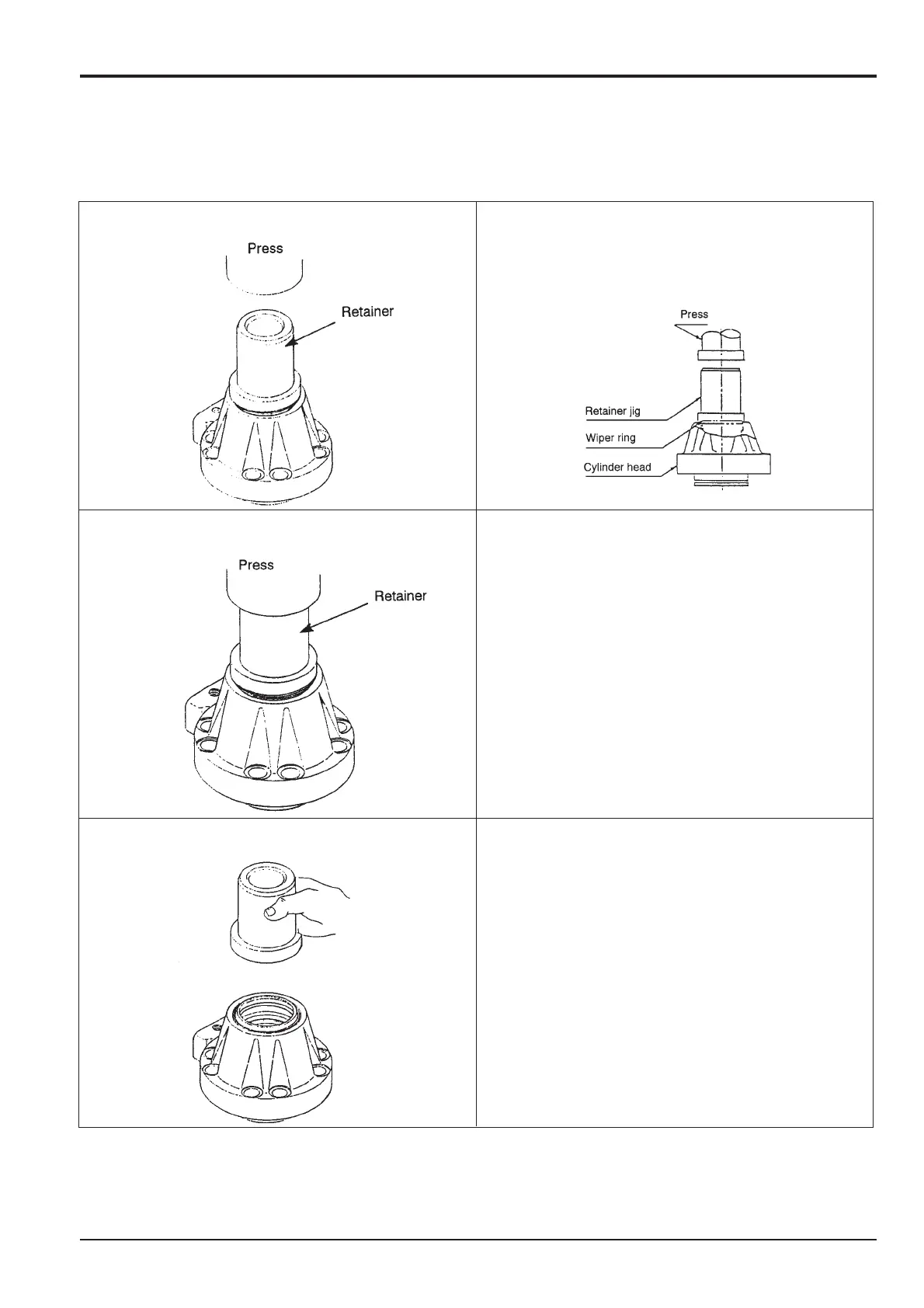

Position the cylinder head and retainer underneath the
press.
Adjust so that the shaft centre of the press and retainer
are in line as shown.
Press-fit the wiper ring into the specified position in the
cylinder head.
Press fit until the retainer's collar contacts the cylinder
head.
The press load should be less than 1 tonne.
After the wiper ring press-fitting is completed, remove the
retainer from the cylinder head.
Check that the wiper ring is correctly in position.
4 Preparation for press-fitting
5 Press-fitting wiper ring
6 Removing the retainer
JS02270
JS02280
