Reconditioning (cont’d)
Wiper Ring Assembly
77 - 10
Section E Hydraulics
9803/6410
Section E
77 - 10
Issue 1
Hydraulic Rams
Note: Keep the work bench clean so that no dust or other
foreign matter can damage the bottom surface of the
cylinder head.
Position the cylinder head on the work bench as shown.
Check that there is no foreign matter in the groove where
the wiper ring or the retainer is to be inserted.
Insert the wiper ring into the groove in the retainer, lip side
first as shown.
Gently place the retainer on the cylinder head as shown.

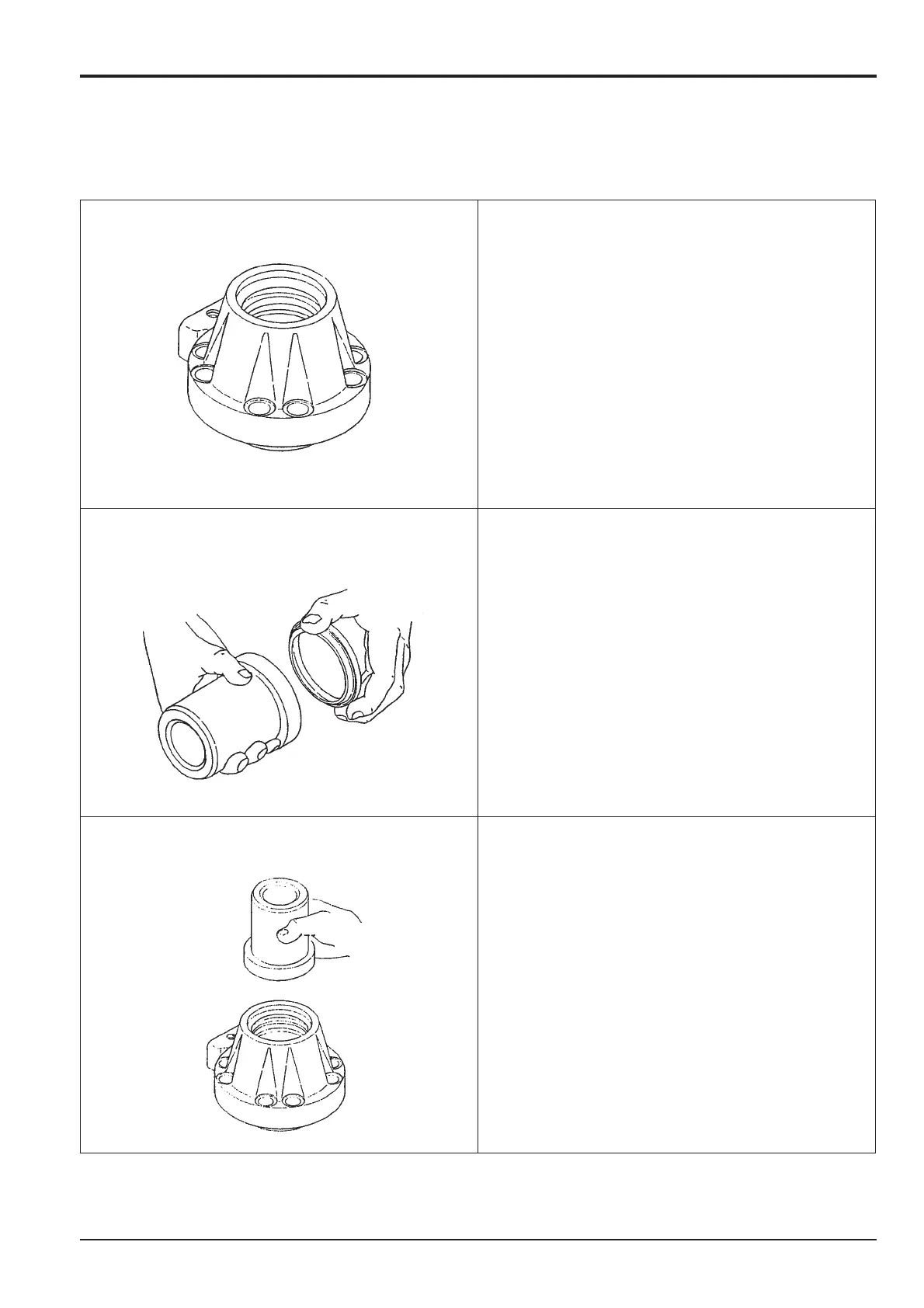

1 Setting the cylinder head
2 Inserting the wiper ring
3 Attaching the retainer
