Reconditioning (cont’d)
Bushing Assembly (cont’d)
77 - 9
Section E Hydraulics
9803/6410
Section E
77 - 9
Issue 1
Hydraulic Rams
At the press, push on the bolt head of the adjuster and
gradually press-fit the bushing into the specified position
in the cylinder head.
The press load should be less than 5 tonnes.
Check that the bushing end surface is below the snap
ring groove.
After the press-fitting of the bushing is completed,
remove the retainer and chuck assembly from the
cylinder head. Continue attaching the seals and press-
fitting the wiper ring.
Check that the bushing is press-fitted correctly.

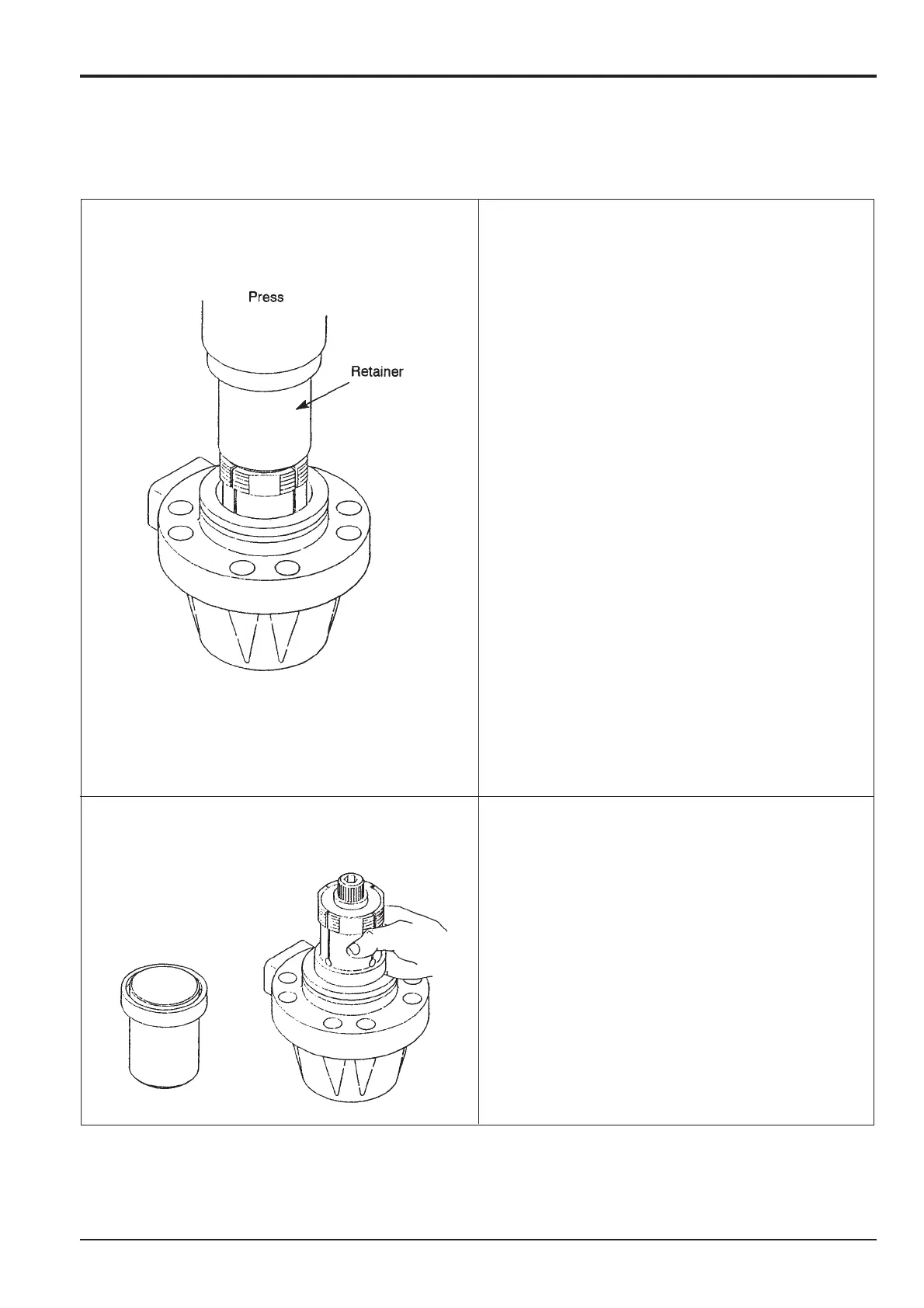

6 Press-fitting the bushing
7 Removal of retainer and chuck assembly
JS02260
