Reconditioning (cont’d)
Bushing Assembly (cont’d)
77 - 8
Section E Hydraulics
9803/6410
Section E
77 - 8
Issue 1
Hydraulic Rams

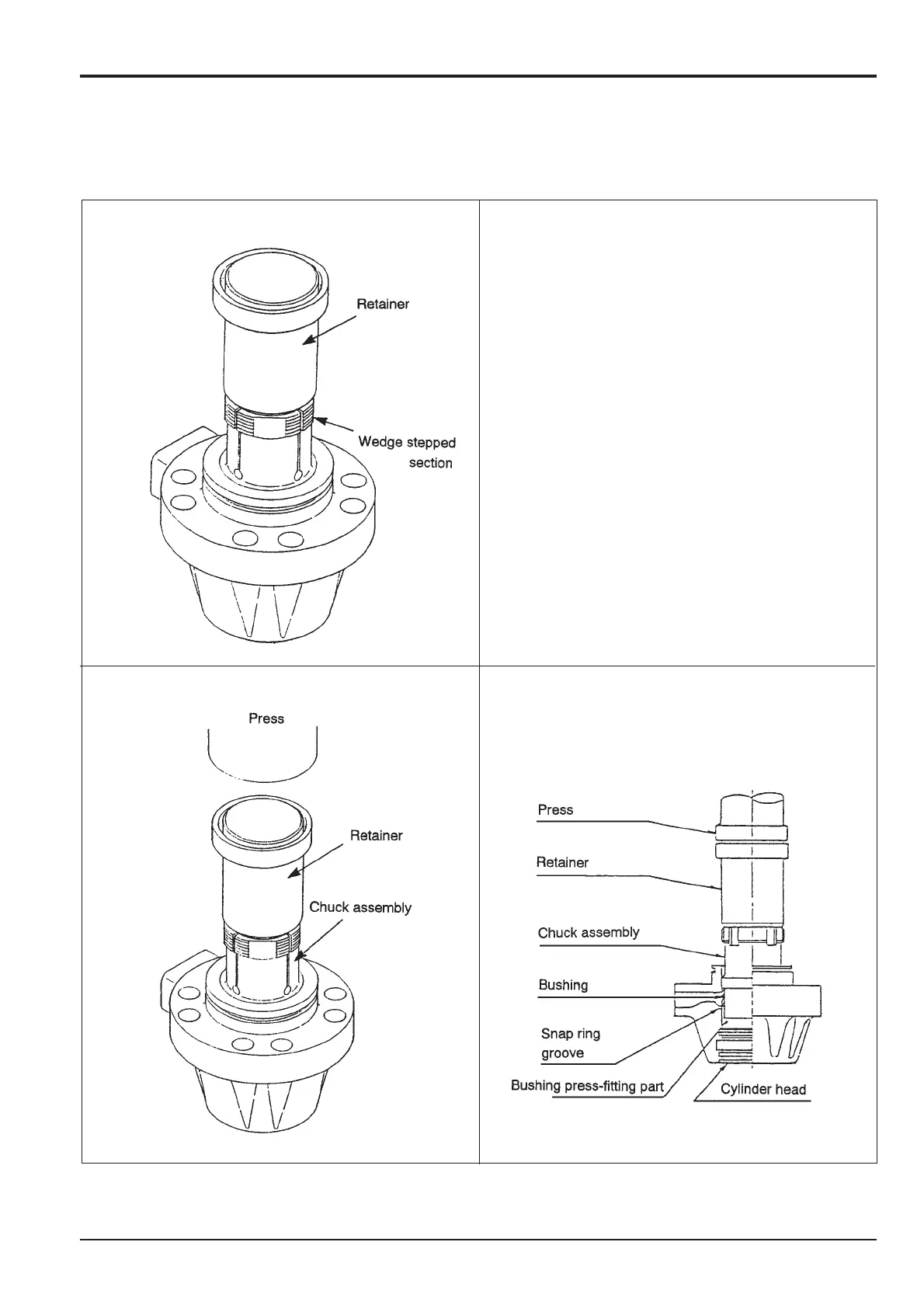

Gently place the retainer so that its end is aligned with
the wedge stepped section of the chuck assembly.
Place the retainer so that the larger diameter part is
facing up as shown.
Place the cylinder with the retainer and chuck assembly
attached underneath the press.
Adjust so that the shaft centre of the press is in line with
that of the retainer and chuck assembly.
4 Attaching the retainer
5 Preparation for press-fitting
JS02220
JS02240
JS02250
