92 - 1
Section E Hydraulics
9803/6410
Section E
92 - 1
Issue 1
Slew Motor
Motor Assembly/Cylinder Assembly
Dismantling

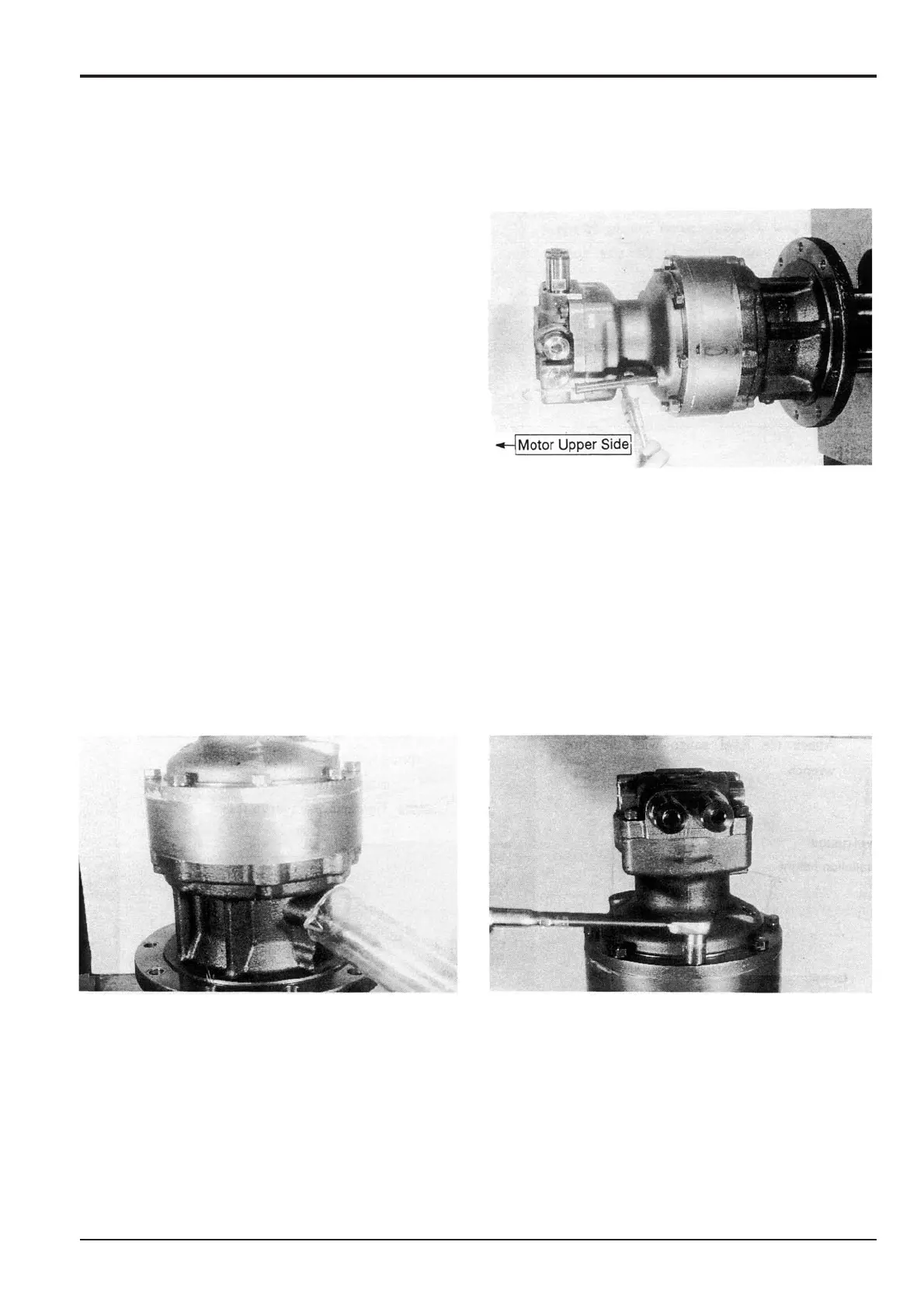

1 Remove the level gauge with a pipe wrench.Refer to the sectional drawing on page E/83-1 as a guide to
dismantling and assembling.
Before attempting to dismantle the slew motor assembly, the
inlet and outlet ports should be blanked and the outer
surfaces washed down with a suitable solvent to remove all
dirt and dust. Dry using compressed air.
2 Remove plug 26 with an 8 mm Allen key and drain the
gear oil.
3 Loosen the bolts with a 19 mm socket wrench and
remove the motor.
Note: Before removing the motor from the reduction gear, it
is advisable to make an alignment mark on the mating faces
to facilitate reassembly.
To Next Page
