Motor Assembly/Cylinder Assembly
Dismantling (cont’d)

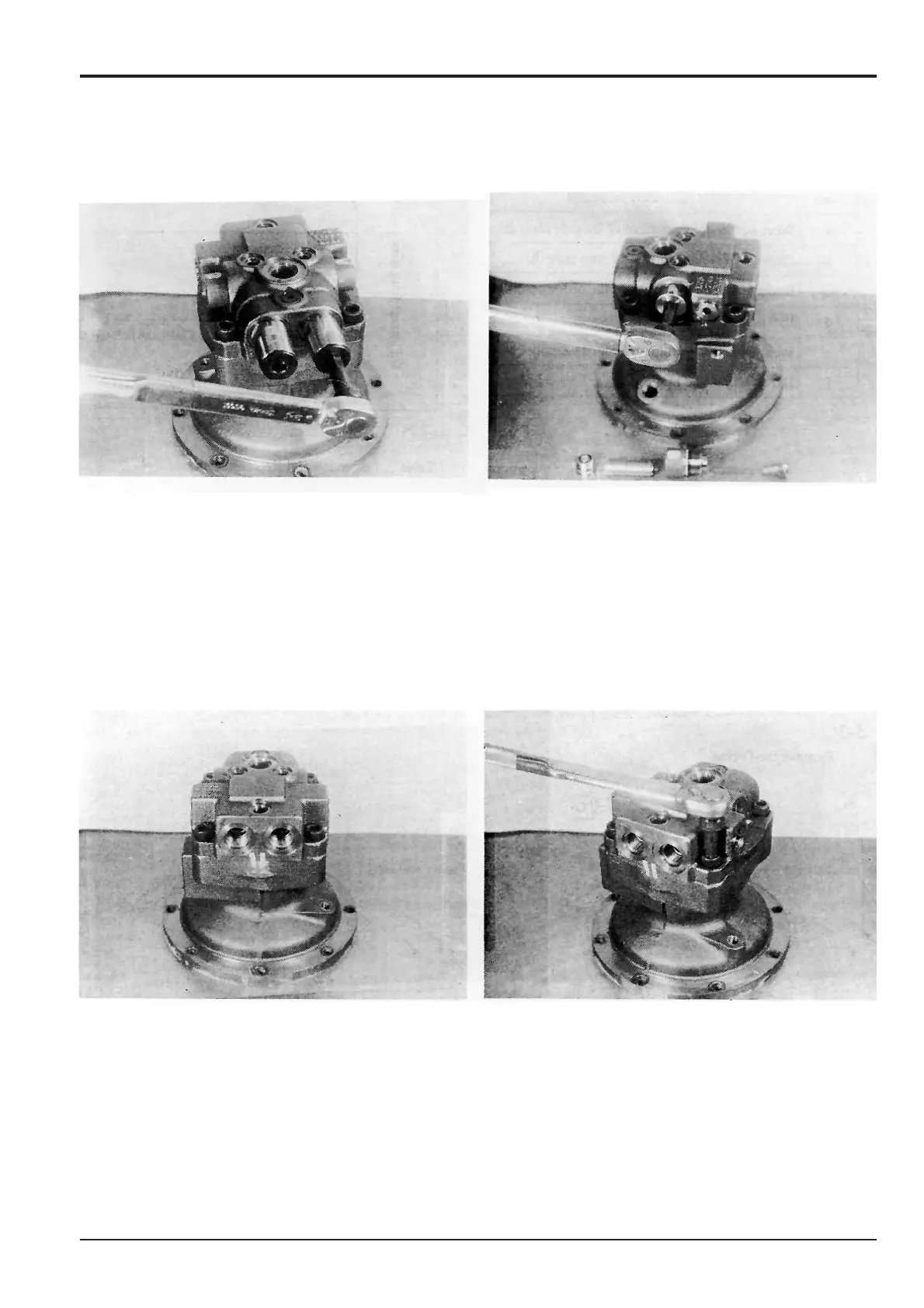

5 Remove the caps 30 with a 14 mm A/F hexagonal key
and take out the springs 31 and check valves 29.
Remove by-pass valve assembly by unscrewing cap 28
using a 10 mm A/F hexagonal key.
Note: Record the relative positions of the parts to ensure
correct reassembly.
Section E Hydraulics
9803/6410
Section E
92 - 2
Issue 1
Slew Motor
4 Remove the caps 37 with 14 mm A/F hexagonal
sockets and remove relief valves 34 from the motor.
Note: Record the position of relief valves 34 to ensure
correct reassembly.
6 It is advisable to make alignment marks on cover 17
and housing 25 with white paint, etc. to facilitate
reassembly.
7 Loosen the bolts attaching cover 17 and housing 25
with a 12 mm hexagonal key.
