92 - 6

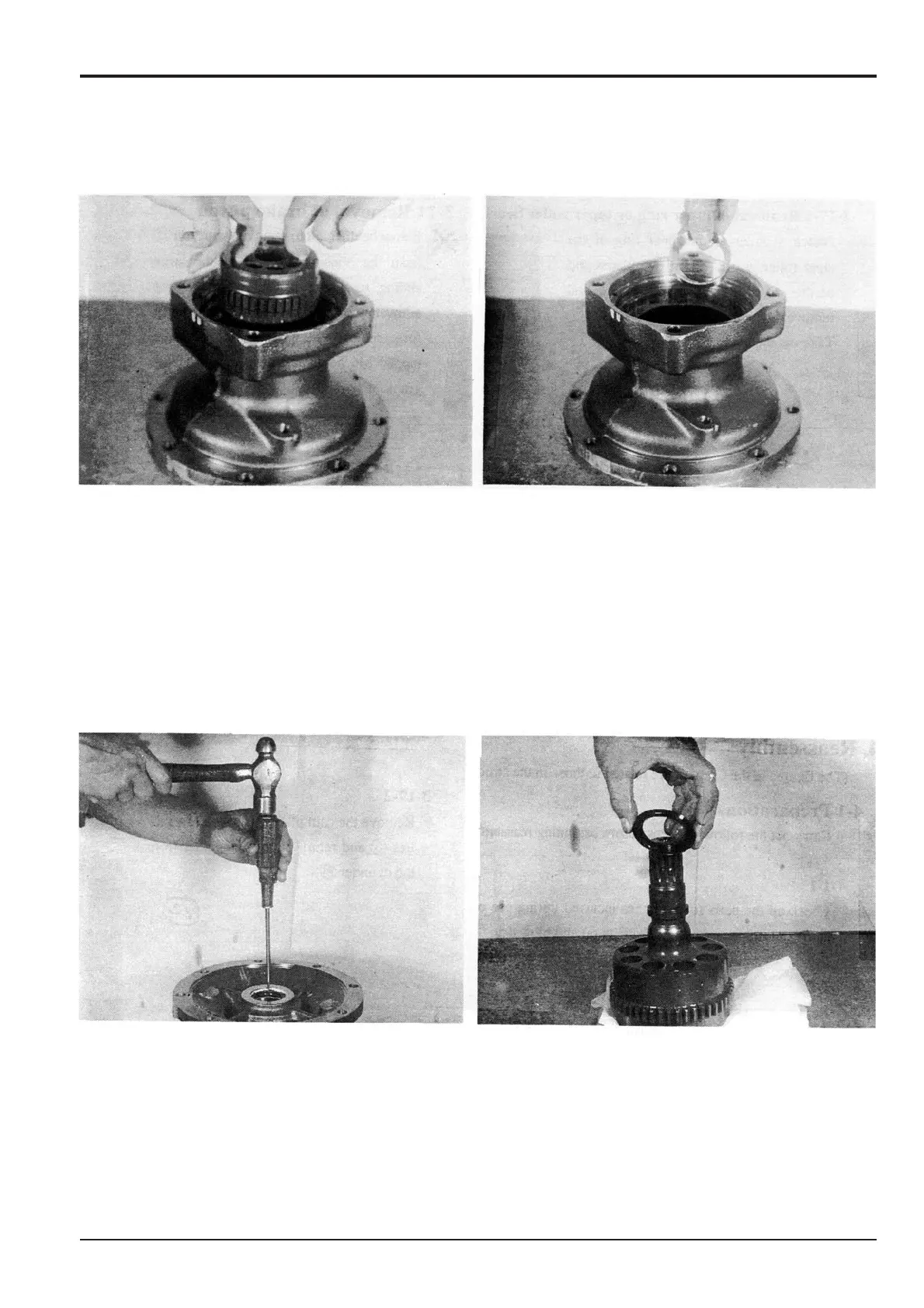

20 Hold the end of cylinder 24 by hand and pull out the
cylinder assembly from housing 25.
Note: The oil seal 2 and the outer ring of taper roller bearing
3 remain in the housing.
The end face of the cylinder should be protected by clean
cloth to prevent it from being damaged.
Make alignment marks or write numbers on the piston bores
and the piston assemblies so that the piston assemblies can
be replaced in the same bores during reassembly.
21 Remove the outer ring of taper roller bearing 3 from the
housing.
Section E Hydraulics
9803/6410
Section E
92 - 6
Issue 1
Slew Motor
Motor Assembly/Cylinder Assembly
Dismantling (cont’d)
22 Tap oil seal 2 with a screwdriver and hammer to remove
it from housing 25.
Note: The oil seal cannot be reused.
23 Remove the spring from cylinder 24.
To Next Page
