8 - 4
Dismantling (cont’d)

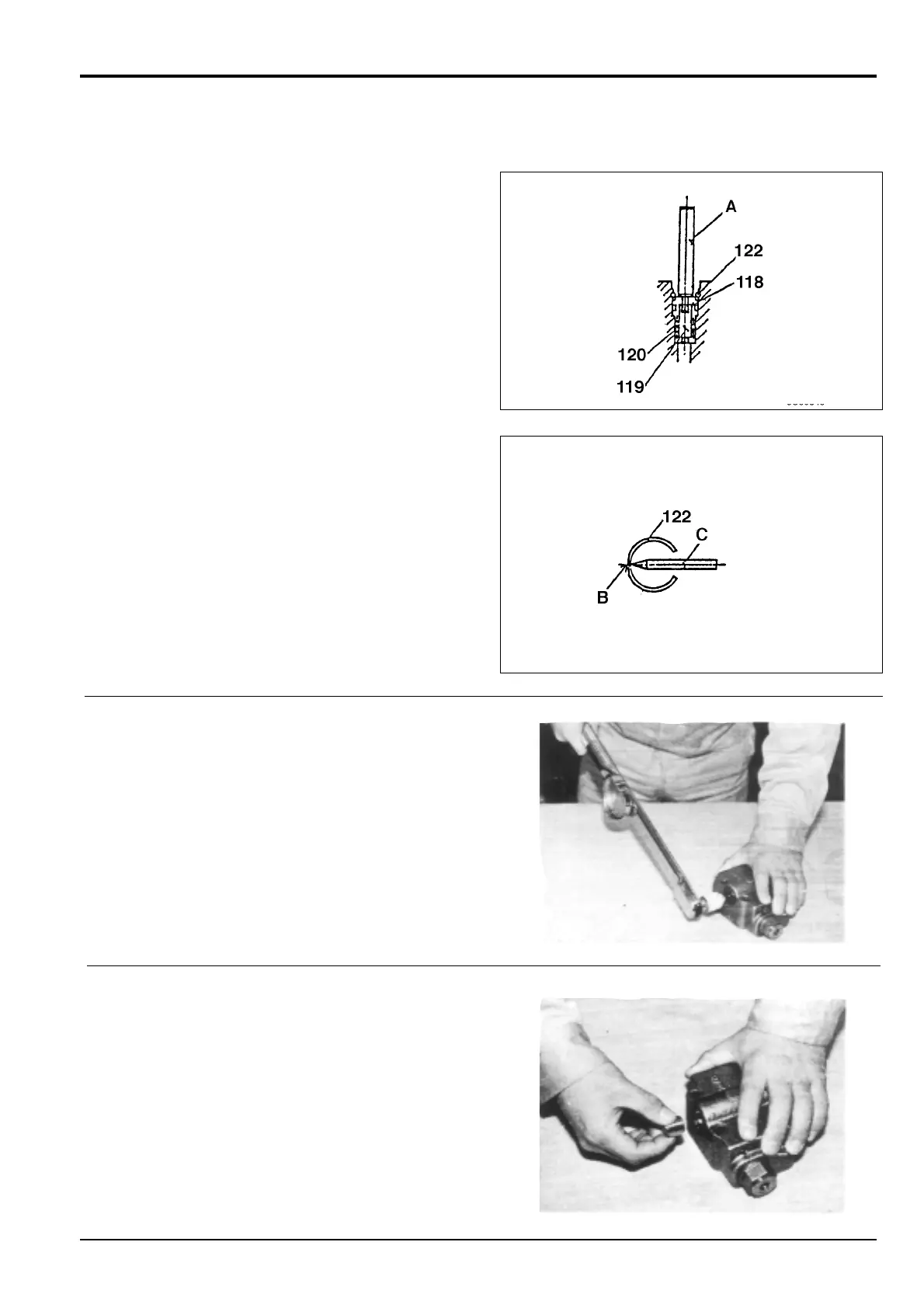

11 Remove valve 119 as follows:
Depress valve seat 118 with a steel rod A and remove
ring 122 by pressing the notch B with a sharp-pointed
tool C. Insert spool 123, block the hole in valve plate
118 and force out the valve plate using oil pressure
directed through the brake pressure port. Extract spring
120 and seat 119. Remove and discard ‘O’-ring 133.
Discard ring 122.
12 Remove plug 214. Remove the ‘O’-ring from plug 214
and discard.
13 Remove piston 213 from body 212.
Section F Transmission
9803/6410
Section F
8 - 4
Issue 1
Traction Motor
JS00350
JS00340
