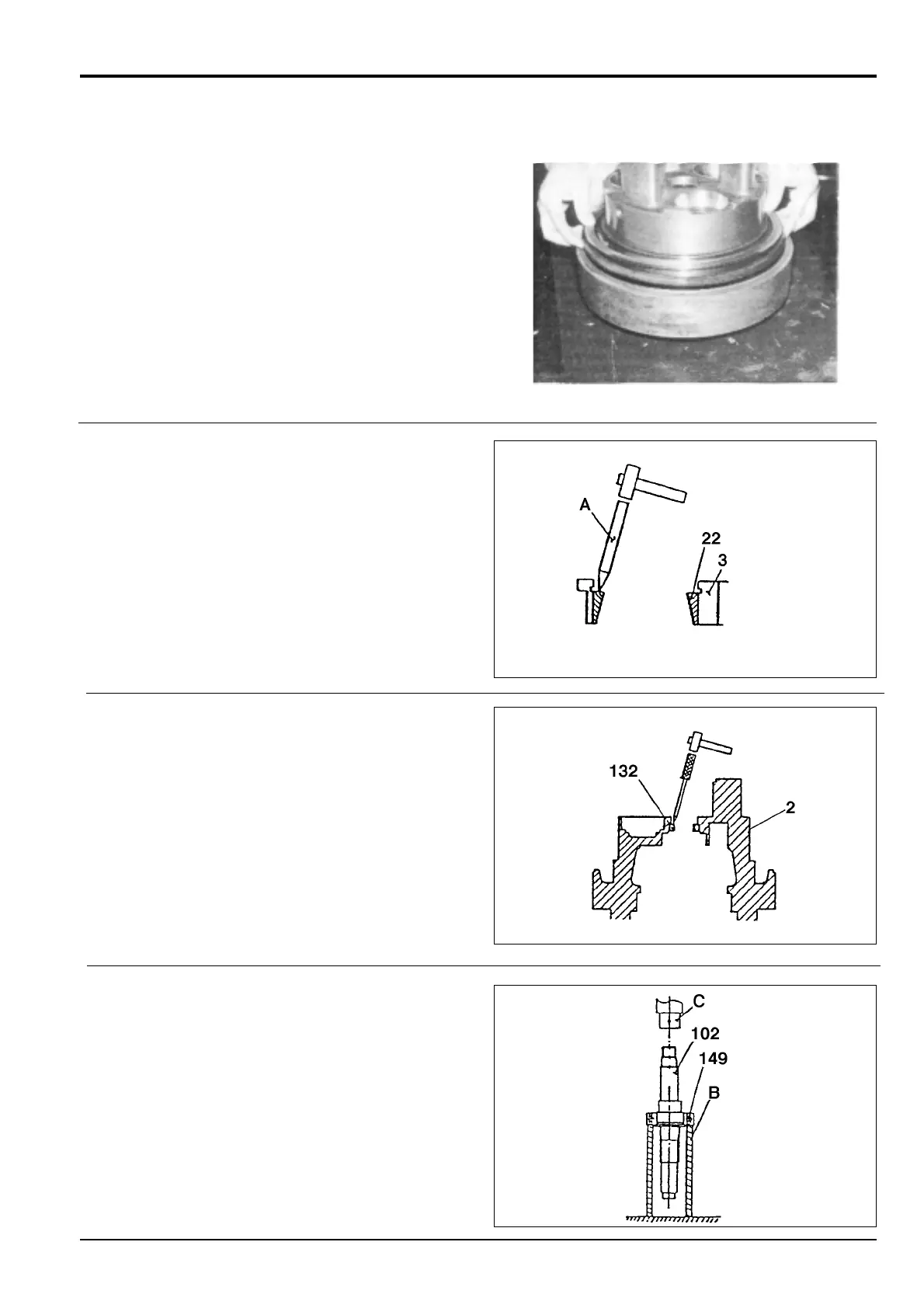

Dismantling (cont’d)
11 Remove floating seal 31 from spindle 2.
12 a Remove the outer race of bearing 22 from flange 3
using an aluminium bar A and hammer as shown.
Note: Do not remove bearing 21 inner race, (as described
below) unless it need renewing.
b Remove the inner race of bearing 21 from flange 3.
13 Note: Do not remove oil seal 132 unless it needs
renewing. Do not re-use an oil seal that has been
removed.
Remove oil seal 132 by putting a screwdriver against the
outer edge of the oil seal inside spindle 2, and striking
with a hammer.
14 Note: Do not remove bearing 149 unless it needs
renewing. Do not re-use a bearing that has been
removed.
Use a suitable press tool B, to support shaft 102. Use
press C to force shaft 102 out of bearing 149.
