jcb JS130 User Manual

9 - 7
Section F Transmission
9803/6410
Section F
9 - 7
Issue 1
Reduction Gear - JS130
Assembly (cont’d)
When Assembling (cont’d)

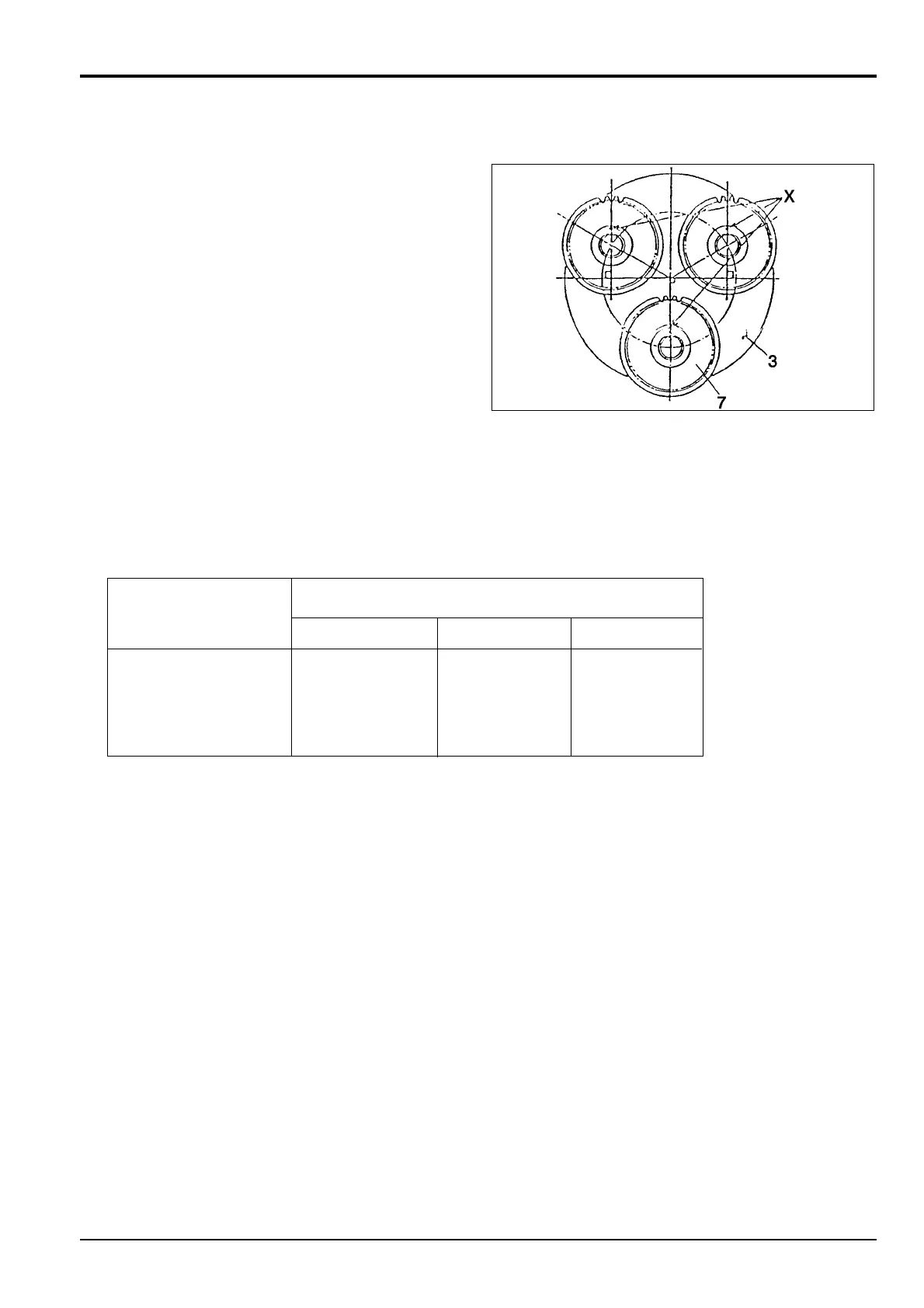

6 When installing spur gears 7 on flange 3 position
alignment marks X as shown.
7 If bearing 149 has been removed from shaft 102 it will
be necessary to fit a new bearing. Heat the bearing to
100 ± 10 °C (212 ± 18 °F) before fitting. Smear the outer
face of the outer race with molybdenum disulphide
grease.
8 Tighten the plug and bolts to the torques indicated
below:
JS00470
Torques
Part
Nm lbf ft kgf m
Reamer bolt 19 540 ± 69 398 ± 51 55 ± 7
Plug 33 58 ± 26 43 ± 14 6 ± 2
Bolt 35 102 ± 16 75 ± 12 10.4 ± 1.6
