7 - 14
CHAPTER 7 Calibration

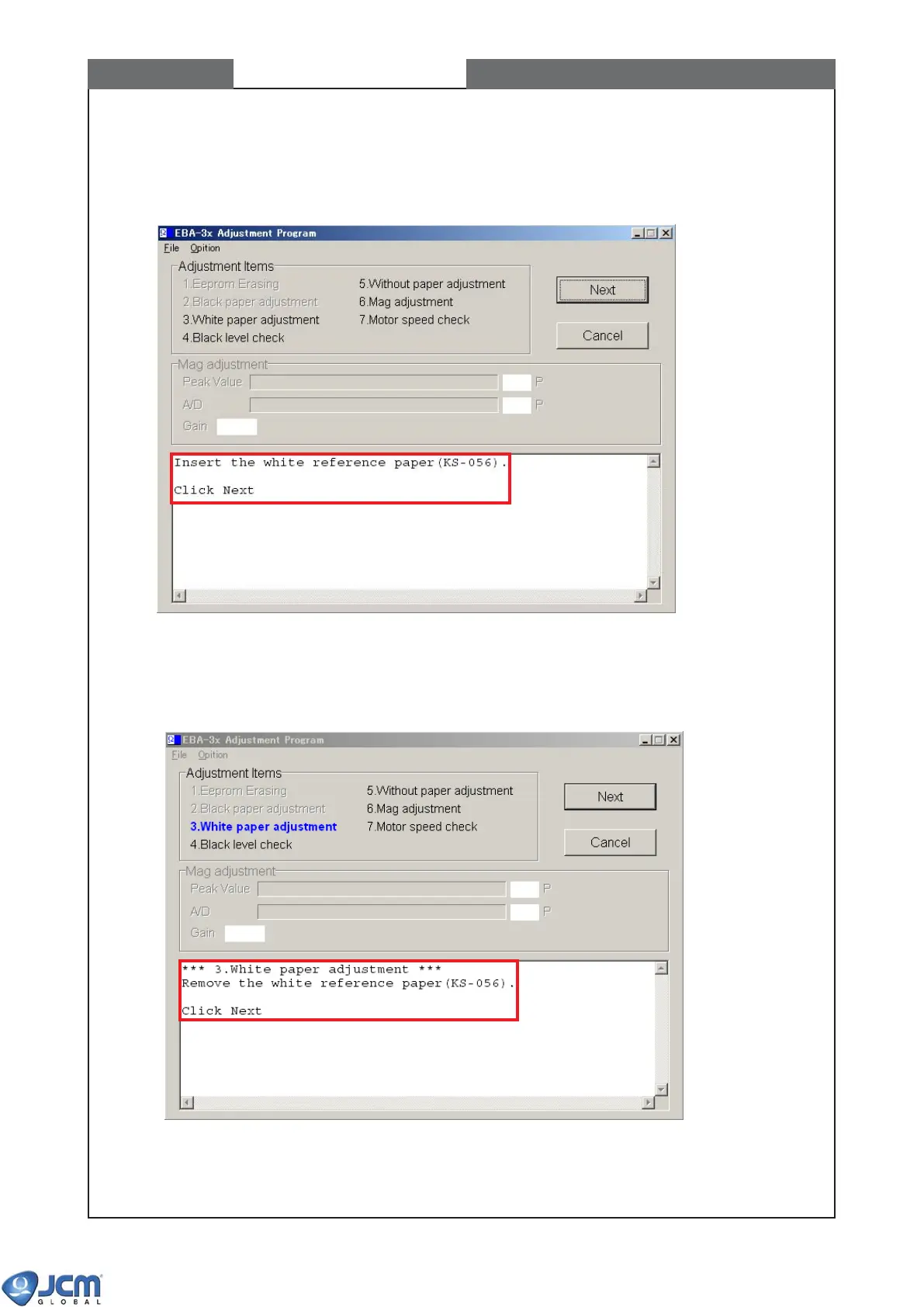

7) Then the following message will appear (See Fig-35). Insert the white reference paper to the EBA-30/32 /34
unit and then press the [Next] button to start the White paper adjustment.
Fig-31
8) When completed the White paper adjustment, the following window will appear (See Fig-34). Remove the
white reference paper form the EBA-30/32/34 unit and then click [Next] button.
Fig-32
