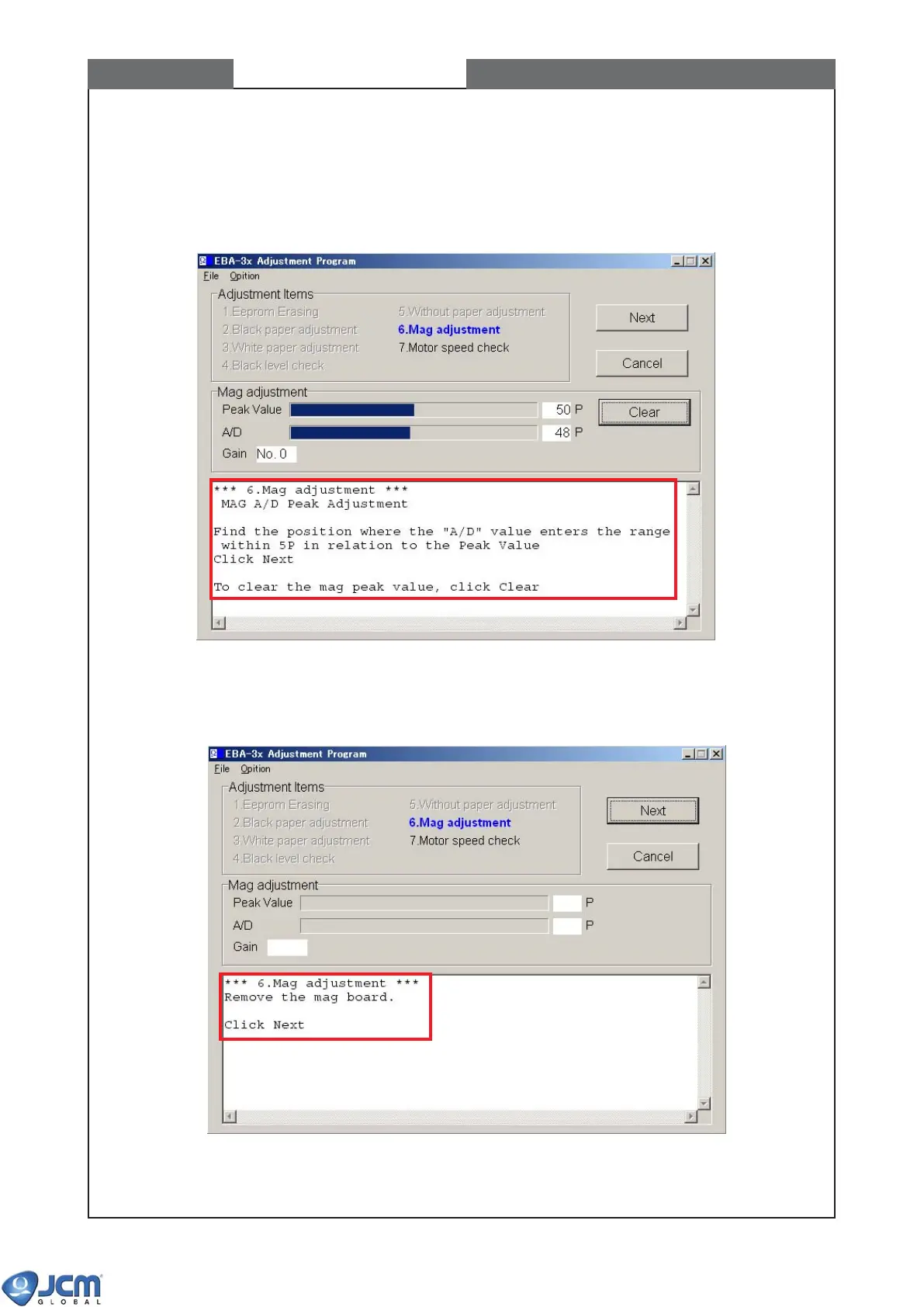

12) Then the following message will appear (See Fig-37). Slowly move the mag board back and forth
to find the position where the “A/D” valu enters the rage within 5P in relation to the Peak Value.
Then press the [Next] button to start the Mag adjustment.
Fig-37
13) When completed the Mag adjustment, the following message will appear (See Fig-38). Then
remove the mag board from the EBA-30/32/34 unit and press [Next] button.
Fig-38
