B ANKNOTE F ITNESS R EQUIREMENTS
The following Banknote types may not validate
correctly, or worse, can cause a jam and/or damage
to the unit’s Transport Path.
Banknotes exhibiting the following conditions
illustrated in Figure 3 should be avoided:
• torn
• excessive folds or wrinkles
• dirty
• wet
• containing foreign objects and/or oil
Primary Features
The EBA-40 Banknote Acceptor Unit contains the
following primary features:
•
Proven Anti-Pullback Technology – This JCM
patented Anti-Pullback Mechanism provides
powerful protection against Banknote
stringing.
•
Automatic Centering – The Centering
Mechanism (See Figure 4 & Figure 5) allows
the unit to read Banknote without using speci
al
Banknote Guides. It helps to improve the
overall acceptance rate:
– With the SD3 Stacker: 62mm to 85mm in width
– Without the SD3 Stacker: 60mm to 85mm in
width.
Damaged Banknotes
Wrinkled Banknotes
Curled Banknotes
Folded or Partial Banknotes

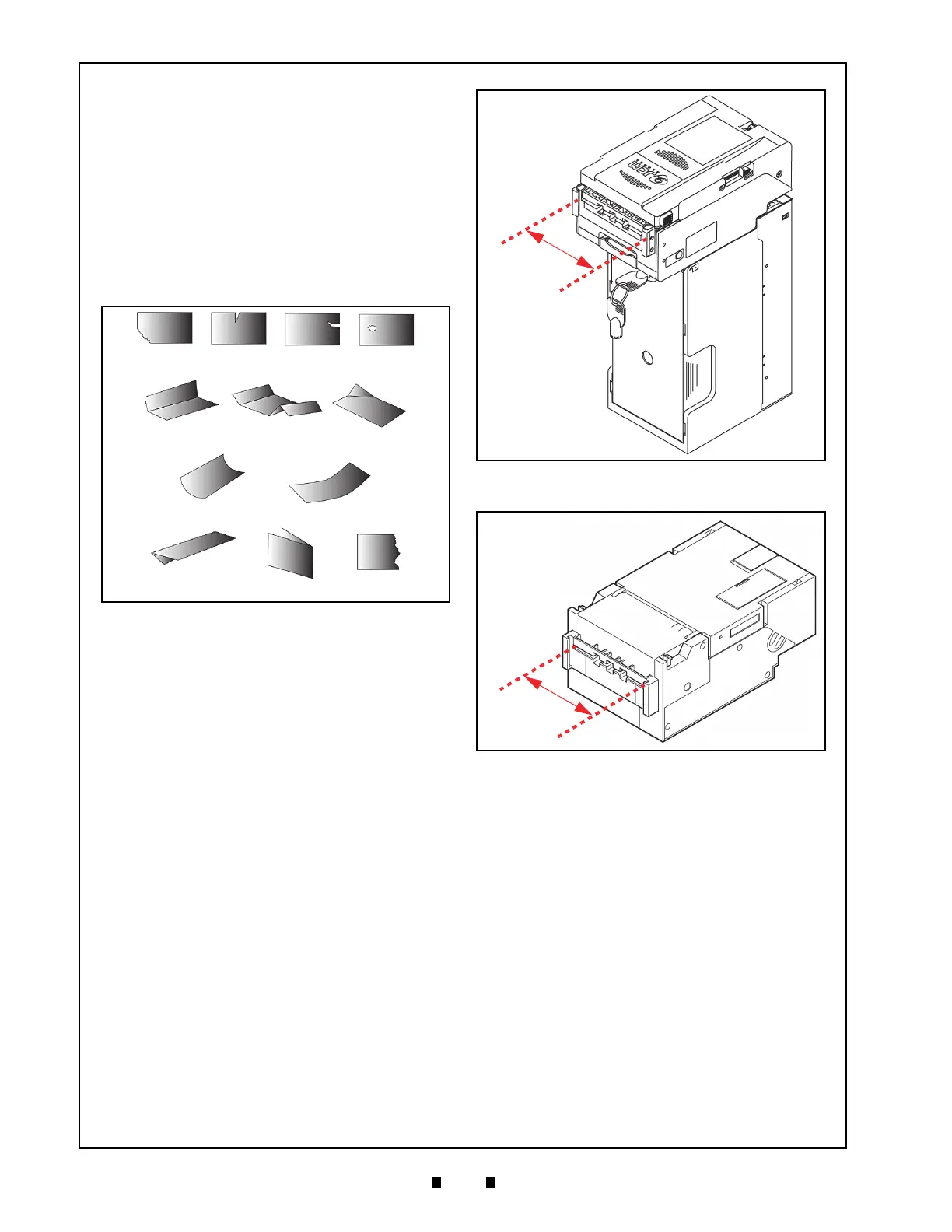

Figure 3 Unacceptable Banknotes
6
2
m
m
-
8
5
m
m
Figure 4 Automatic Centering Mechanism
(with the SD3 Stacker)
Figure 5 Automatic Centering Mechanism
(without the SD3 Stacker)
6
0
m
m
-
8
5
m
m
