JCM EBA-40 - Figure 21 EBA-40 Cctalk Interface Schematic Diagram; Figure 22 EBA-40 Photo-Coupler Interface Schematic Diagram; STANDARD INTERFACE CIRCUIT SCHEMATICS (Continued 1)

P/N 960-000173R_Rev. A {EDP #229278} © 2013, JAPAN CASH MACHINE CO., LTD.
21
EBA
®
Series Banknote Acceptor (EBA-40) Integration Guide
STANDARD INTERFACE CIRCUIT SCHEMATICS (Continued 1)

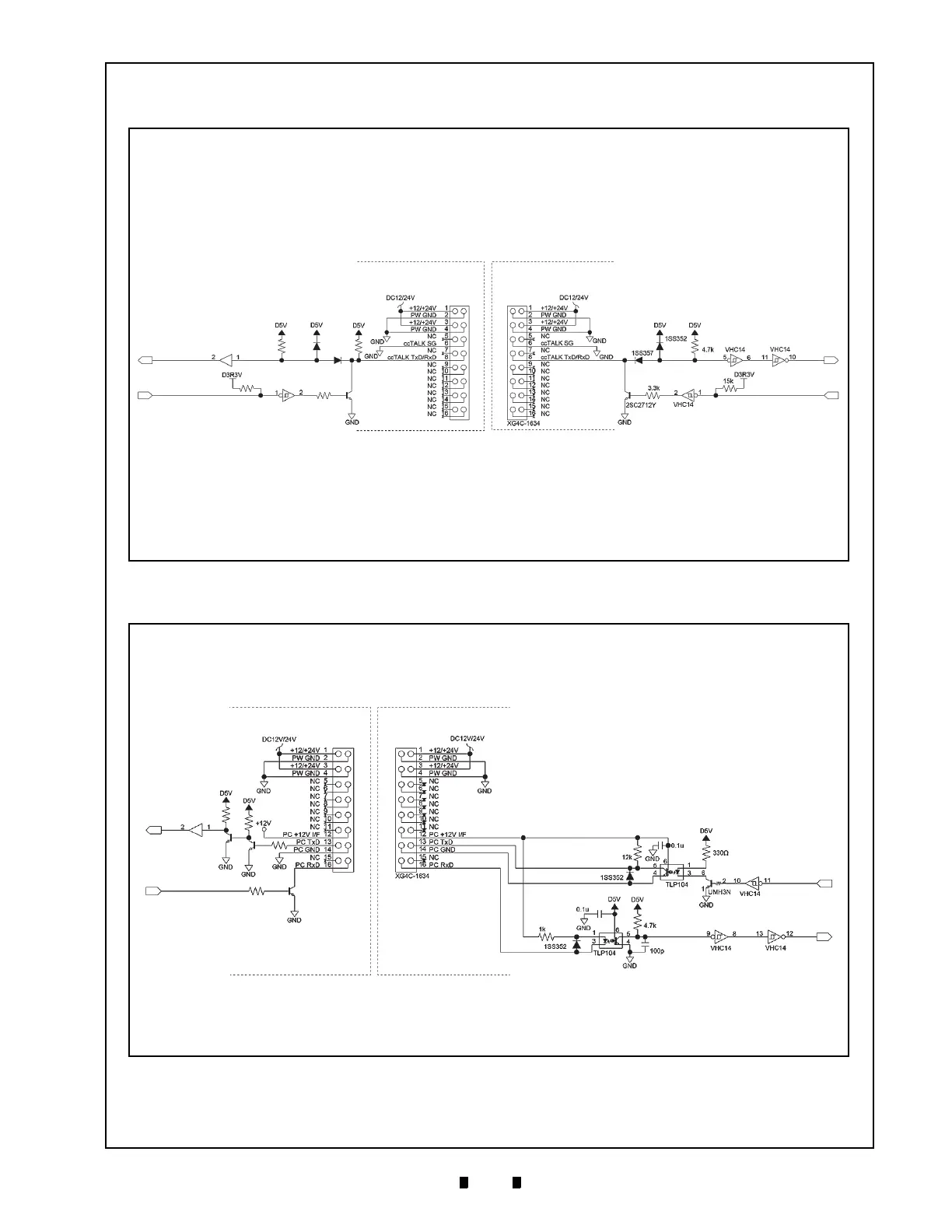

Figure 21 illustrates the EBA-40 ccTalk Interface Schematic Diagram.
Figure 22 illustrates the EBA-40 Photo-Coupler Interface Schematic Diagram.
CONTROLLER SIDE
EBA SIDE
Figure 21 EBA-40 ccTalk Interface Schematic Diagram
CONTROLLER SIDE
EBA SIDE
Figure 22 EBA-40 Photo-Coupler Interface Schematic Diagram
