Section 1 VEGA™ Series BankNote Validator General Information
VEGA Unit Dimensions
E NTIRE U NIT O UTSIDE D IMENSIONS (T YPE SH WITH S TANDARD C ASH B OX )

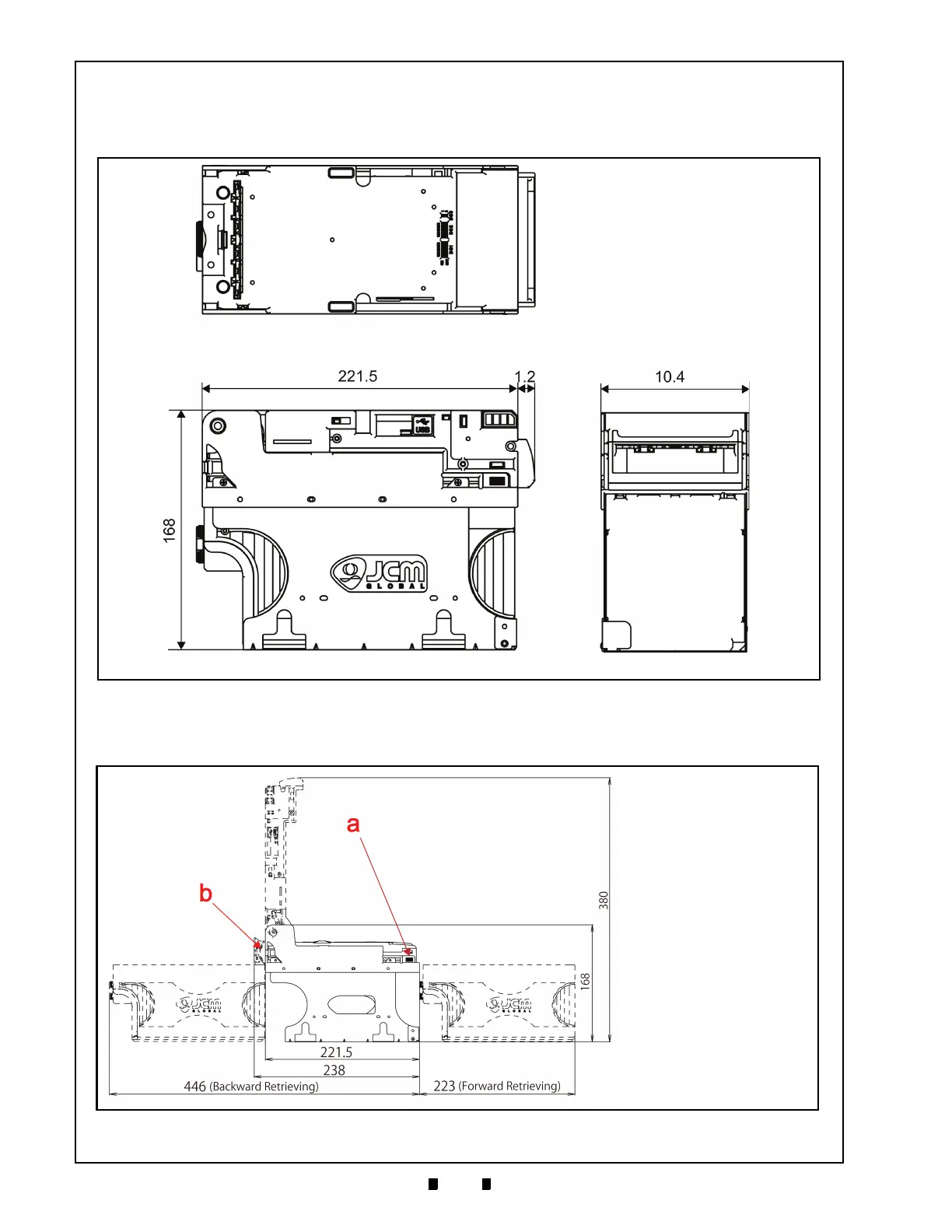

Figure 1-6 illustrates the entire VEGA SH Unit with a Standard Cash Box’s outside dimensions.
E NTIRE U NIT C LEARANCE D IMENSIONS (T YPE SH WITH S TANDARD C ASH B OX )
Figure 1-7 illustrates the VEGA SH Unit with Standard Cash Box mounting space clearance dimensions.
NOTE: All Dimension are in Millimeters
Figure 1-6 VEGA Banknote Validator Unit Outside Dimensions (Type SH - Standard Cash Box)
a) Upper Section Open/
Close Button
b) Course Path Reversing
Guide Door Release Button
NOTE: All Dimension are in
Millimeters
Figure 1-7 VEGA Mounting Space Clearance Dimensions (Type SH - Standard Cash Box)
