JCM VEGA Series User Manual

P/N 960-100189RA_Rev. A {EDP #148850} © 2009, Japan CashMachine Co., Limited
1-9
General Information VEGA™ Series BankNote Validator Section 1
E NTIRE U NIT O UTSIDE D IMENSIONS (T YPE SH WITH L ARGE C ASH B OX )

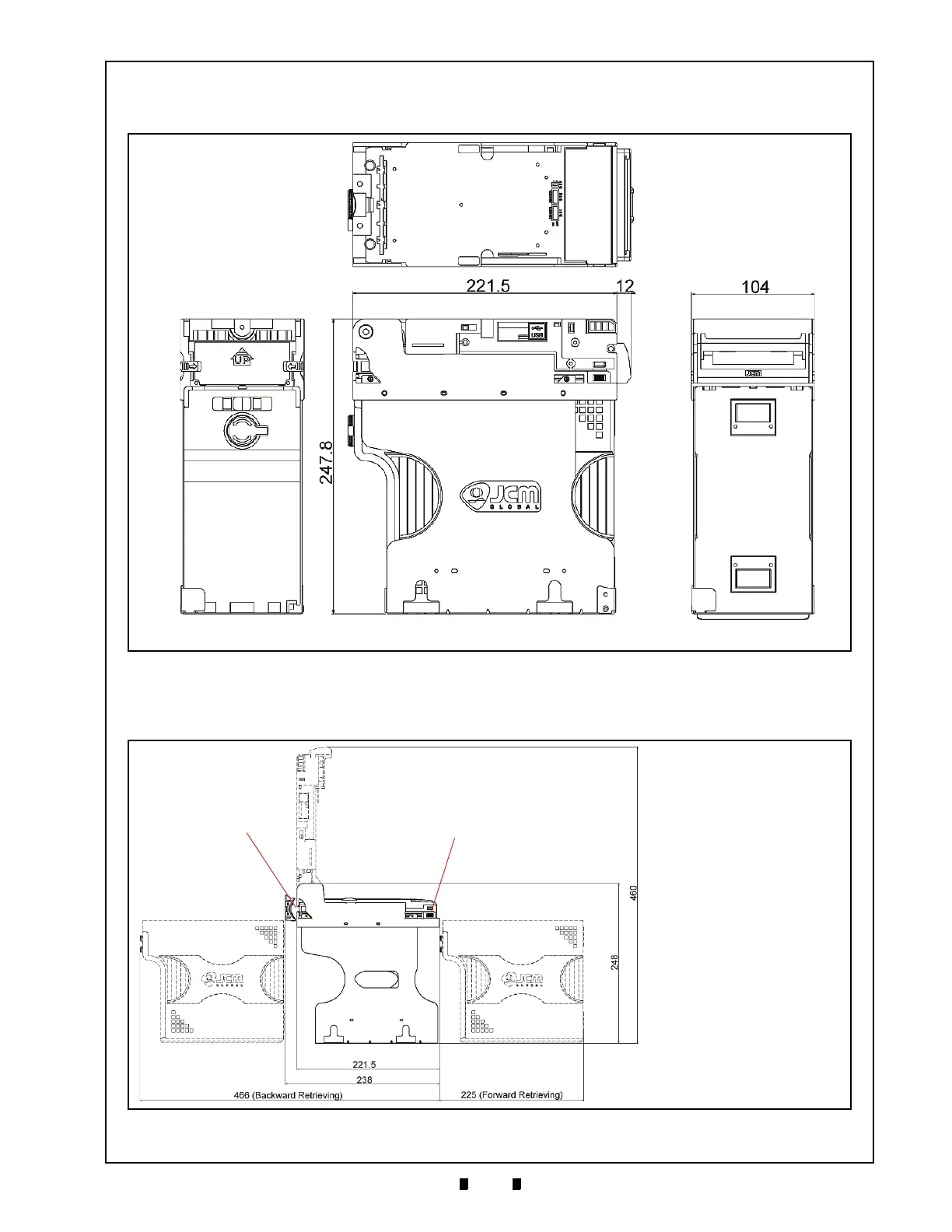

Figure 1-8 illustrates the entire VEGA SH Unit with Large Cash Box outside dimensions.
E NTIRE U NIT C LEARANCE D IMENSIONS (T YPE SH WITH L ARGE C ASH B OX )
Figure 1-9 illustrates the VEGA SH Unit with Large Cash Box mounting space clearance dimensions.
NOTE: All Dimension are in Millimeters
Figure 1-8 VEGA Banknote Validator Unit Outside Dimensions (Type SH - Large Cash Box)
a) Upper Section Open/
Close Button
b) Course Path Reversing
Guide Door Release Button
NOTE: All Dimension are
in Millimeters
a
b
Figure 1-9 VEGA Banknote Validator Unit Outside Dimensions (Type SH - Large Cash Box)
