JCM VEGA Series User Manual

P/N 960-100189RA_Rev. A {EDP #148850} © 2009, Japan CashMachine Co., Limited
1-10
Section 1 VEGA™ Series BankNote Validator General Information
E NTIRE U NIT O UTSIDE D IMENSIONS (T YPE SD/SU WITH S TANDARD C ASH B OX )
Figure 1-10 illustrates the entire VEGA SD/SU Unit with Standard Cash Box outside dimensions.
E NTIRE U NIT O UTSIDE D IMENSIONS (T YPE SD/SU WITH L ARGE C ASH B OX )
Figure 1-11 illustrates the entire VEGA SD/SU Unit with Large Cash Box outside dimensions.
NOTE: All Dimension are in Millimeters

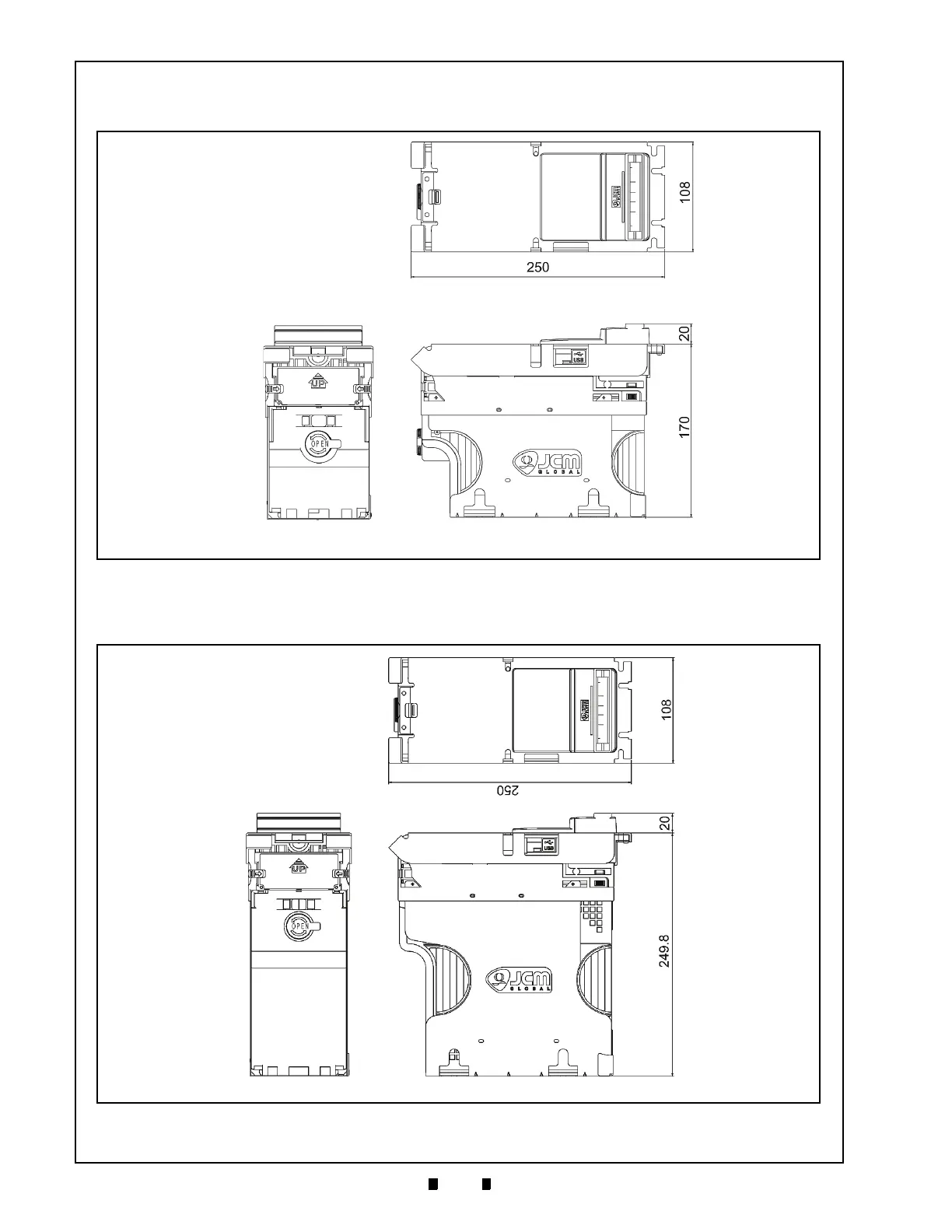

Figure 1-10 VEGA Banknote Validator Unit Outside Dimensions (Type SD/SU - Standard Cash Box)
NOTE: All Dimension are in Millimeters
Figure 1-11 VEGA Banknote Validator Unit Outside Dimensions (Type SD/SU - Large Cash Box)
