5
CDR5620 INSTALLATION
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
When replacing a fuse, make sure to use the correct type and amperage.
Using an incorrect fuse could cause damage. The unit uses (1) 15 amp ATO
blade-type fuse located on the back of the unit.
Front / Rear camera inputs
Up to two cameras (not included) can be used. We recommend JENSEN
Part # BUCAM200J for front camera and BUCAM300AJ or BUCAM400AJ for
rear camera.

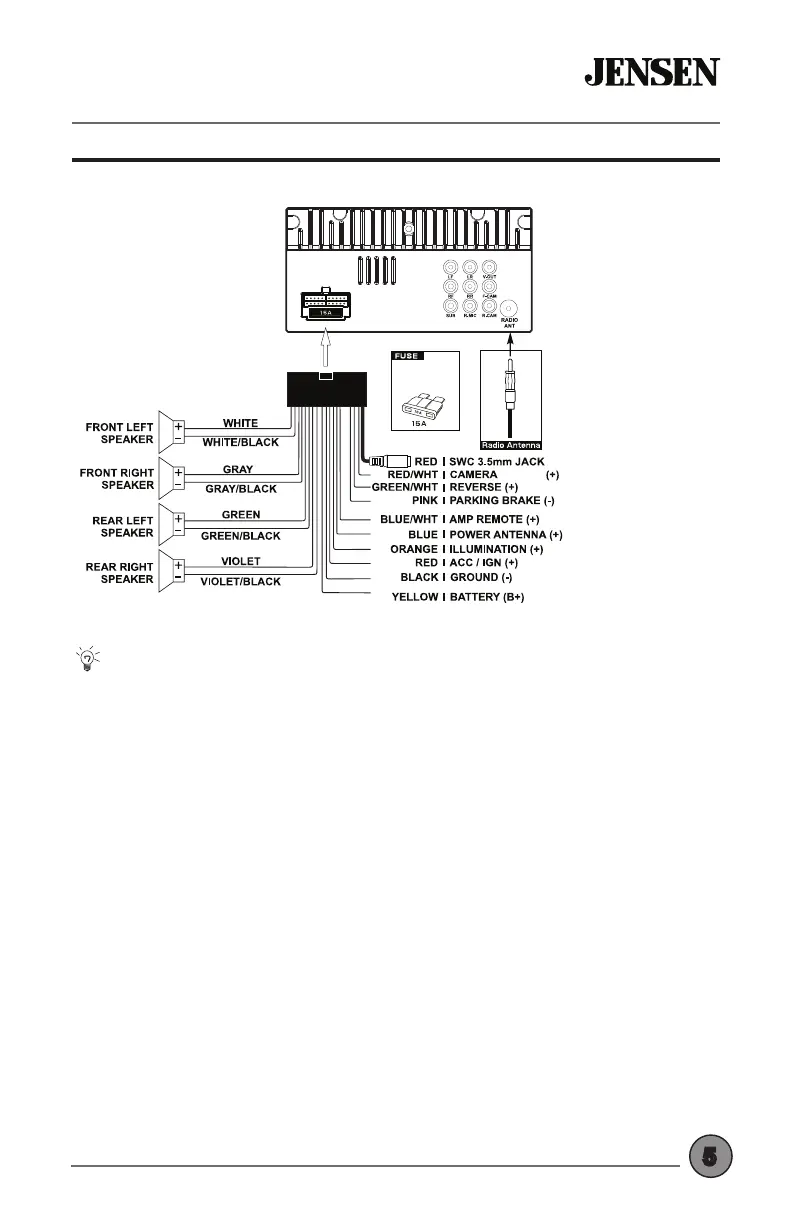

Input / Output Wiring Diagram
POWER
MAXIMUM OUTPUT 500mA
Replace with
ATO Type fuse
Only
