KDC 9520
Before You Begin Installation
Before you begin, you will need tools, supplies and adapters. It is best to make sure you have
everything you need before you take your dashboard apart.
Installation
Prepare Radio for Installation
Tools and Supplies Needed
Basic Installation:
• Flat and Phillips screwdrivers
• Wire cutter
• Wire stripper
• Tools to remove existing radio (screw-
driver, socket wrench set or other tools)
• Radio removal tool (for GM cars 1990
and newer)
• Electrical tape
Advanced Installation:
• Soldering iron
• Crimping tool
• Circuit tester
• Solder
• Crimp connectors
• 14 gage wire for power connections
• Speaker wire

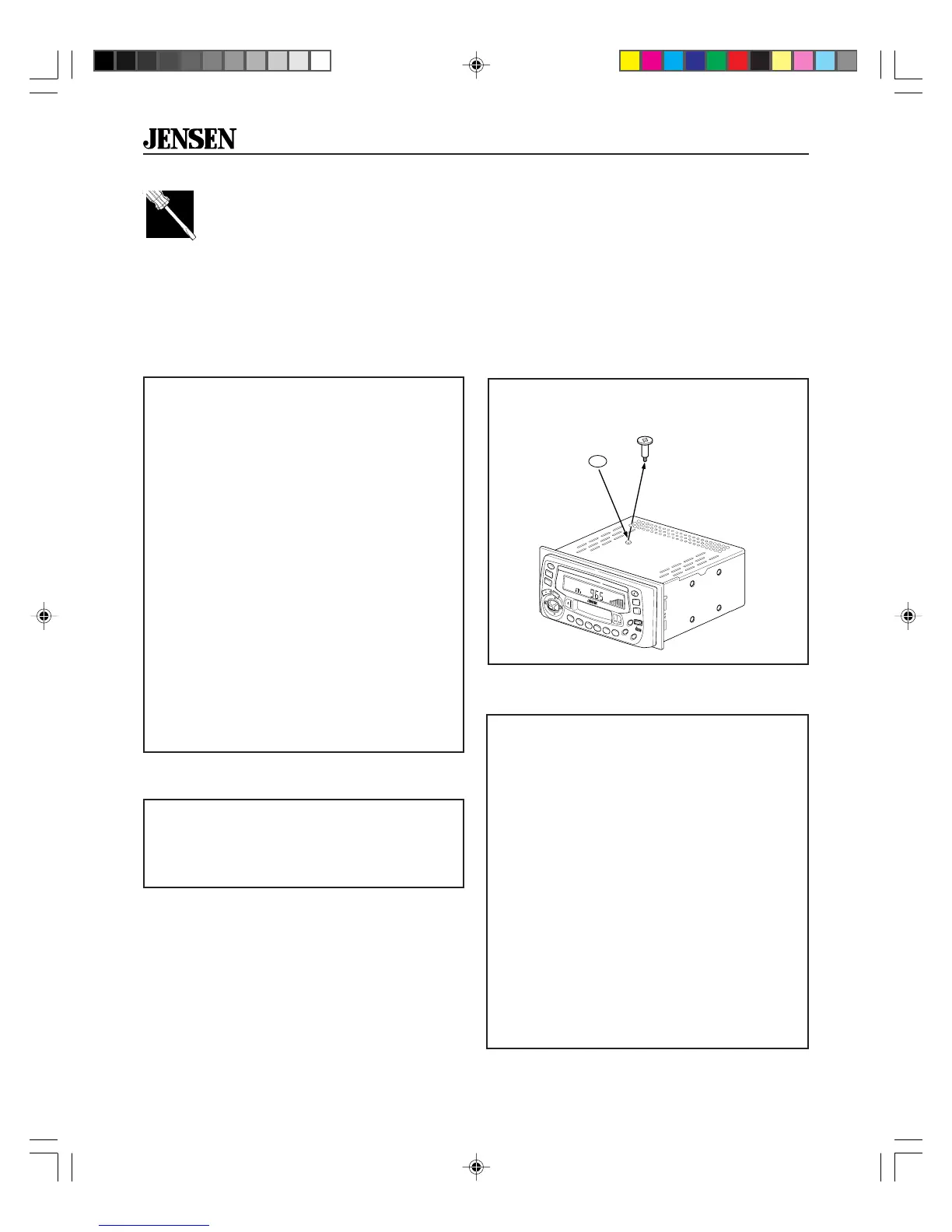

Remove transport
screw (you cannot
insert a CD until the
screw is removed)
Put adhesive dot (from
accessory kit) over
transport screw hole
Adapters for Easier Installation
Electrical and dashboard adapters make
installation easier. Purchase adapters from
your local Jensen retailer, electronics store or
car stereo specialty store.
Wiring Harness Adapter
For a basic installation, you can purchase a
wiring harness adapter for your car's existing
radio connectors. This makes installation easy.
Dashboard Adapters
The opening in your dashboard may not match
the size of your Jensen radio. Purchase an
adapter kit for your car.
Antenna Adapter (GM cars)
1990 and newer GM cars have a small
antenna connector. You will need an adapter
when installing this radio in a newer GM car.
Speaker Requirements
Only connect the KDC 9520 to speakers rated
in the load impedance range of 4 to 8 ohms.
Speakers with a load impedance less than 4
ohms could damage the KDC 9520.
