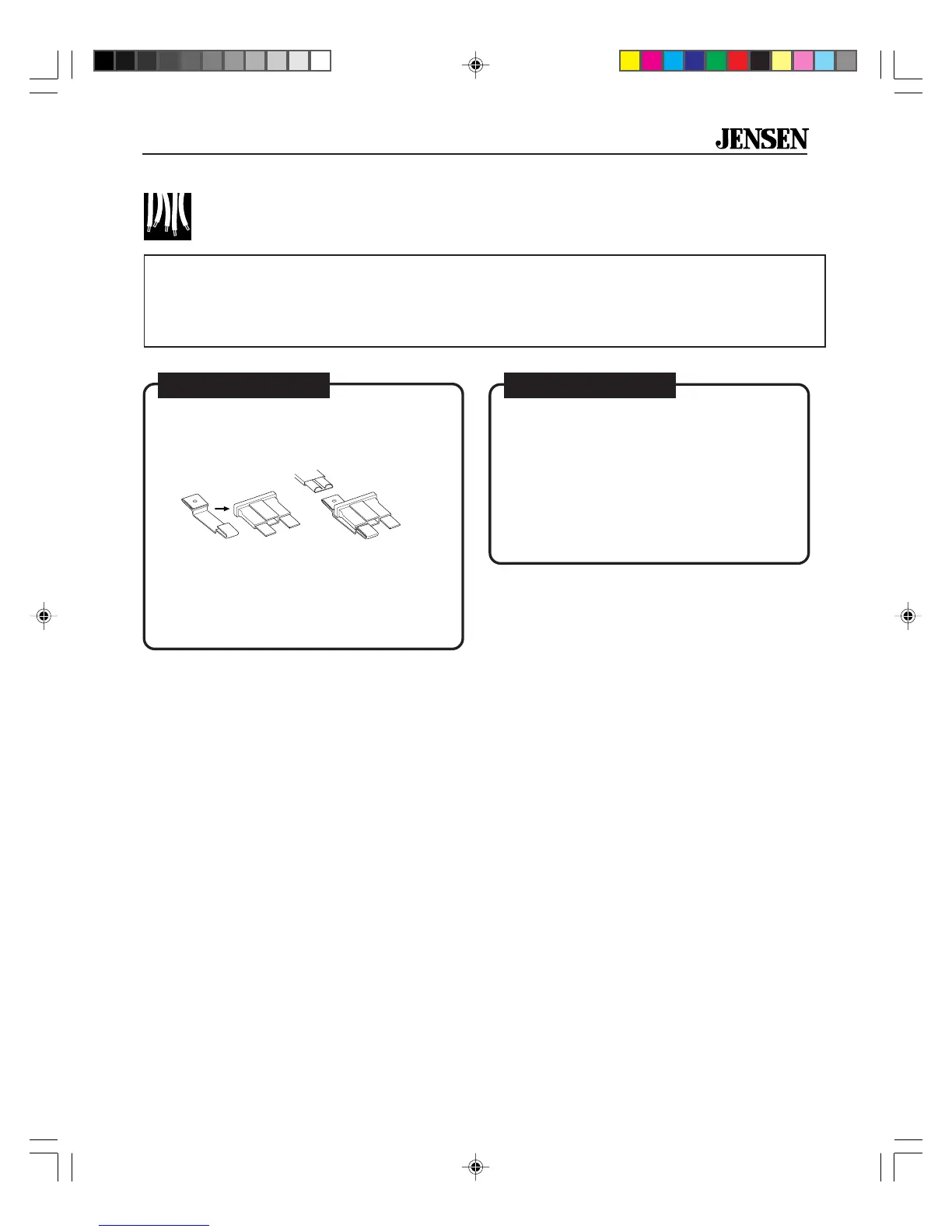

Page #5 background imageLoading...
Page #5 background image
5
®
KDC 9520
Wiring
Important
If wiring connections are made wrong, the unit will not operate properly and it could be damaged.
Follow the installation instructions carefully, or have the installation handled by an experienced
technician.
Professional Tip
Fuse Adapters
No convenient power wire? Install a fuse
adapter having a spade connector.
Fuse
Adapter
Fuse
Crimp on a matching connector and attach:
Yellow wire–Fuse marked MAIN, BAT
or PWR
Red wire–Fuse marked ACCY
(accessory), or RADIO
Professional Tip
Cars with a Single Speaker Wire
Some speakers connect to the original
radio with a single wire. Your Jensen radio
requires two wires per speaker. You must
locate each speaker and run a second wire
from the speaker (–) terminal to the radio.
You will probably have to remove interior
trim panels and door sills.
KDC9520 _EIN.p65 3/14/00, 1:27 PM5

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Jensen DC 9520 A and is the answer not in the manual?

Jensen DC 9520 A Specifications

FM Tuner IconFM Tuner
tuning range87.5 MHz-107.9 MHz
FM mono sensitivity12 dBf
50 dB quieting sensitivity (stereo)16 dBf
AM Tuner IconAM Tuner
tuning range530 kHz-1710 kHz
Amplifier IconAmplifier
total system power140 Watts peak
power output (front)2 x 35 Watts
power output (rear)2 x 35 Watts
Tape Player IconTape Player
frequency response±3 dB . 50 Hz-15 kHz
CD Player IconCD Player
frequency response20 Hz-20 kHz
General IconGeneral
power supply11-16 VDC, negative ground
speaker output impedance4-8 Ohms
