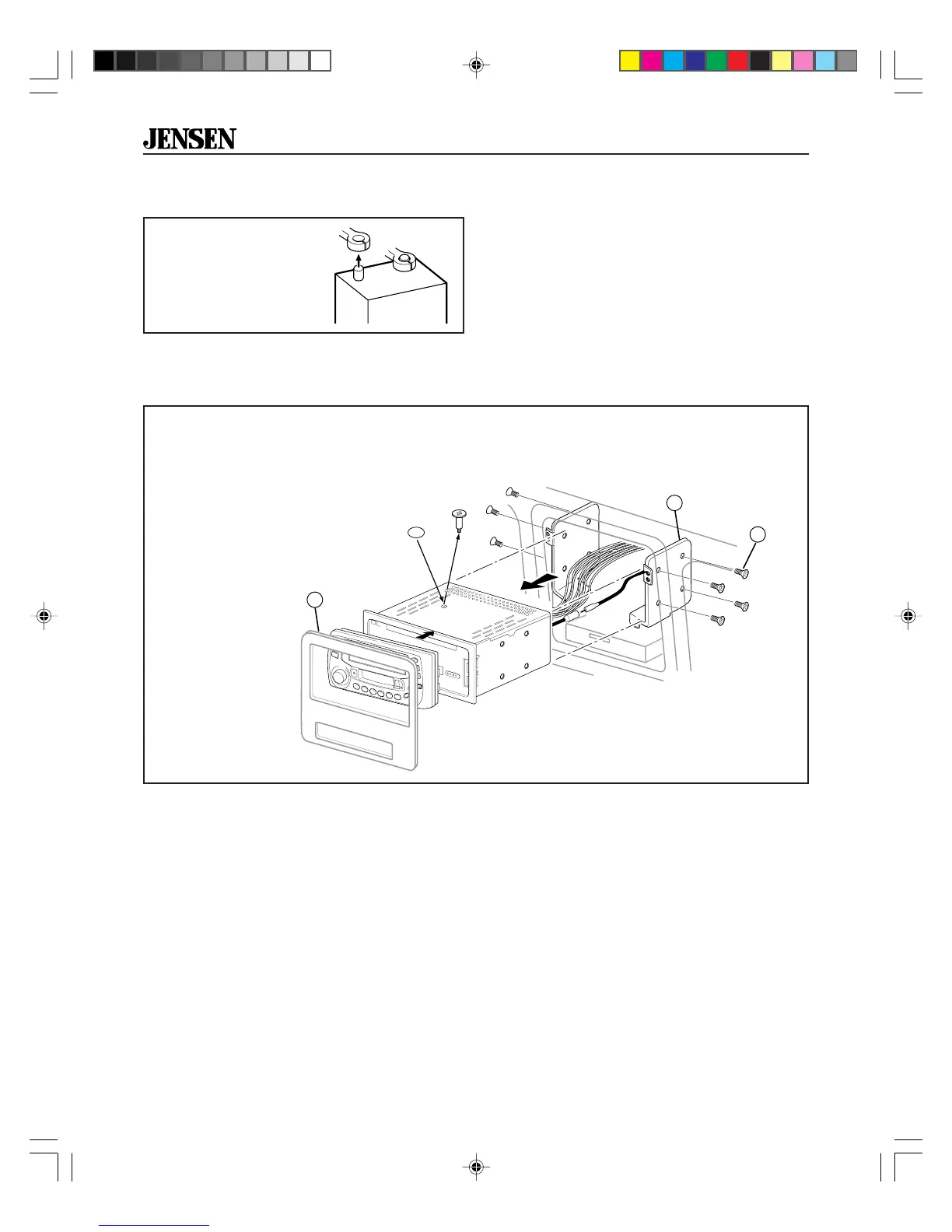

KDC 9520
Disconnect Battery
Before you begin, always
disconnect the battery
negative terminal.
+
–
Remove Old Radio
1. Remove trim to expose chassis.
2. Remove the frame from the dashboard.
3. Unscrew screws from the sides.
4. Disconnect wiring harness and remove radio.
