3
®
KDC 9520

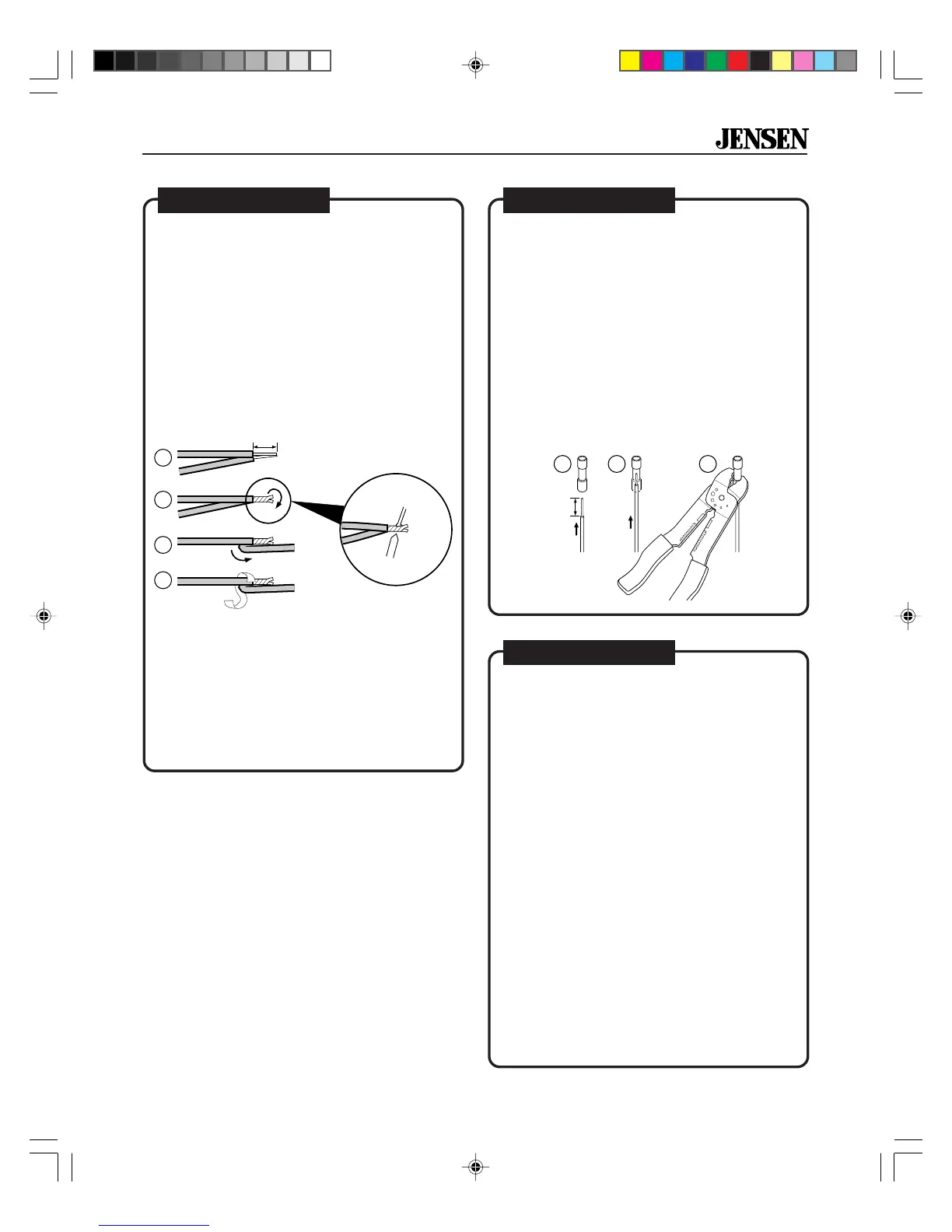

Connections
Good wire connections are very important for
best sound and long-term reliability. Here are
two methods:
Splice
1. Strip 1/2 inch (12 mm) of insulation from
both wires.
2. Wrap wires together
3. Fold wires over
4. Stretch electrical tape tightly over splice.
Professional Tip
Solder
Solder is the best way to connect wires, but it
takes skill and practice. Splice the wires (as
shown above). Before taping, heat the wires
(not the solder). When the wires are warm
enough, touch the solder to the splice. The
solder will flow over the wires. Stretch electrical
tape tightly over splice.
Upgrading Your System
International Jensen makes a wide range of
car stereo products that will make your car
system sound better, great or INCREDIBLE!
Better Sound
Install a Jensen tape deck or CD player like
you’re doing now. High power units can
make your existing speakers sound better
and play louder.
Great Sound
Replace your existing speakers with Jensen
or Advent speakers. Many of our speakers
will fit into your car without cutting or drilling.
You can also add an amplified graphic
equalizer to tailor the sound to your liking.
INCREDIBLE Sound
Jensen offers a full line of amplifiers, high-
power speakers and subwoofers that can
turn your car into audio dynamite. You can
go loud, louder and loudest by selecting
Jensen components from your retailer.
Professional Tip
Professional Tip
Crimp Connections
Purchase crimp connectors and crimping
tool. Connectors are color coded. This
Jensen radio uses BLUE connectors (12-14
gage wire).
1. Strip 1/4 inch (6mm) of insulation from
both wires.
2. Insert into connector.
3. Crimp tightly.
You can make permanent splices (using
butt connectors) or select connectors that
can be removed and reinstalled.
1
2
3
4
Rosin core
solder
Heat
wires
not
solder
Strip Wire
1/2" (12mm)
Soldering
iron
Solder
Splice
321
Strip wire
1/4" (6mm)
KDC9520 _EIN.p65 3/14/00, 1:27 PM3
