Jensen HD1BT - Wiring Diagram and Connections; Critical Wiring Warning

Jensen HD1BT
21 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
HD1BT
4

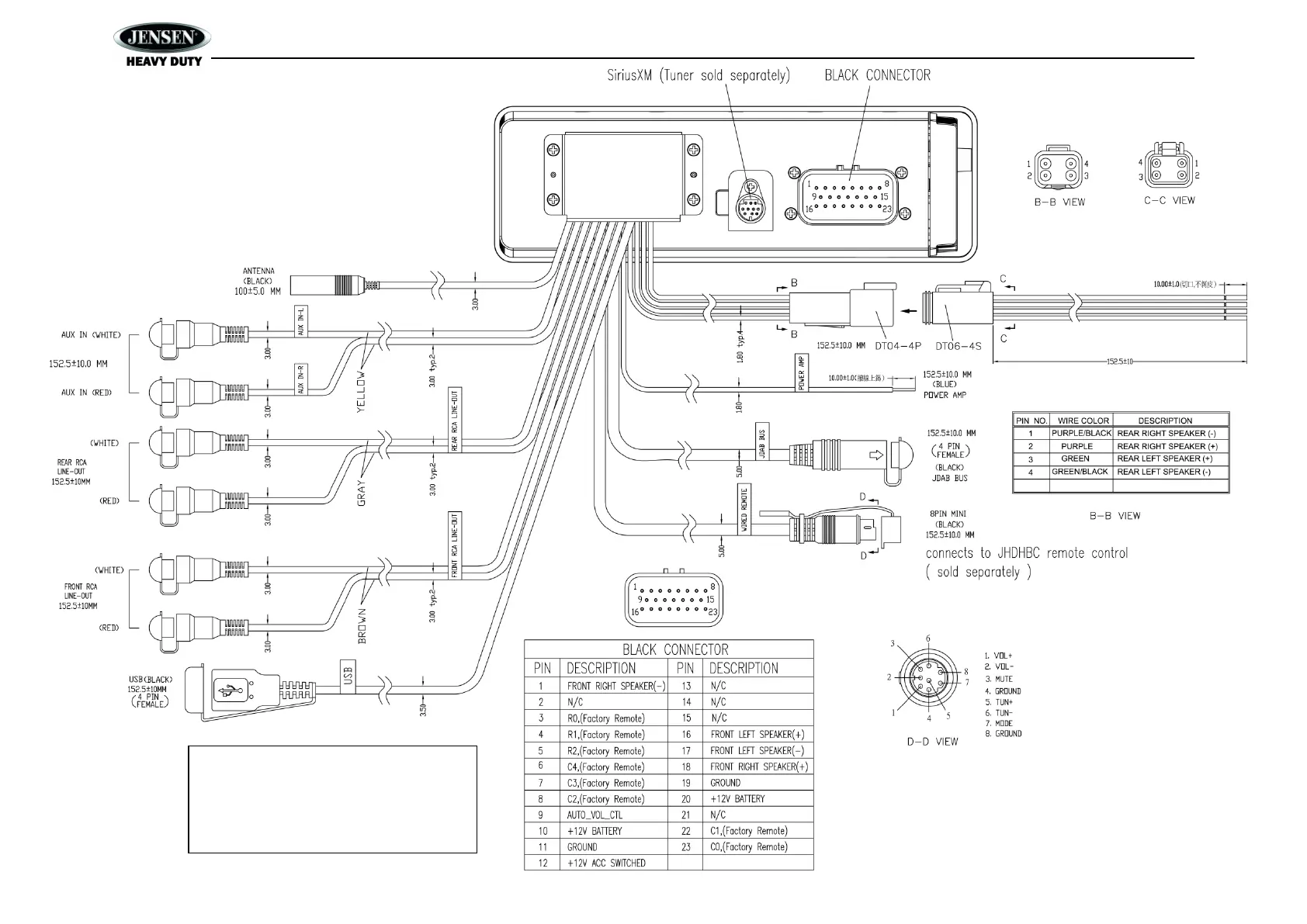

WIRING
WARNING!
Do not connect the +12VDC ACC switched
wire to the battery. This wire MUST be
connected to the Accessory/Ignition wire or
a +12 volts switched power source.
