INTRODUCTION
Packing List
Precautions
Features
Thank you!
Features of Jensen JWM30 mobile audio system include:
Ÿ Digital AM/FM Tuner/30 Preset stations (12 AM/18 FM)
Ÿ Dual Bluetooth Ready with A2DP/AVRCP Streaming Audio
Ÿ Zone C mode individual Bluetooth selectable
Ÿ Electronic Bass, Treble, Balance and Loudness Controls
Ÿ HDMI Input Pass Through Rear HDMI Output with ARC/CEC
Ÿ Time/Alarm Clock
Ÿ Dimmable Backlit LCD Control
Ÿ Rear Audio RCA Input/Outputs
Ÿ USB Playback of MP3 Files
Ÿ 3 Zone / 6 Speaker Output
Ÿ Independent Zone AB or Zone C Volume Control
Ÿ Wireless Remote Control Included
Thank you for choosing a Jensen product. We hope you will find the instructions
in this owner's manual clear and easy to follow. If you take a few minutes to look
through it, you'll learn how to use all the features of your new Jensen receiver for
maximum enjoyment.
Ÿ Use the Proper Power Supply
This product is designed to operate with a 12 volt DC, negative ground
battery system (the standard system in a North American vehicle)
Ÿ Use Authorized Service Centers.
Do not attempt to disassemble or adjust this precision product; contact a
professional for assistance.
Ÿ Avoid Moisture.
To reduce the risk of fire or electric shock, do not expose this equipment to
rain or moisture.
Ÿ Avoid Cleaning Products.
The front of this unit should only be cleaned with a slightly damp cloth. Do
not use cleansers.
Ÿ Use Recommended Accessories.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK AND ANNOYING
INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

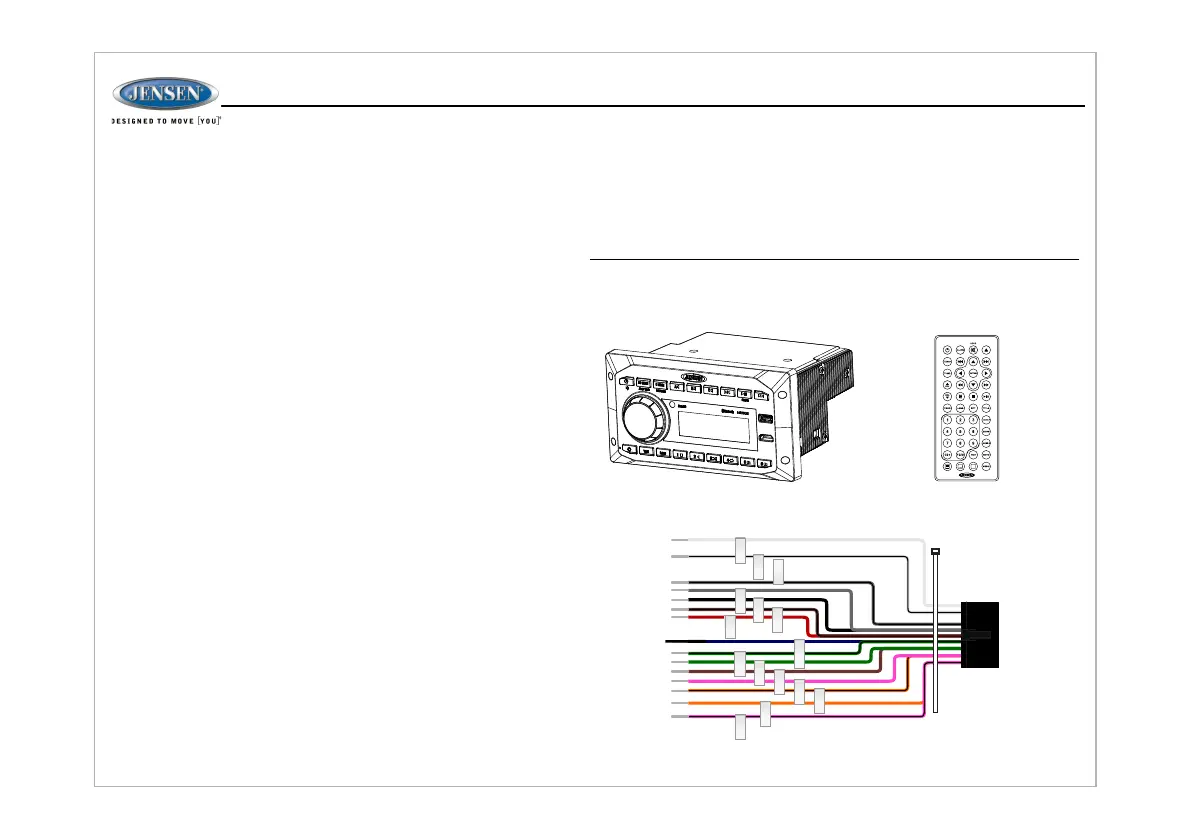

JWM30
20-PIN Speaker Wire
Remote Control
3
JWM30
WHITE
10
9
7
6
16
15
14
4
3
2
1
WHITE/BLACK
GRAY/BLACK
GRAY
BLACK
RED
BLUE
GREEN/BLACK
GREEN
PINK
PINK/BLACK
LEFT(A)
SPEAKER(+)
LEFT(A)
SPEAKER(-)
RIGHT(A)
SPEAKER(-)
RIGHT(A)
SPEAKER(+)
GROUND
+12 VDC
SWITCHED
LEFT(B)
SPEAKER(-)
13
BROWN
11
ORANGE
ORANGE/BLACK
AMP REMOTE
(+12VDC 100MA)
LEFT(C)
SPEAKER(-)
LEFT(C)
SPEAKER(+)
RIGHT(C)
SPEAKER(+)
RIGHT(C)
SPEAKER(-)
LEFT(B)
SPEAKER(+)
RIGHT(B)
SPEAKER(-)
RIGHT(B)
SPEAKER(+)
12
5
BROWN/BLACK
