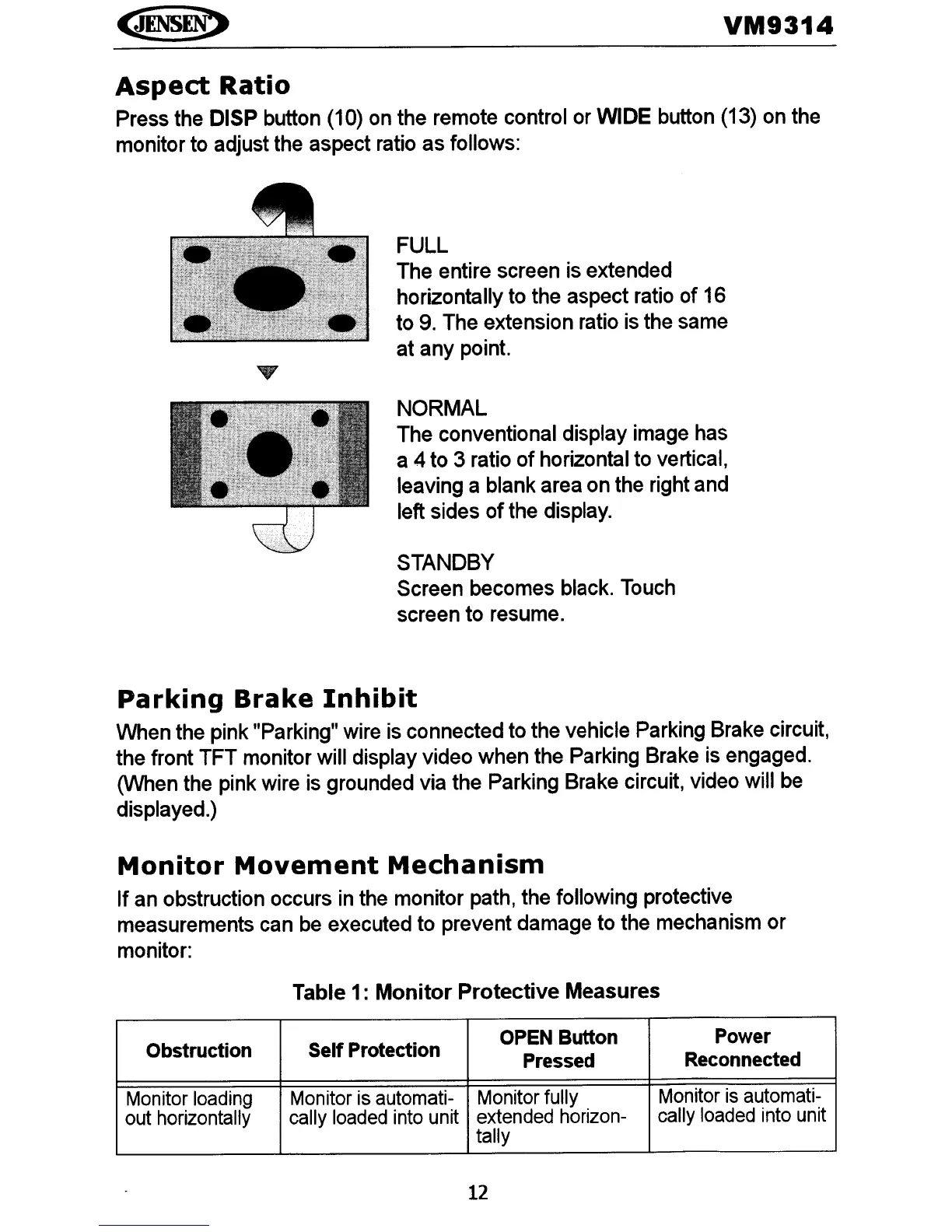

VM9314
Aspect
Ratio
Press the DISP button (10) on the remote control or WIDE button (13) on the
monitor to adjust the aspect ratio as follows:
FULL
The entire screen is extended
horizontally to the aspect ratio
of
16
to 9. The extension ratio is the same
at
any
point.
NORMAL
The conventional display image has
a 4 to 3 ratio
of
horizontal to vertical,
leaving a blank area on the right and
left sides
of
the display.
STANDBY
Screen becomes black. Touch
screen to resume.
Parking
Brake
Inhibit
When the pink "Parking" wire is connected to the vehicle Parking Brake circuit,
the front TFT monitor will display video when the Parking Brake is engaged.
(When the pink wire is grounded via the Parking Brake circuit, video will
be
displayed.)
Monitor
Movement
Mechanism
If
an obstruction occurs in the monitor path, the following protective
measurements can be executed to prevent damage to the mechanism or
monitor:
Table 1: Monitor Protective Measures
Obstruction
SelfProtection
OPEN
Button Power
Pressed Reconnected
Monitor
loading
Monitor
is
automati- Monitor fully
Monitor
is
automati-
out horizontally
cally
loaded
into unit
extended
horizon-
cally
loaded
into
unit
tally
12
