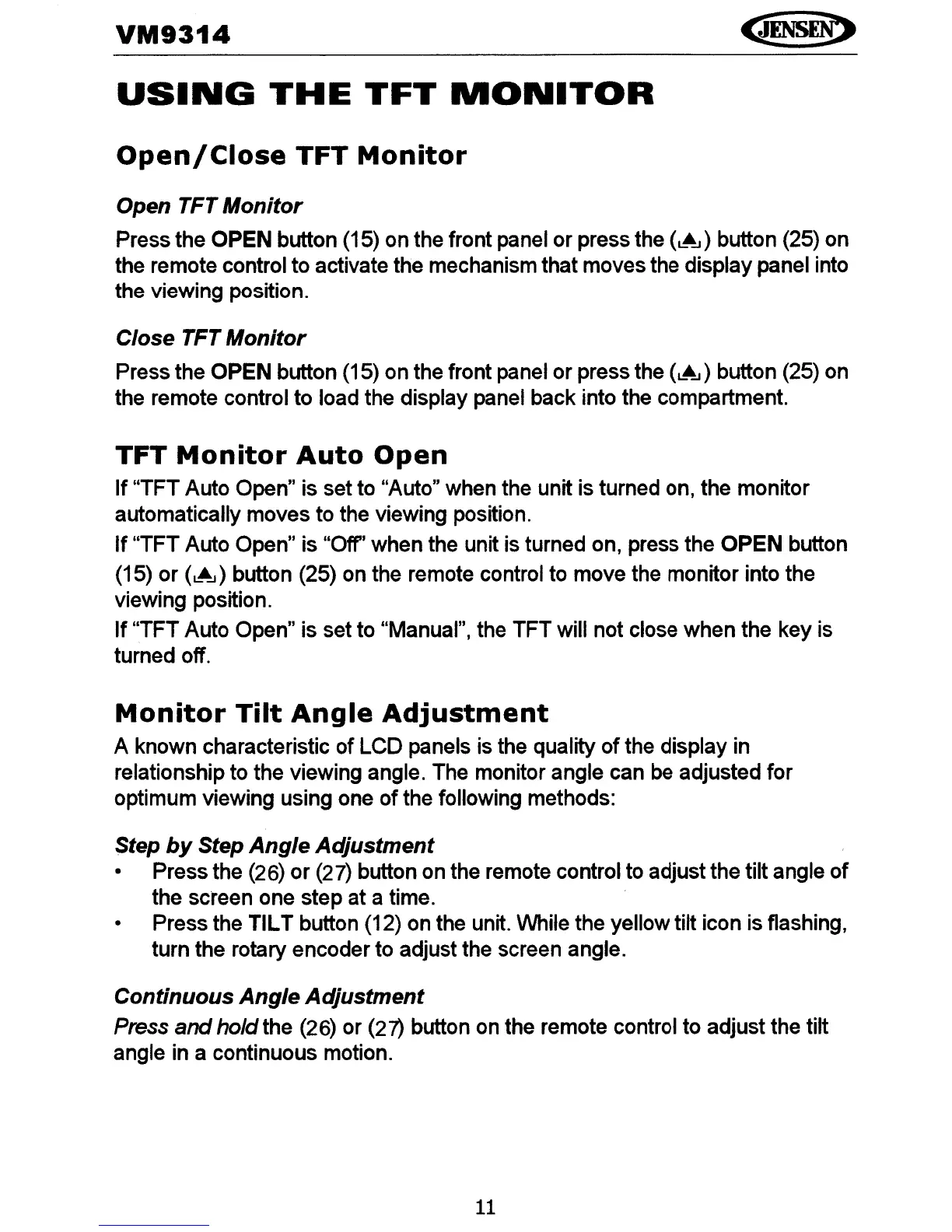

VM9314
USING
THE
TFT
MONITOR
Open/Close
TFT
Monitor
Open TFT
Monitor
Press the OPEN button (15) on the front panel or press the
(tAJ)
button (25) on
the remote control to activate the mechanism that moves the display panel into
the viewing position.
Close TFT
Monitor
Press the OPEN button (15) on the front panel or press the
(tAJ)
button (25) on
the remote control to load the display panel back into the compartment.
TFT
Monitor
Auto
Open
If
"TFT Auto Open" is set to "Auto" when the unit is turned on, the monitor
automatically moves to the viewing position.
If
"TFT Auto Open" is "Off' when the unit is turned on, press the OPEN button
(15)
or
(tAJ)
button (25) on the remote control to move the monitor into the
viewing position.
If
"TFT Auto Open" is set to "Manual", the TFT will not close when the key is
turned off.
Monitor
Tilt
Angle
Adjustment
A known characteristic of LCD panels is the quality
of
the display in
relationship to the viewing angle. The monitor angle can be adjusted for
optimum viewing using one
of
the following methods:
Step
by
Step
Angle
Adjustment
• Press the (26)
or
(27) button on the remote control to adjust the tilt angle
of
the screen one step at a time.
• Press the TILT button (12) on the unit. While the yellow tilt icon is flashing,
turn the rotary encoder to adjust the screen angle.
Continuous
Angle
Adjustment
Press
and
holdthe (26) or (21) button on the remote control to adjust the tilt
angle in a continuous motion.
11
