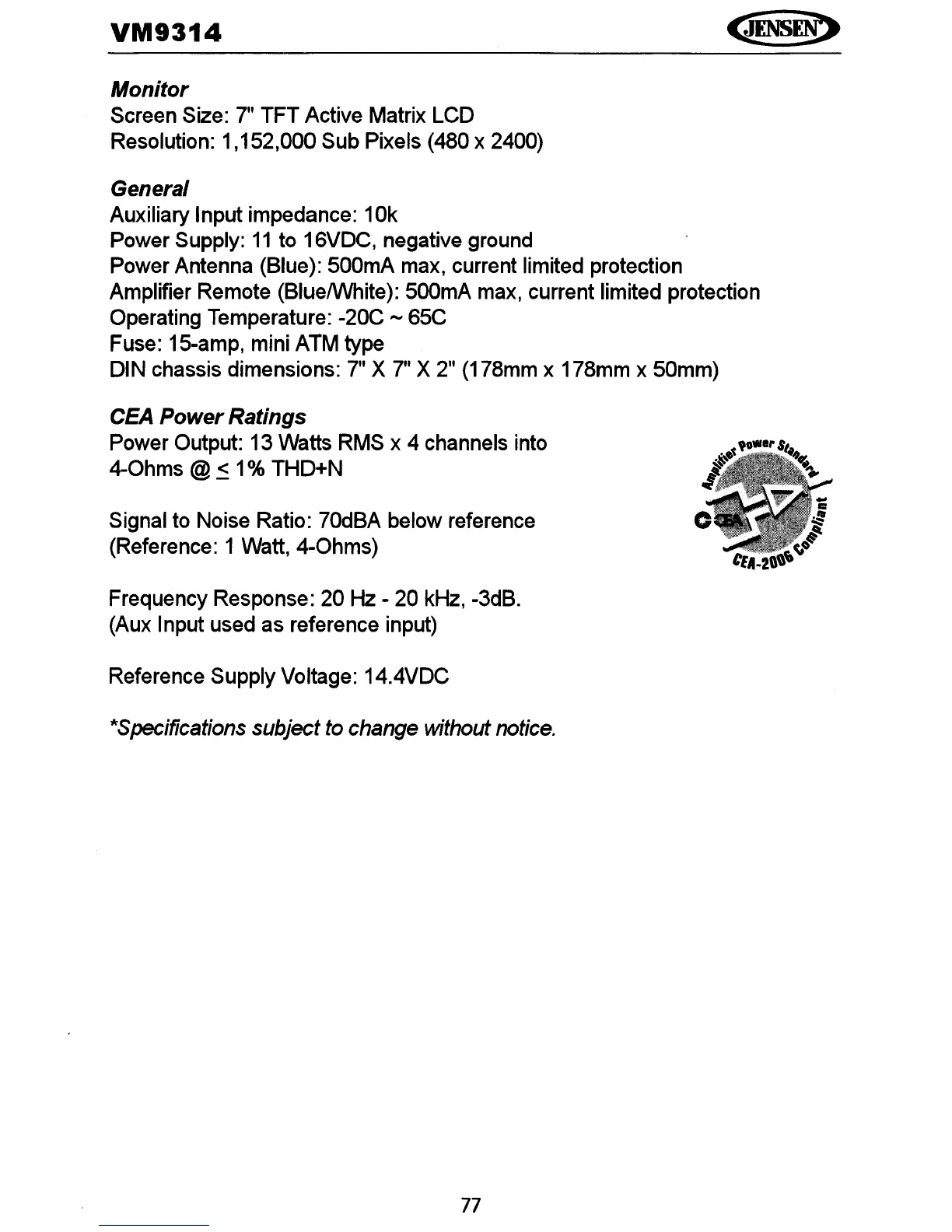

VM9314
Monitor
Screen Size: 7" TFT Active Matrix LCD
Resolution: 1,152,000 Sub Pixels (480 x 2400)
General
Auxiliary Input impedance: 10k
Power Supply:
11
to 16VDC, negative ground
Power Antenna (Blue): 500mA max, current limited protection
Amplifier Remote (BluelWhite): 500mA max, current limited protection
Operating Temperature:
-2OC
....
65C
Fuse: 15-amp, mini ATM type
DIN chassis dimensions: 7" X 7" X 2" (178mm x 178mm x 50mm)
CEA
PowerRatings
Power Output: 13 Watts RMS x 4 channels into
4-0hms
@ < 1% THD+N
Signal to Noise Ratio: 70dBA below reference
(Reference: 1 Watt,
4-0hms)
Frequency Response: 20 Hz - 20 kHz, -3dB.
(Aux Input used as reference input)
Reference Supply Voltage: 14.4VDC
*Specifications subject
to change without notice.
77
