JENSEN XA4200,XA4300

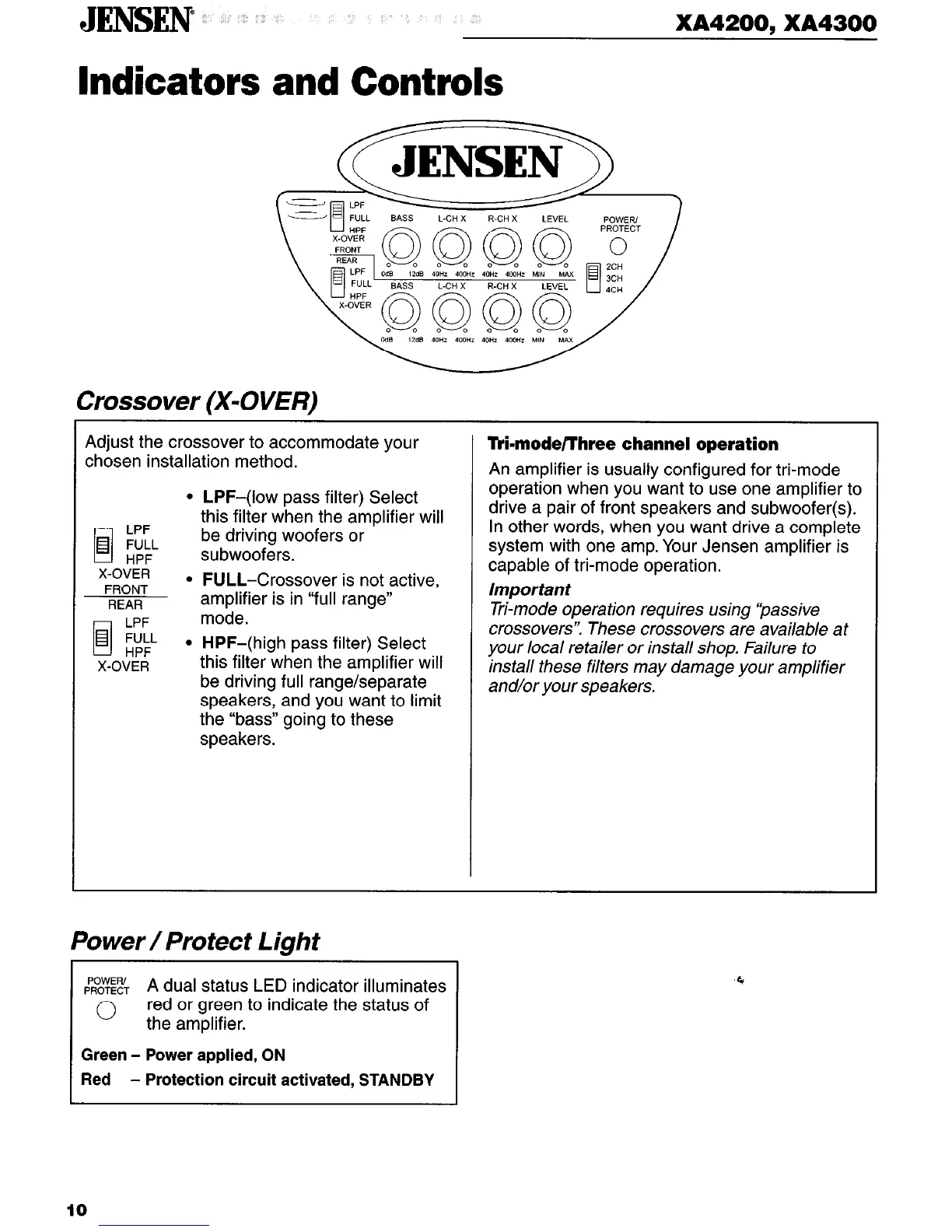

Indicators and Controls
Crossover
(X-OVER)
Adjust the crossover to accommodate your
chosen installation method.
l LPF-(low pass filter) Select
this filter when the amplifier will
0
LPF
H FULL
be driving woofers or
HPF
subwoofers.
X-OVER
FRONT
l FULL-Crossover is not active,
REAR
amplifier is in “full range”
0
LPF
mode.
H FULL
HPF
l HPF-(high pass filter) Select
X-OVER
this filter when the amplifier will
be driving full range/separate
speakers, and you want to limit
the “bass” going to these
speakers.
Tki.modelThree channel operation
An amplifier is usually configured for tri-mode
operation when you want to use one amplifier to
drive a pair of front speakers and subwoofer(
In other words, when you want drive a complete
system with one amp. Your Jensen amplifier is
capable of tri-mode operation.
Important
Tri-mode operation requires using ‘passive
crossovers”. These crossovers are available at
your local retailer or install shop. Failure to
install these filters may damage your amplifier
and/or your speakers.
Power/Protect Light
iEg$ A dual status LED indicator illuminates
0
red or green to indicate the status of
the amplifier.
Green - Power applied, ON
Red - Protection circuit activated, STANDBY
