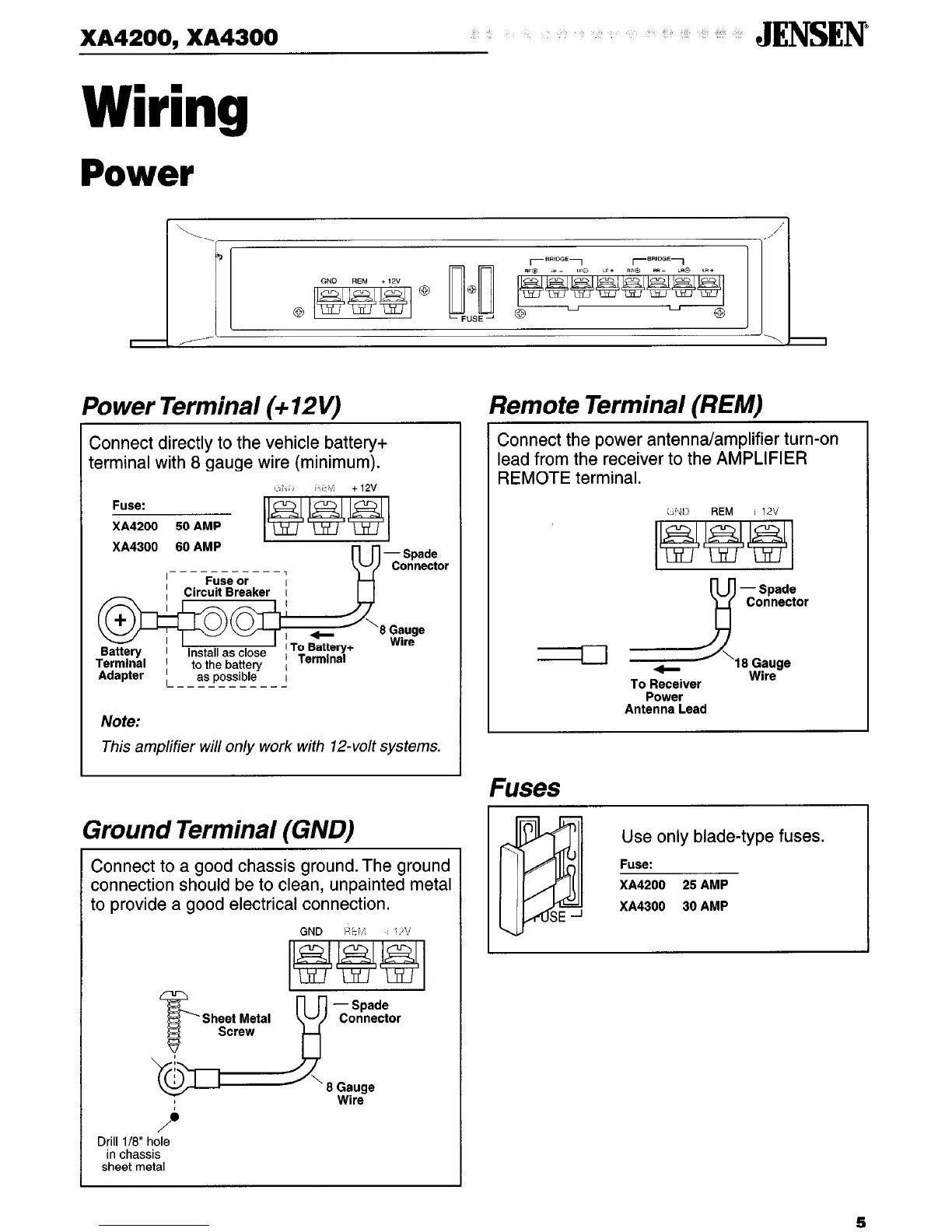

XA4200,XA4300
JENSEN
Wiring
Power
Power Terminal I+ 12W
Remote Terminal (REM)
Connect directly to the vehicle battery+
terminal with 8 gauge wire (minimum).
liir:, I>/ 84
+12v
Fuse:
XA4200 50 AMP
Note:
This amplifier will only work with 1Bvolt systems.
Ground Terminal (GND)
Connect to a good chassis ground. The ground
connection should be to clean, unpainted metal
to provide a good electrical connection.
W
- Spade
Sheet Metal Connector
Screw
Drill l/8” hdle
in chassis
sheet metal
Connect the power antenna/amplifier turn-on
lead from the receiver to the AMPLIFIER
REMOTE terminal.
W
-Spade
Connector
a 413Gauge
To Receiver
Wire
Power
Antenna Lead
Fuses
Use only blade-type fuses.
XA4200 25 AMP
XA4300 30 AMP
5
To Next Page
