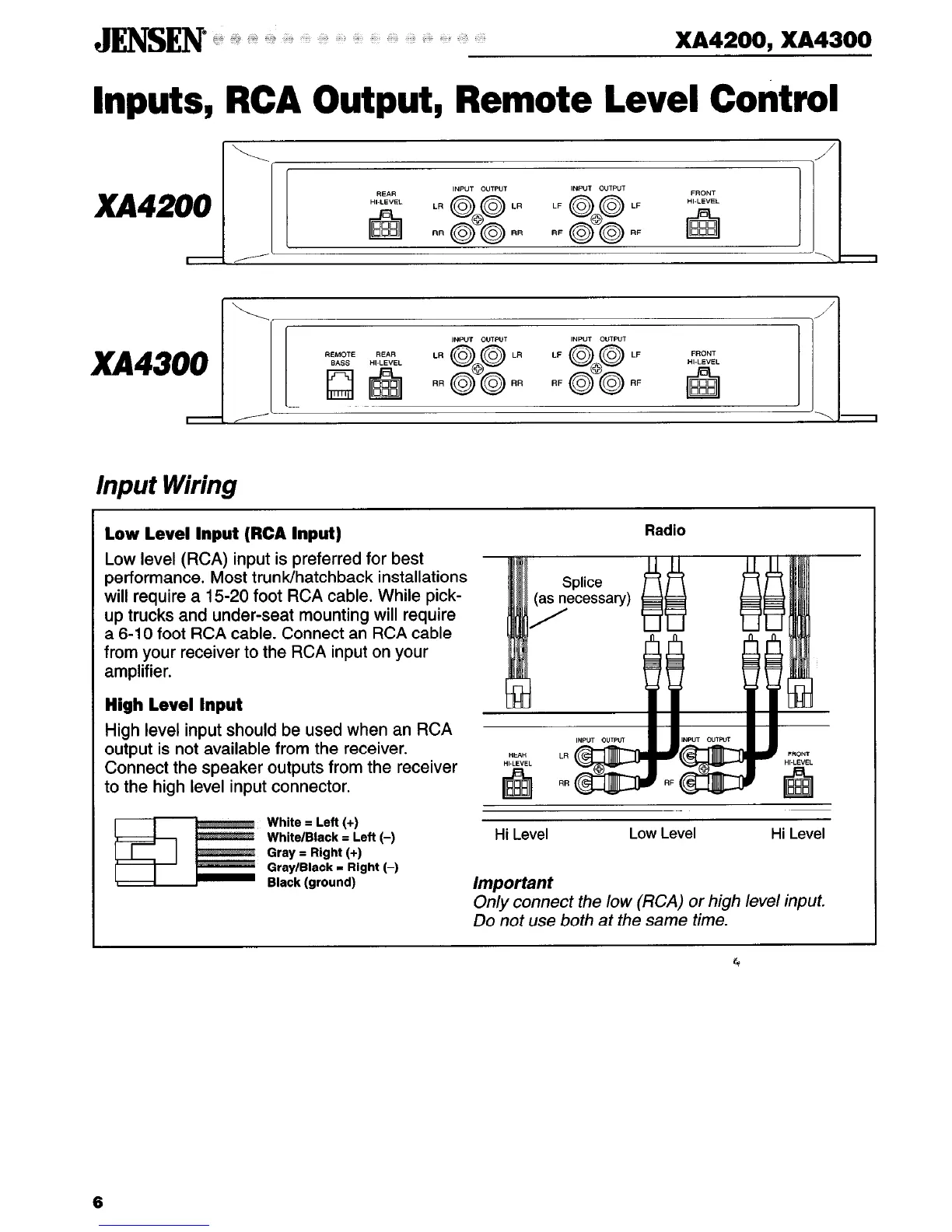

Jensen XA4200 - Inputs, RCA Output, Remote Level Control; Input Wiring

JENSEN" %,, : , ,; i
I
/
XA4200, XA4300
Inputs, RCA Output, Remote Level Cotitrol
./
lNP”T OUTPUT
X44200
REAR
INPUT OUTPUT
HI-LEYEL
fl
18881
LR @I@@ IA3
RR @ @ RR
LF @I@@ LF
FRONT
HI-LEVEL
RF @ @ RF
a
&
I/
‘\ 7
Input Wiring
Low Level Input (RCA Input)
Low level (RCA) input is preferred for best
performance. Most trunk/hatchback installations
will require a 15-20 foot RCA cable. While pick-
up trucks and under-seat mounting will require
a 6-l 0 foot RCA cable. Connect an RCA cable
from your receiver to the RCA input on your
amplifier.
Radio
High Level Input
High level input should be used when an RCA
output is not available from the receiver.
Connect the speaker outputs from the receiver
to the high level input connector.
White = Left (+)
White/Black = Left (-)
Gray = Right (+)
Gray/Black = Right (-)
Black (ground)
Hi Level
Low Level
Hi Level
lmportan t
Only connect the low (RCA) or high level input.
Do not use both at the same time.
c
