F-22
208 to 240 volts, single or three phase (no neutral)
, 60 hz. The model on three phase can not be
connected or converted to single phase. The

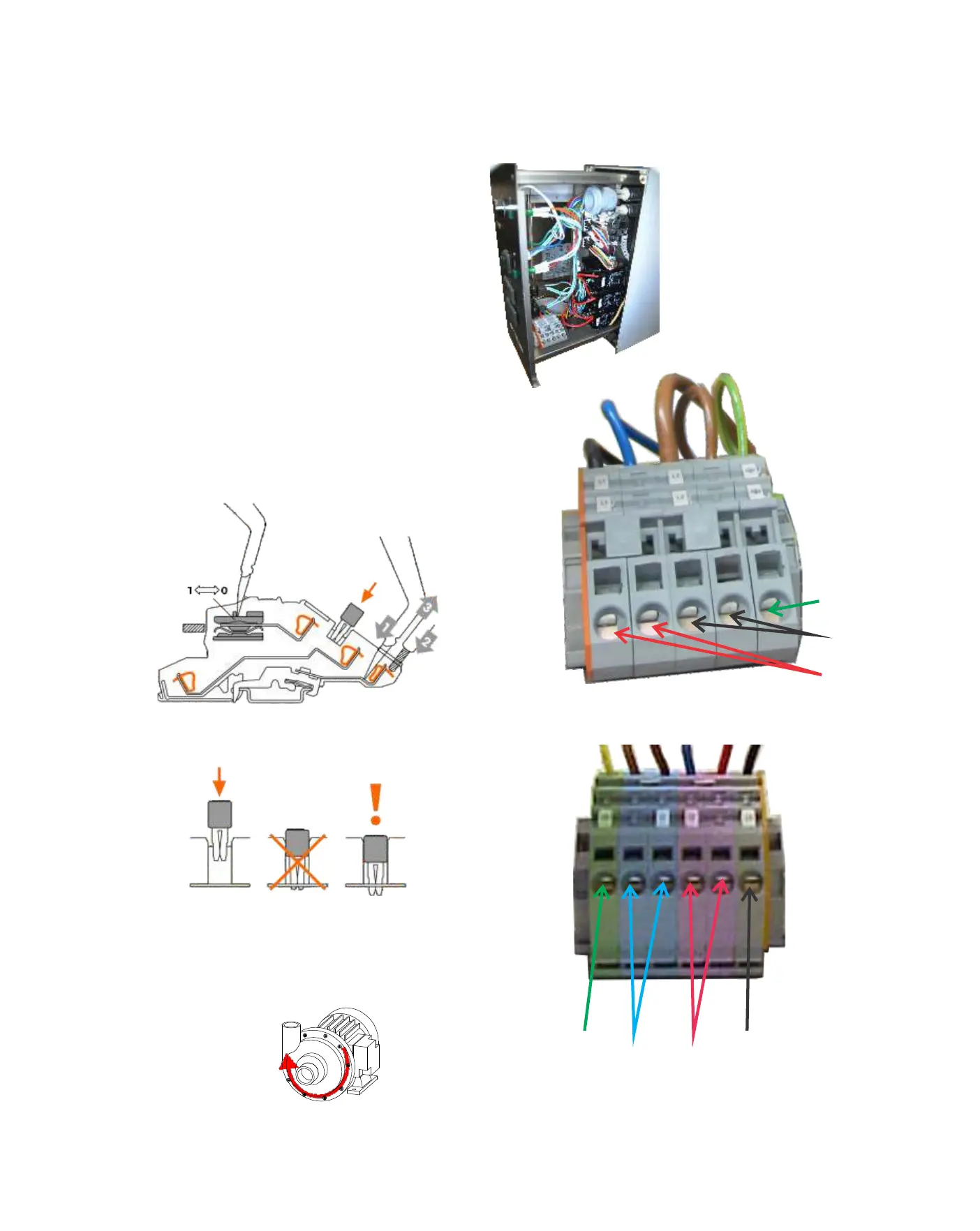

electrical connection is made on the terminal block
located in the control panel, to the right of the
machine.
To connect a wire in the electrical block, a small
flat screw-driver will be inserted in the square hole.
With the screw-driver, you will push down the
internal tab, allowing to insert the bare portion of
the wire‚. Once the wire inserted, ƒyou will pull
out the screw-driver. To make sure the wire is
inserted properly, you will pull gently on the wire.
ELECTRICAL (Cont.)
G
L1
L2
G L1 L2 L3
F-22 1
F-22 3
IMPORTANT!
Verify motor rotation on 3 phase unit.
