12
DRAIN CONNECTION
- If the unit uses a gravity drain, it has to drain in an open floor drain.
- The drain hose to be used can not be allowed to collapsed.
- Do not reduce more than one pipe size.
- Follow local codes for proper waste disposal.
- Allow for easy removal for cleaning and servicing. Use flexible hose. Hard plumbing the unit is
strongly discouraged, and can result in extra expenses for the user.
- If the drain is more than a few feet from the machine, it is recommended to have a proper down
flow angle. For unit equipped with a drain pump, the hose should come up behind the unit and
than flow down.
F-14
F-16DP
F-18DP

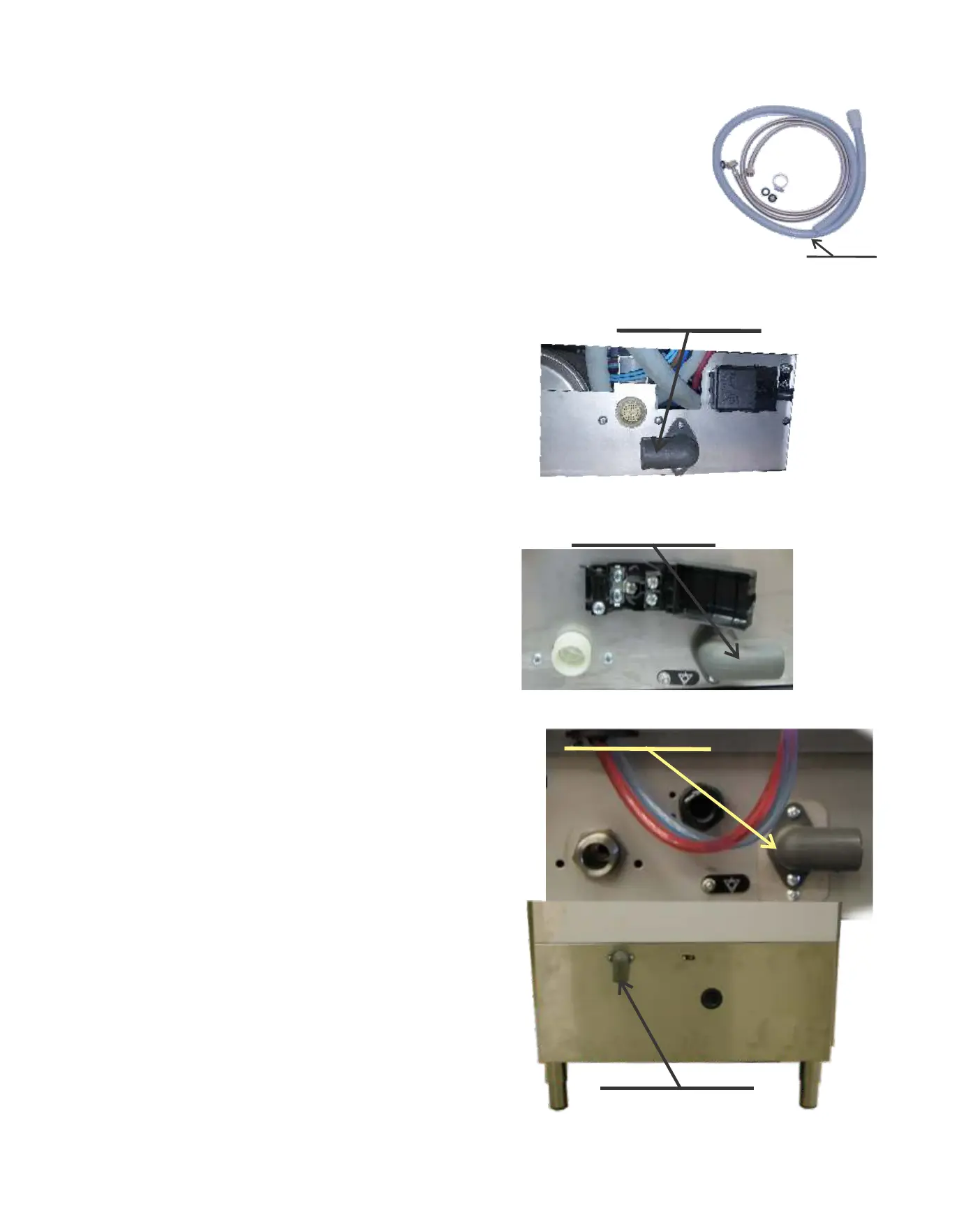

The drain connection is 1 inch (27mm). A flexible drain
hose is supplied with this unit. This unit is gravity
drained. The machine must be higher than the drain.
The drain connection is located at the rear of the
machine, behind the stainless steel panel. The hose
should come out the left side.
The drain connection is 1 inch (27mm). A flexible
drain hose is supplied with this unit. This unit is
equipped with a drain pump. The drain connection is
located at the rear of the machine. The hose should
go to the right side of the machine.
The drain connection is 1 inch (27mm). A flexible drain
hose is supplied with this unit. This unit is equipped
with a drain pump. The drain connection is located at
the rear of the machine. The hose should go to the
right side of the machine.
Water Out
Water Out
Water Out
F-22
The drain connection is 1¼ inch (33 mm) A
flexible fill hose is supplied with this unit. This unit
is gravity drained. The drain connection should be
lower than the output of the machine and going to
an open floor drain. The drain connection is
located outside of the machine, at the rear.
Water Out
Drain Hose
To Next Page
