ELECTRICAL
- Referring to the local electrical code, wires must be large enough to carry the electrical load used by the dishwasher. The
electrical breaker must be large enough to protect those wires. Normally the breaker size or fuse size should
not exceed %110 of total current load (ex.: 23 amps requires max fuse size of 25 amps).
- All units must be grounded.
- Except for the F14(110 volts), all the high-temp dishwashers do NOT require a neutral.
- For tri-phase model, three live wire are required and the rotation of the pump(s) must be verified.
-Only a licensed electrician can make sure the unit is installed with the proper set-up, according to local codes.
F-14
F-16DP
F-18DP

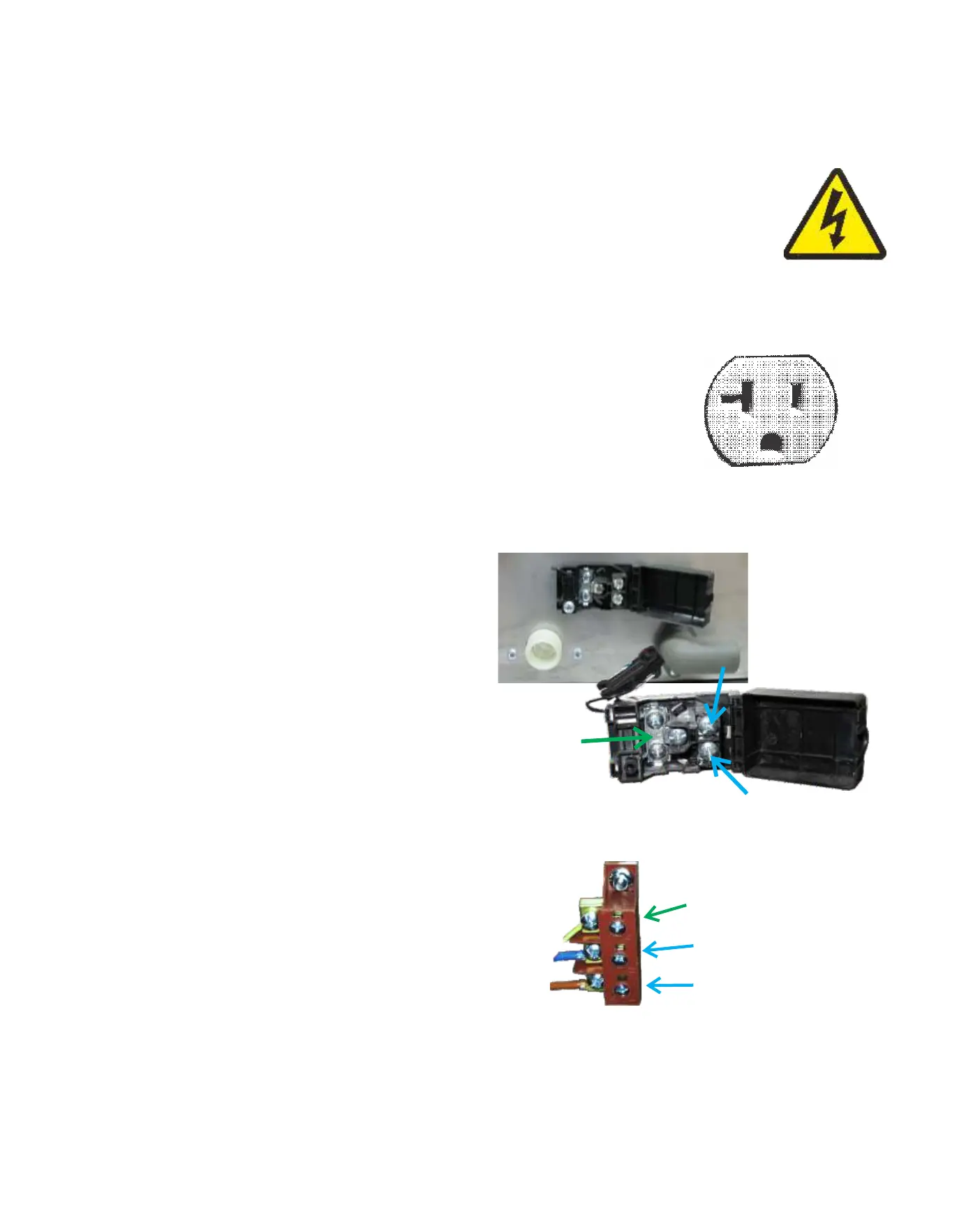

120 volts, 60hz, 13.5 amps
(power cord with NEMA 5-20 plug included)
The Outlet (5-20) should be a maximum of 4 feet (1,2 m) from the
machine on a dedicated circuit.
208 to 240 volts, single phase (no neutral) 60hz,
12.9 amps. The terminal block connector is
located behind the unit next to the water inlet
valve and the drain connection
L1
L2
G
208 to 240 volts, single phase (no neutral) 60hz,
23.5 amps. The electrical terminal block is located
inside the unit, in the back, on the right side
(viewed from the front), behind the rear panel.
Both top and rear panels must be removed.
Gnd
L1
L2
