10
5. Apron - Oil must be up to indicator mark in
oil sight glass (A, Fig. 8). Top off with Mobil
DTE® Oil Heavy Medium. Fill by removing
oil plug (C, Fig. 8). After the first three
months of operation, drain oil completely
(drain is on the bottom of the apron) and
refill with Mobil DTE® Oil Heavy Medium, at
a level equivalent to the indicator line. Then,
change oil annually.
6. Feed Selector - Lubricate ball oiler (B, Fig.
8) once daily with Mobil DTE® Oil Heavy
Medium.
7. Carriage - Lubricate two ball oilers (D, Fig.
8) once daily with Mobil DTE® Oil Heavy
Medium.
8. Thread Dial Indicator - Lubricate ball oiler
(E, Fig. 8) once daily with Mobil DTE® Oil
Heavy Medium.
9. Compound Rest - Lubricate three ball
oilers (F, Fig. 9) once daily with Mobil DTE®
Oil Heavy Medium.
10. Cross Slide - lubricate four ball oilers (G,
Fig. 9) once daily with Mobil DTE® Oil
Heavy Medium.
11. Longitudinal Feed Handwheel - Lubricate
ball oiler (H, Fig. 9) once daily with Mobil
DTE® Oil Heavy Medium.
12. Tailstock - Lubricate three ball oilers (I, Fig.
10) once daily with Mobil DTE® Oil Heavy
Medium.
13. Leadscrew/Feed Rod - Lubricate three ball
oilers once daily (J, Fig. 10) with Mobil
DTE® Oil Heavy Medium.

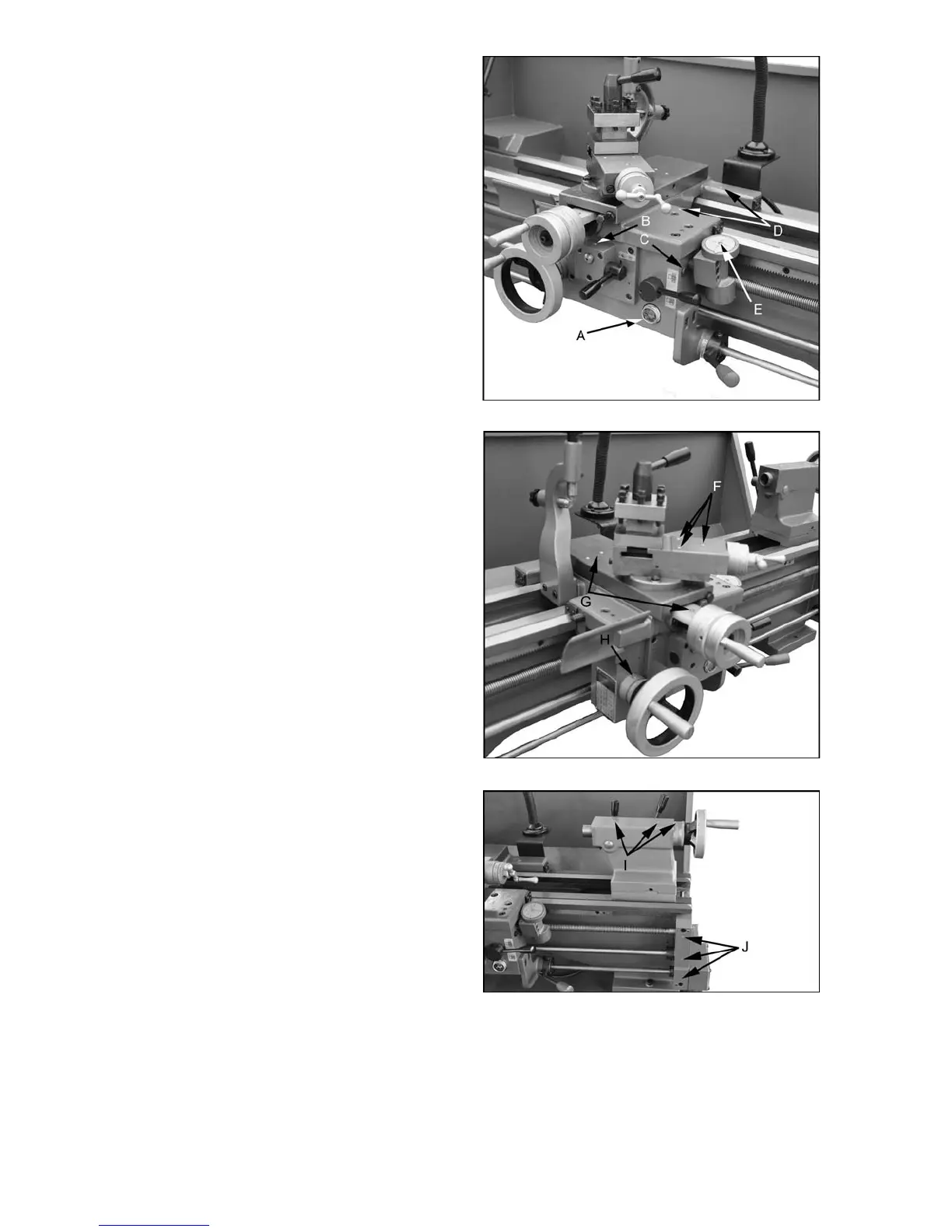

Figure 8
Figure 9
Figure 10
