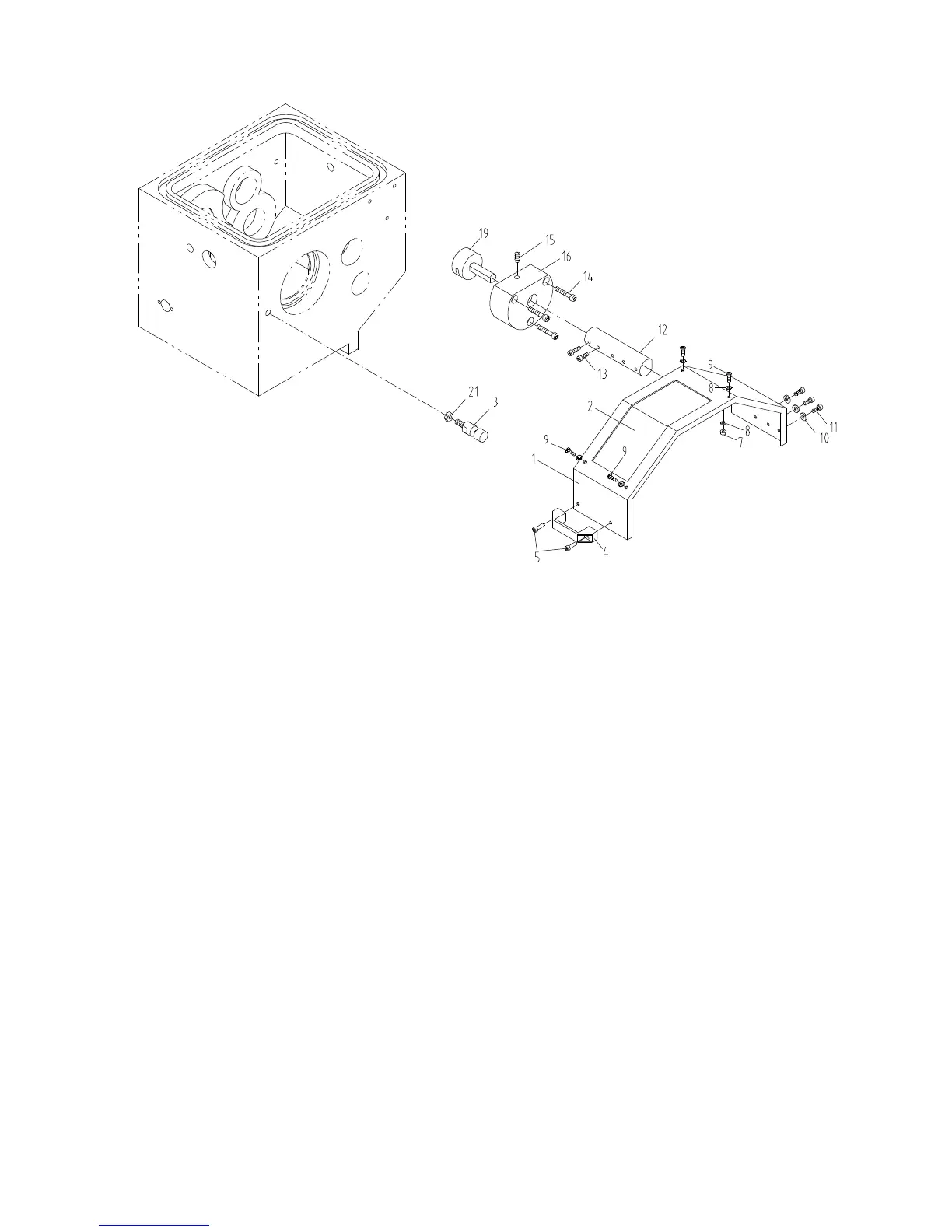

22.1 GHB-1340A/1440A Chuck Guard Assembly – Exploded View
47
22.2 GHB-1340A/1440A Chuck Guard Assembly – Parts List
Index Part
No No Description Size Qty
................ GHB-CGA ................. Chuck Guard Assembly（index #1 thru 21） .......... ...................................... 1
1 .............. GHB1340A-19701EG Protection Guard...................................................... ...................................... 1
2 ............ GHB1340A-19501E ... Protection Guard Visual Glass ................................. ...................................... 1
3 .............. ZX-19704E ................ Fixing Rod ............................................................... ...................................... 1
4 ............. SG-04 ........................ Handle（serial #16013258A and lower）HY32-1 ... ...................................... 1
................ A90 ............................ Handle（serial #16043259A and higher） .............. ...................................... 1
5 .............. TS-1503031 .............. Hex Socket Cap Screw ............................................ M6x12 ........................... 2
7 .............. TS-1540021 .............. Hex Thin Nut ............................................................ M4 ................................. 4
8 .............. TS-1550031 .............. Plain Washer ........................................................... 4 mm ............................. 8
9 .............. TS-1532042 .............. Cross Recessed Pan Head Screws ......................... M4x12 ........................... 4
10 ............ TS-1550031 .............. Plain Washer ........................................................... 6 mm ............................. 3
11 ............ TS-1534032 .............. Cross Recessed Pan Head Screws ......................... M6x10 ........................... 3
12 ............ GHB1340A-19703E ... Rest Bar .................................................................. ...................................... 1
13 ............ TS-1524021 .............. Hex Socket Set Screw ............................................ M8x10 ........................... 2
14 ............ TS-1503071 .............. Hex Socket Cap Screw ............................................ M6x30 ........................... 3
15 ............ TS-1524041 .............. Hex Socket Set Screw ............................................. M8x16 ........................... 1
16 ............ GHB1340A19704 ...... Switch Box ............................................................... ...................................... 1
19 ............ GHB1340A19702E .... Shaf t ........................................................................ ...................................... 1
21 ............ TS-1540061 .............. Hex Nut .................................................................... M8 ................................. 1
