Jet BDB-1340A User Manual

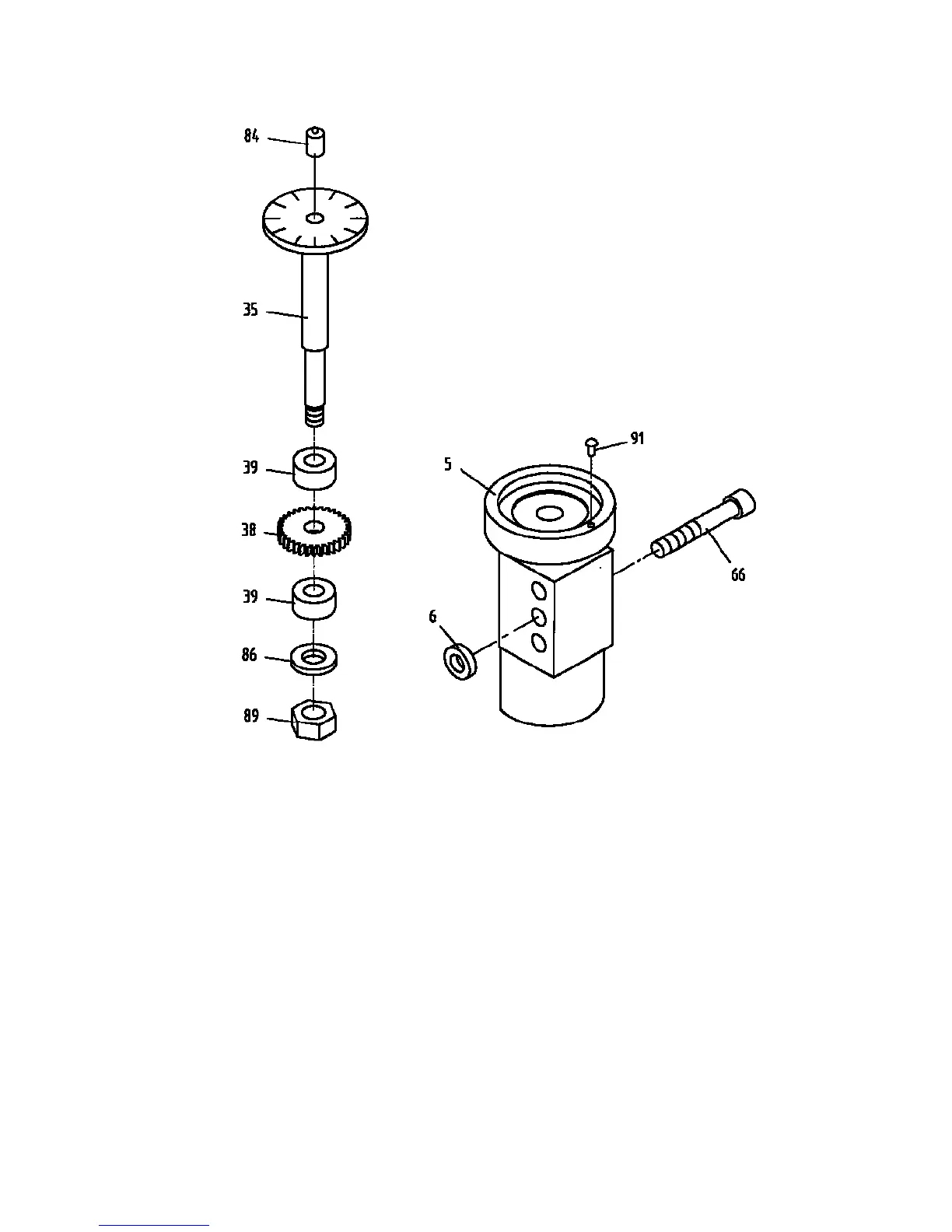

14.1 Apron Assembly III – Exploded View
34
14.2 Apron Assembly III – Parts List
Index Part
No No Description Size Qty
5
.............. Z06105G ................... Threading Dial Body ................................................ ..................................... 1
6 .............. 06206 ........................ Washer .................................................................... ...................................... 1
35
............ 06233 ........................ Threading Dial Shaft ................................................ ...................................... 1
38
............ 06236 ........................ Gear ........................................................................ 1m32T........................... 1
39 ............ 06237 ........................ Spacer ..................................................................... ...................................... 2
66 ............ TS-1504101 .............. Hex Socket Cap Screw ........................................... M8x50 ........................... 1
84
............ GHB1340-A84........... Oiler ......................................................................... 8 .................................... 1
86 ............ GHB1340-A86........... Lock Washer ........................................................... M8 ................................. 1
89
............ TS-1540061 .............. Hex Nut .................................................................... M8 ................................. 1
91
............ GHB1340-A91........... Rivet......................................................................... 3x8 ................................ 1
