Jet BDB-1340A User Manual

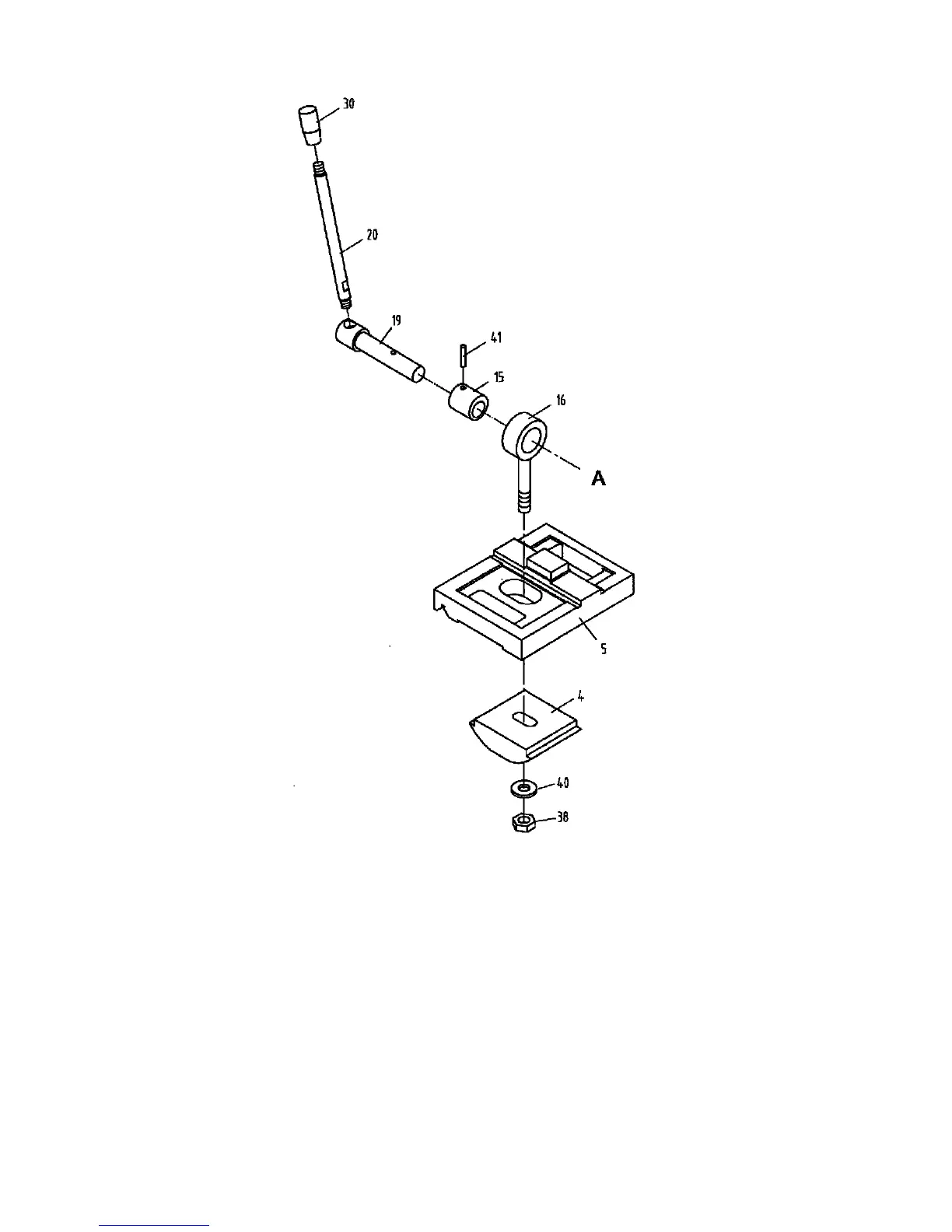

19.1 Tailstock Assembly II – Exploded View
43
19.2 Tailstock Assembly II – Parts List
Index Part
No No Description Size Qty
4 .............. 08104 ........................ Clamp Plate ............................................................. ...................................... 1
5 .............. 08105G ..................... Base (For GHB-1340A/BDB-1340A) ....................... ...................................... 1
................ C0636A-03104G ....... Base (For GHB-1440A) ........................................... ...................................... 1
15
............ 08211 ........................ Collar ....................................................................... ...................................... 1
16
............ 08212 ........................ Screw (For GHB-1340A/BDB-1340A) ..................... ...................................... 1
................ C0636A-03707 .......... Screw (For GHB-1440A) ......................................... ...................................... 1
19 ............ 08213 ........................ Shaft ........................................................................ ...................................... 1
20
............ 08214 ........................ Lever ....................................................................... ...................................... 1
30
............ 07508 ........................ Knob ........................................................................ ...................................... 1
38 ............ TS-1540081 .............. Hex Nut .................................................................... M12 ............................... 1
40
............ TS-2360121 .............. Washer .................................................................... 12 mm ........................... 1
41
............ GHB1340-41TS......... Pin ........................................................................... 5x25 .............................. 1
