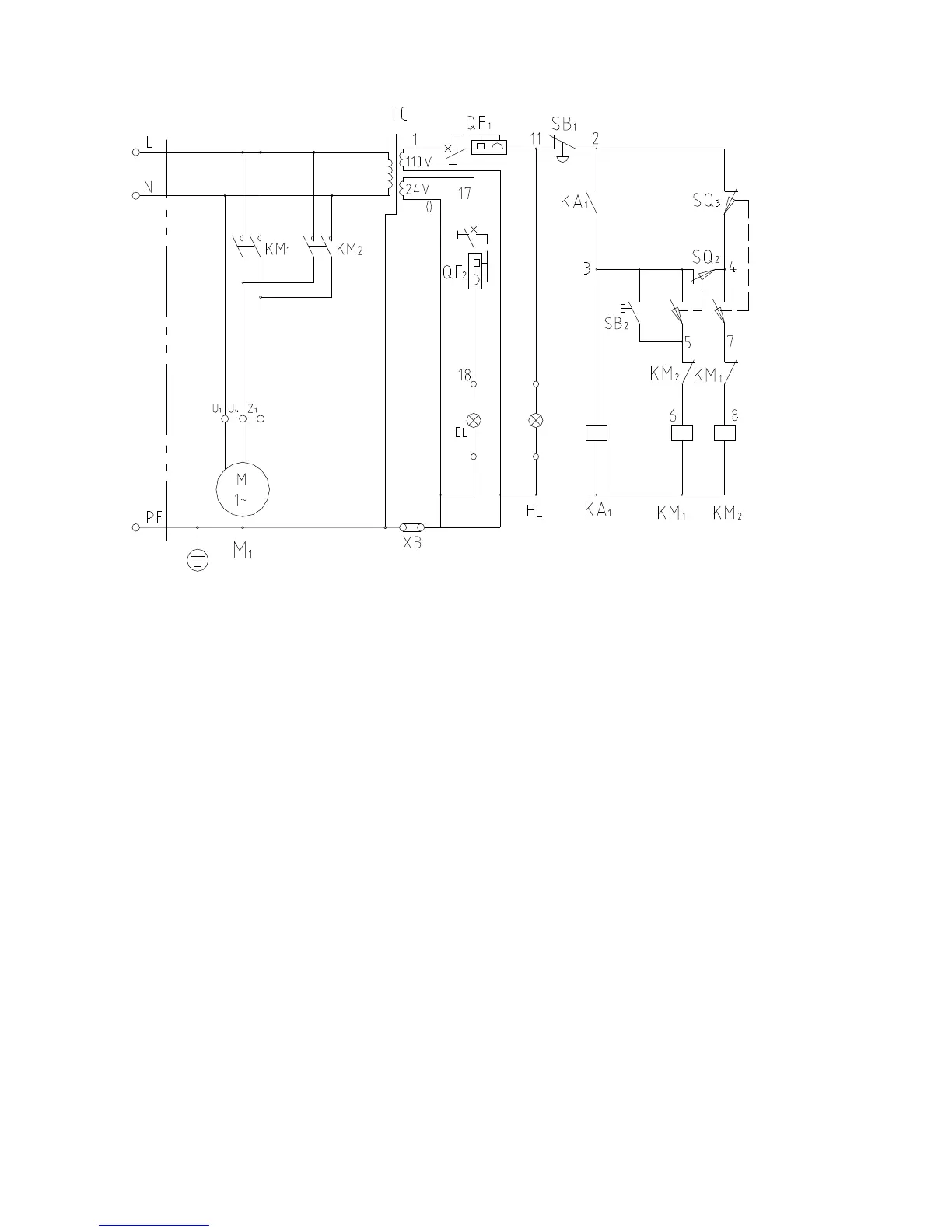

25.1 Electrical Schematic – GHB-1340A/1440A

25.2 Electrical Schematic Parts List – GHB-1340A/1440A

Index Part

No No Description Size Qty

1 ·········· GHB-SB1 ··············· Emergency Stop ···························· ZB2-BS54C ······················· 1

2 ·········· GHB-SB2 ··············· Jog Button ···································· XB2-EA131 ························ 1

3 ·········· GHB-HL ················· Power Indicator Light ······················ XB7-EVF3LC ····················· 1

4 ·········· GHB-KA1 ··············· Relay ·········································· HH52P ······························ 1

5 ·········· GHB-KM1 ··············· A.C.Contactor ······························· 3TB43······························· 1

6 ·········· GHB-KM2 ··············· A.C.Contactor ······························· 3TB43······························· 1

7 ·········· GHB-TC ················· Control Transformer ······················· JBK5-100VATH ·················· 1

8 ·········· GHB-SQ2 ··············· Stroke Switch ································ LXW5-11D1 ······················· 1

9 ·········· GHB-SQ3 ··············· Stroke Switch ································ LXW5-11D1 ······················· 1

10 ········· GHB-QF1 ··············· Breaker ······································· DZ47-63 ···························· 1

11 ········· GHB-QF2 ··············· Breaker ······································· DZ47-63 ···························· 1

12 ········· GHB-EL ················· Machine lamp ······························· JC34A ······························ 1
