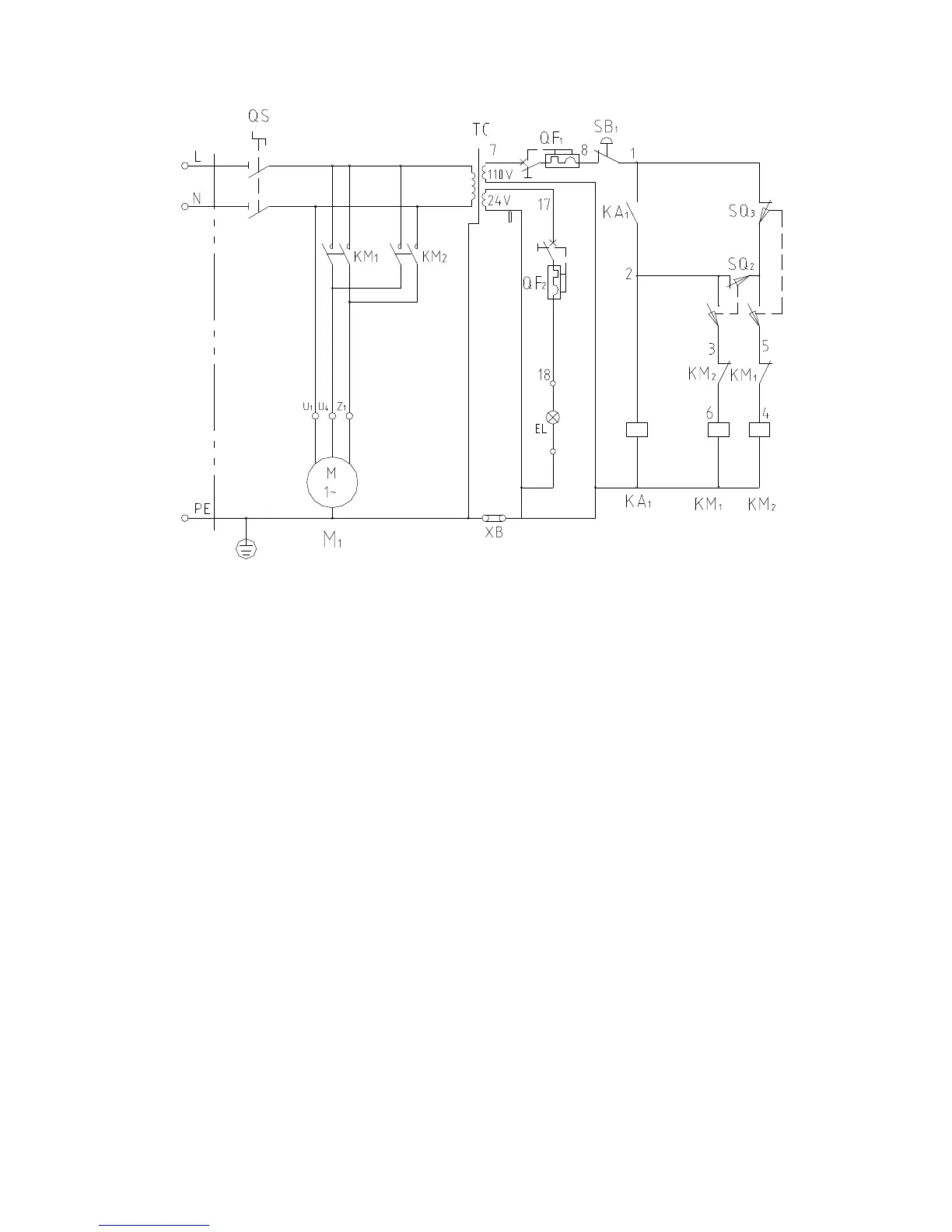

26.1 Electrical Schematic – BDB-1340A
50
26.2 Electrical Schematic Parts List – BDB-1340A
Index Part
No No Description Size Qty
1 ·········· BDB-SB1 ················ Emergency Stop ···························· ZB2-BS54C ······················· 1
2 ·········· BDB-KA1 ················ Relay ·········································· JZC3-40d ·························· 1
3 ·········· BDB-KM1 ··············· A.C.Contactor ······························· GSC1-D2501 ····················· 1
4 ·········· BDB -KM2 ·············· A.C.Contactor ······························· GSC1-D2501 ····················· 1
5 ·········· BDB-QS ················· Master switch ································ HZ5-20/4 ··························· 1
7 ·········· BDB-TC ················· Control Transformer ······················· JBK5-100VATH ·················· 1
8 ·········· BDB-SQ2 ··············· Stroke Switch ································ LXW5-11D1 ······················· 1
9 ·········· BDB-SQ3 ··············· Stroke Switch ································ LXW5-11D1 ······················· 1
10 ········· BDB-QF1················ Breaker ······································· DZ47-63 ···························· 1
11 ········· BDB-QF2················ Breaker ······································· DZ47-63 ···························· 1
12 ········· BDB-EL ·················· Machine lamp ······························· JC34A ······························ 1
